FOR KIT 30160

WARNING:

To prevent tilting head

detachment and or

separation of hitch you must

make sure that the anchor

assemblies are properly

installed and pinned, and

the spring retaining clips are

properly installed onto the

½” pull pins before towing.

The spring retaining clip can

easily be seen through the

site holes in the top of the

head.

Figure 14 : Pin and Clip (Skid Plate cut away view)

Grease Fitting

Lubricate Skid Plate

(With No Lubrication Plate)

Lubricate Jaw

Retaining

Clip

Pull Pin

Site Holes (2)

WARNING:

Tilting 5

Wheel head can

crush and cut. Keep hands and

fingers clear from this area at

all times (including

placement/removal of head).

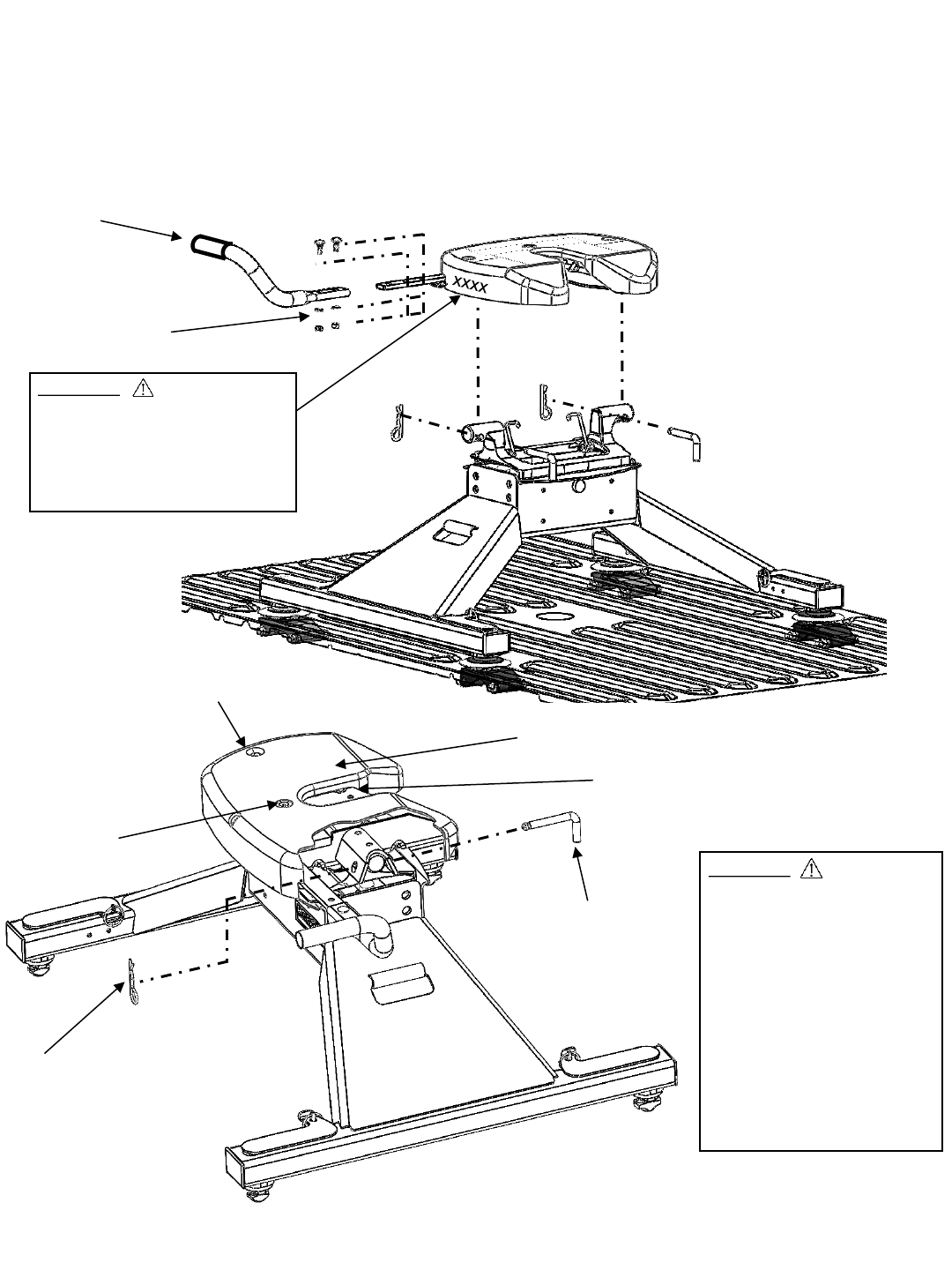

Figure 13 : Head Placement

3/8 Carriage bolt (2)

3/8 Lock Washer (2)

3/8 Nut (2)

Grip

9. Place and pin head onto center section (see Figures 13/14). Keep hands clear of ear placement while placing/removing

head onto/off hitch base as noted on head labels. Head will tilt rearward with proper torsion spring installation (Step 10).

10. Add head handle and handle carriage bolts as shown in Figure 13.

11. Slide handle grip over handle tube (using liquid soap as a lubricant will ease installation).

12. Lubricate jaw and skid plate (If no lubrication plate is being used) with automotive type chassis grease (see Figure 14). The

jaw pin comes greased from the factory. To insure smooth jaw operation, grease should be added every 6 months to

grease fitting on top of head (see Figure 14). Refer to the Lubrication section in this manual.
