Product Manual

Item Description Qty. Part Number
1 Nut 1/4" 2 261650-1
3 Spool/Drive Spring 1 600860
4 U-Bolt 1/4" and 3/8" Hose 1 *
5 Latch Pawl 1 S600823
6 Guide Arm 1 S600825
7 Nut 1/2" 1 S76-108
8 Hose Bumper 1/4" Hose 1 A1-HR1004-A
9 Hose 1/4" ID x 50ft Low Pres. 1 601001-50
10 Nut 5/16" 4 **
11 Shaft & Bracket Assembly 1 602263
12 Spacing Washer 1 *
13 Retaining Ring 1 *
14 Swivel 1 602330
Low Pressure 1/4” hose model - 50 foot long hose (RT450-OLPSM)

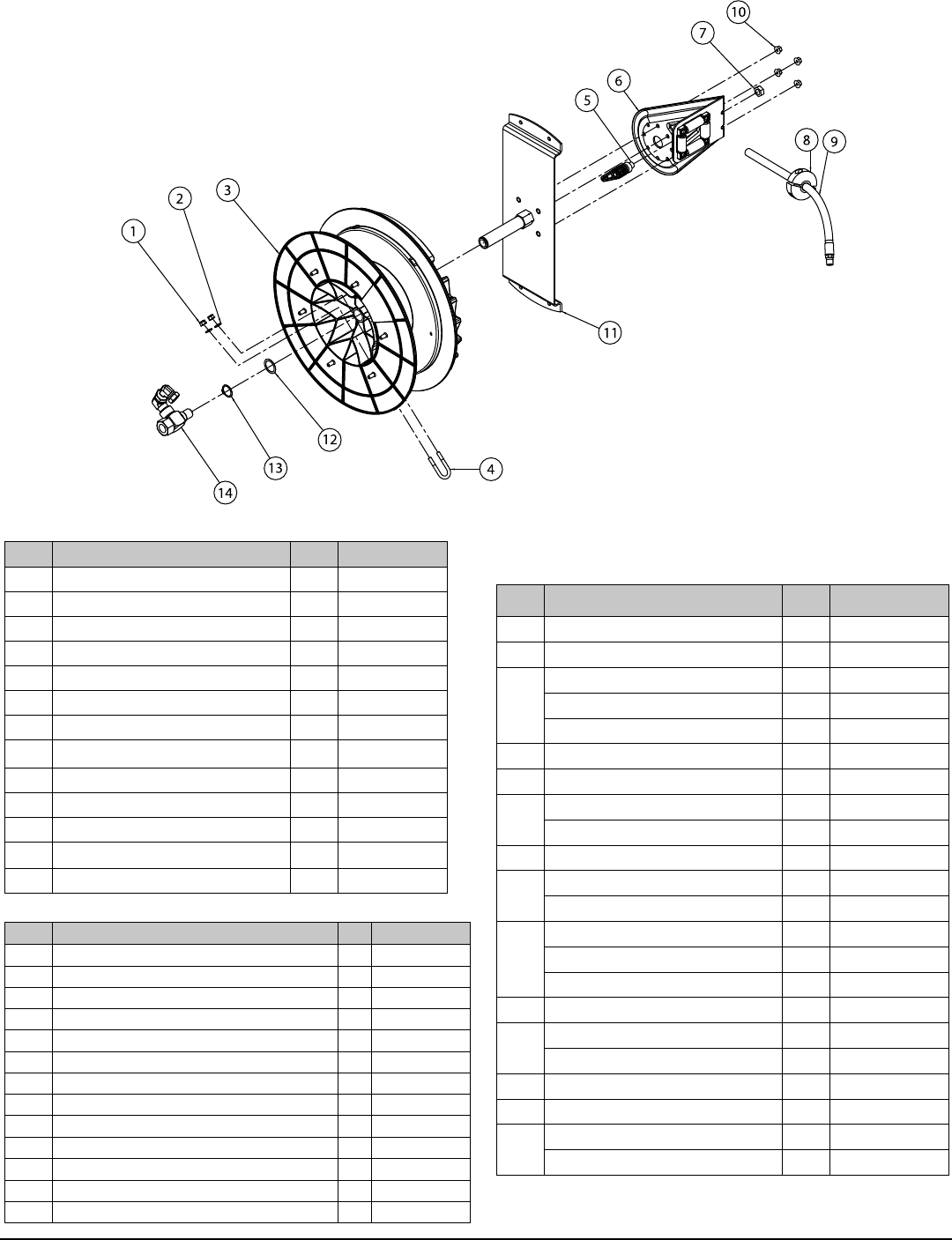

Exploded View - Low/Medium Pressure Side Mount Model
Low Pressure, 3/8” hose- 50 foot long hose models,
All 1/2” hose models
(RT650-OLPSM, RT835-OLPSM, RT850-OLPSM)
* Included in Hardware Kit S600897
** Included in Hardware Kit S600900
Item Description Qty. Part Number
1Nut 1/4" 2 *
2Washer 2 *
3
Spool/Drive Spring - RT835 only 1 S600879
Spool/Drive Spring - RT650 only 1 S600828
Spool/Drive Spring - RT850 only 1 S602011
4 U-Bolt 3/8" and 1/2" Hose 1 *
5Latch Pawl 1 S600823
6
Guide Arm 1 S600826
Guide Arm - RT850 only
1S602014
7Nut 1/2" 1 S76-108
8
Hose Bumper 3/8" Hose 1 A1-HR1004
Hose Bumper 1/2" Hose 1 A2-HR1004-3
9
Hose 3/8" ID x 50ft 1 601013-50
Hose 1/2" ID x 35ft 1 601022-35
Hose 1/2" ID x 50 ft 1 601022-50
10
Nut 5/16" 4 **
11
Base Assembly 1 602264
Shaft & Bracket Ass'y - RT850 only 1 602265
12
Spacing Washer 1 *
13
Retaining Ring 1 *
14
Swivel 3/8" - RT650 only
1 602262
Swivel 1/2" 1 602311
Item Description Qty Part Number
1 Nut 1/4" 2 261650-1
3 Spool/Drive Spring 1 S602011
4 U-Bolt 1/4" and 3/8" Hose 1 *
5 Latch Pawl 1 S600823
6 Guide Arm 1 S602014
7 Nut 1/2" 1 S76-108
8 Hose Bumper 1 A1-HR1004-3
9 Hose 3/8" ID x 50ft Med. Pressure 1 46-260043
10 Nut 5/16" 4 **
11
Shaft & Bracket Ass'y 1 602265
12 Spacing Washer 1 *
13 Retaining Ring 1 *
14 Swivel, Med. Pressure 3/8" 1 602329
Medium Pressure 3/8” hose model - 50 foot long hose (RT650 OMPSM)
