Product Manual

Item Description Qty Part Number
1 Nut 1/4" 2 261650-1
3
Spool/Drive Spring 1 S600878
Spool/Drive Spring (RT605-OMP & RT650-OMP) 1 S602011
4 U-Bolt 1/4" and 3/8" Hose 1 3-117440
5 Latch Pawl 1 S600823
6
Guide Arm 1 S600825
Guide Arm (RT605-OMP & RT650-OMP) 1 S602014
7 Nut 1/2" 1 S76-108
8 Hose Bumper 1/4" & 3/8" Hose 1 1-HR1004
Hose 3/8" ID x 25ft Med. Pressure 1 12-260043
Hose 3/8" ID x 35ft Med. Pressure 1 44-260043
9 Hose 1/4" ID x 25ft High Pressure 1 10-260044
Hose 1/4" ID x 35ft High Pressure 1 20-260044
Hose 3/8" ID x 25ft High Pressure 1 25-260044
Hose 3/8" ID x 50ft Med. Pressure 1 46-260043
10 Nut 5/16" 4 **
11
Base Assembly 1 600824
Base Assembly (RT605-OMP & RT650-OMP) 1 602012
12 Spacing Washer 1 **
13 Retaining Ring 1 **
Swivel, Med. Pressure 3/8" 1 S600913-1
14 Swivel, High Pressure 1/4" 1 S600905
Swivel, High Pressure 3/8" 1 S600906
Medium Pressure, all 3/8” hose models, High Pressure, all 1/4”
models, 3/8” 25 foot hose models
(RT602-OMP, RT625-OMP, RT603-OMP, RT635-OMP, RT605-OMP,
RT650-OMP, RT402-OHP, RT425-OHP, RT403-OHP, RT435-OHP,
RT602-OHP, RT625-OHP)

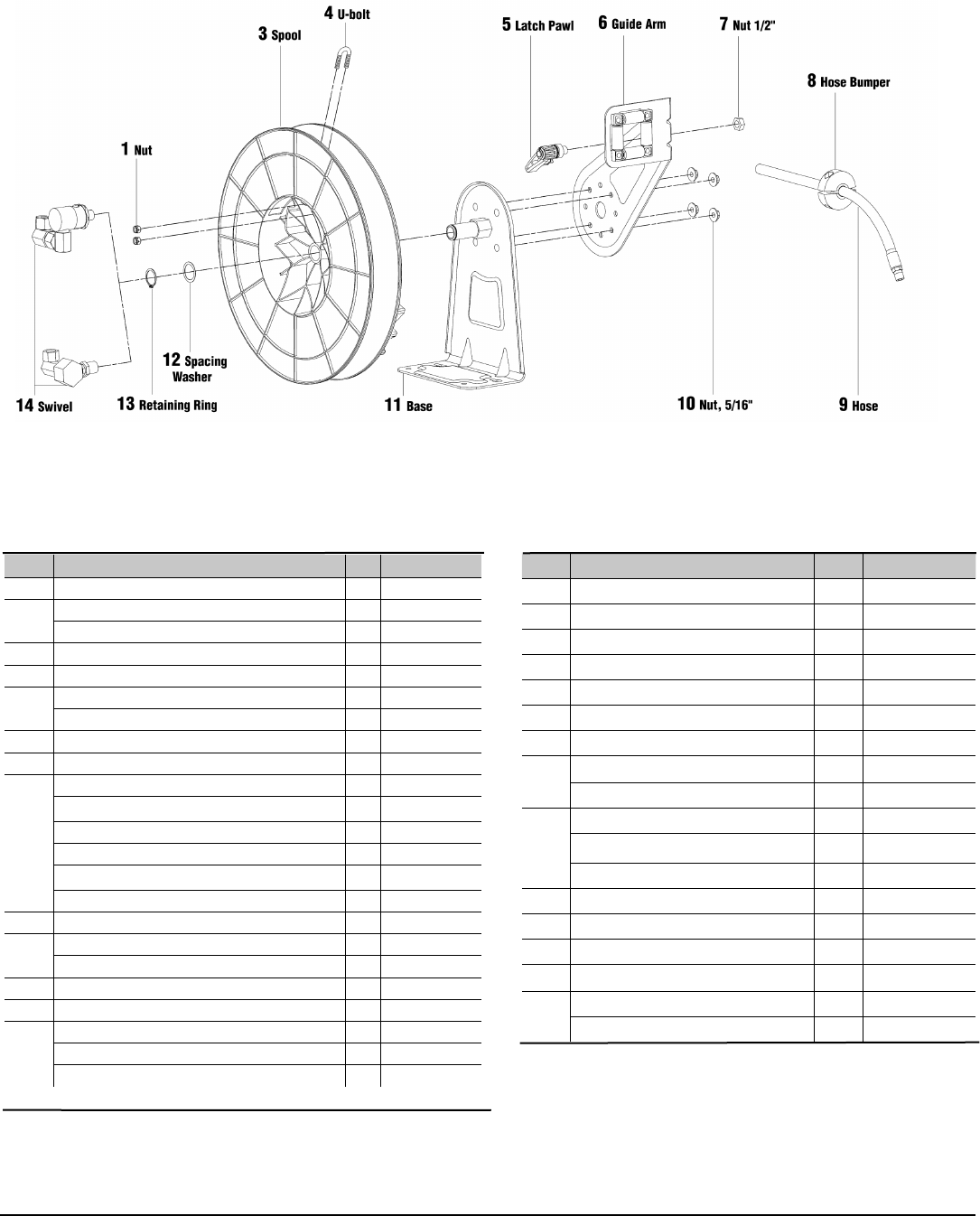

Exploded View - Medium/High Pressure Models
Medium Pressure, all 1/2” hose models
RT802-OMP, RT825-OMP, RT803-OMP, RT835-OMP
High Pressure, 3/8”, 35 foot hose models
RT603-OHP, RT635-OHP
Item Description Qty. Part Number
1 Nut 1/4" 2 *
2 Washer 2 *
3 Spool/Drive Spring 1 S600879
4 U-Bolt 3/8" and 1/2" Hose 1 3-117440
5 Latch Pawl 1 S600823
6 Guide Arm 1 S600826
7 Nut 1/2" 1 S76-108
8 Hose Bumper 3/8" Hose 1 1-HR1004
Hose Bumper 1/2" Hose 1 2-HR1004-3
Hose 1/2" ID x 25ft Med. Pres. 1 21-260043
9 Hose 1/2" ID x 35ft Med. Pres. 1 37-260043
Hose 3/8" ID x 35ft High Pres. 1 24-260044
10 Nut 5/16" 4 **
11 Base Assembly 1 600833
12 Spacing Washer 1 *
13 Retaining Ring 1 *
Swivel, Med. Pressure 1/2" 1 S600914-1
14 Swivel, High Pressure 3/8" 1 S600906
* Included in Hardware Kit S600897
** Included in Hardware Kit S600900
* Included in Hardware Kit S600897
** Included in Hardware Kit S600900
