Product Manual

Item Description Qty. Part Number
1 Nut 1/4" 2 261650-1
3 Spool/Drive Spring 1 S600827
RT405-OLP & RT450-OLP only 1 S600860
4 U-Bolt 1/4" and 3/8" Hose 1 3-117440
5 Latch Pawl 1 S600823
6 Guide Arm 1 S600825
7 Nut 1/2" 1 S76-108
8 Hose Bumper 1/4" Hose 1 1-HR1004A
Hose Bumper 3/8" Hose 1 1-HR1004
Hose 1/4" ID x 25ft Low Pres. 1 601001-25
Hose 1/4" ID x 35ft Low Pres. 1 601001-35
9 Hose 1/4" ID x 50ft Low Pres. 1 601001-50
Hose 3/8" ID x 25ft Low Pres. 1 601013-25
Hose 3/8" ID x 35ft Low Pres. 1 601013-35
10 Nut 5/16" 4 **
11 Base Assembly 1 600824
12 Spacing Washer 1 *
13 Retaining Ring 1 *
14 Swivel 1 S600886
Low Pressure, all 1/4” hose models - 25, 35 and 50 foot long hose
and 3/8” hose models - 25 and 35 foot long hose models only
(RT402-OLP, RT425-OLP, RT403-OLP, RT435-OLP, RT405-OLP,
RT450-OLP, RT602-OLP, RT625-OLP, RT603-OLP, RT635-OLP)

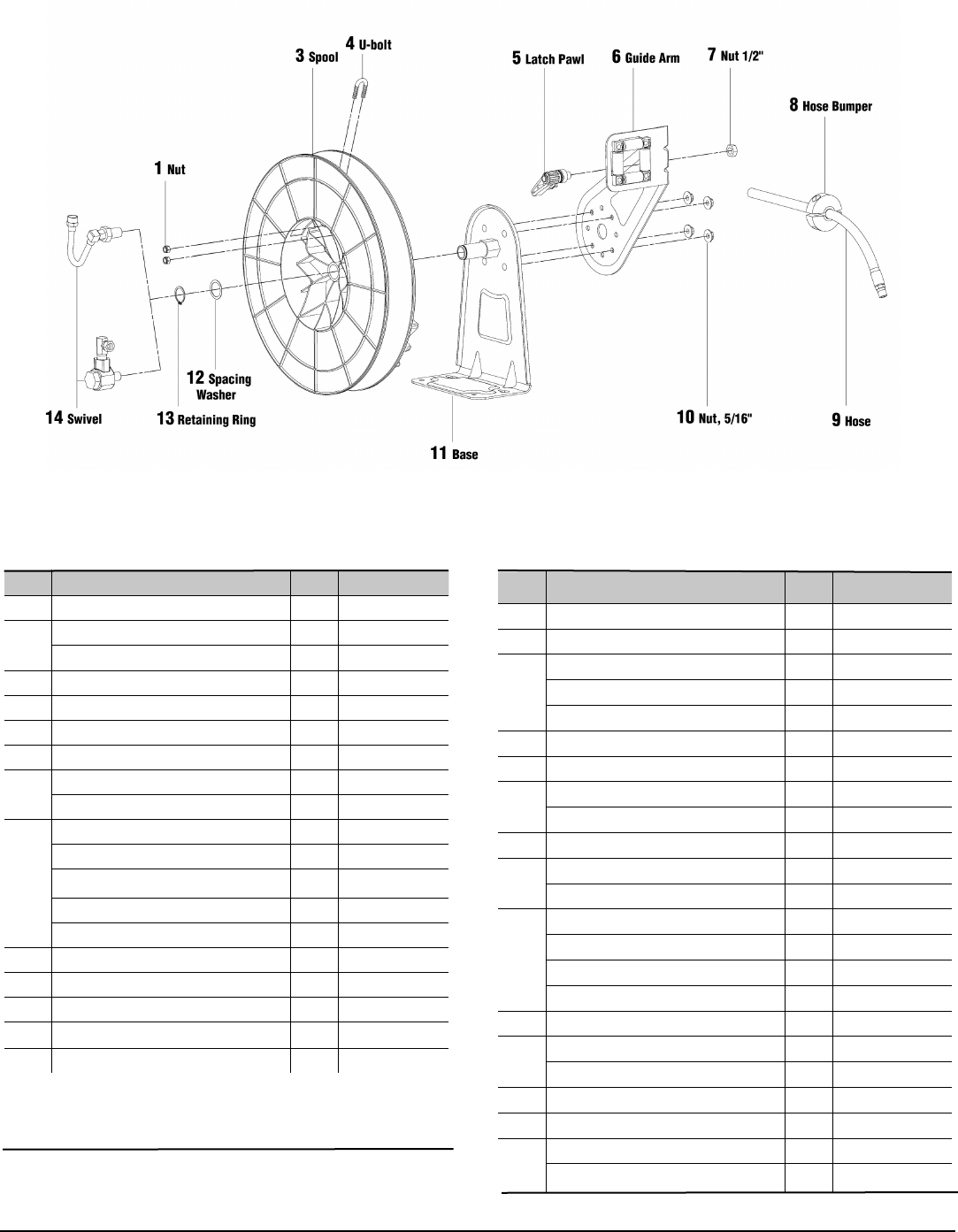

Exploded View - Low Pressure Model
Low Pressure, 3/8” hose- 50 foot long hose models,
All 1/2” hose models
(RT605-OLP, RT650-OLP, RT802-OLP, RT825-OLP, RT803-OLP,
RT835-OLP, RT805-OLP, RT850-OLP)
* Included in Hardware Kit S600897
** Included in Hardware Kit S600900
* Included in Hardware Kit S600897
** Included in Hardware Kit S600900
Item Description Qty. Part Number
1Nut 1/4" 2 *
2Washer 2 *
Spool/Drive Spring 1 S600879
3 RT605 & RT650 only 1 S600828
RT805 & RT850 only 1 S602011
4 U-Bolt 3/8" and 1/2" Hose 1 3-117440
5Latch Pawl 1 S600823
6Guide Arm 1 S600826
Guide Arm (RT805 & RT850) 1 S602014
7Nut 1/2" 1 S76-108
8 Hose Bumper 3/8" Hose 1 1-HR1004
Hose Bumper 1/2" Hose 1 A2-HR1004-3
Hose 3/8" ID x 50ft 1 601013-50
9 Hose 1/2" ID x 25ft 1 601020-25
Hose 1/2" ID x 35ft 1 601022-35
Hose 1/2" ID x 50 ft 1 601022-50
10 Nut 5/16" 4 **
11 Base Assembly 1 600833
Base Assembly RT805, RT850 1 S602012
12 Spacing Washer 1 *
13 Retaining Ring 1 *
14
Swivel 3/8" RT605, RT650 only
1 S600886
Swivel 1/2"
1 S600914-1
