Specifications

SECTION 9 - SUPPLEMENTS CESSNA
SUPPLEMENT 4 MODEL 172R NAV III
GFC 700 AFCS
U.S.
FAA APPROVED
WINTERIZATION KIT
GENERAL
The winterization kit consists of two cover plates, with placards, which
attach to the air intakes in the cowling nose cap, a placard silk
screened on the instrument panel, and insulation for the crankcase
breather tube. This equipment should be installed for operations in
temperatures consistently below 20°F (-7°C). Once installed, the
crankcase breather insulation is approved for permanent use in both
hot and cold weather operations.

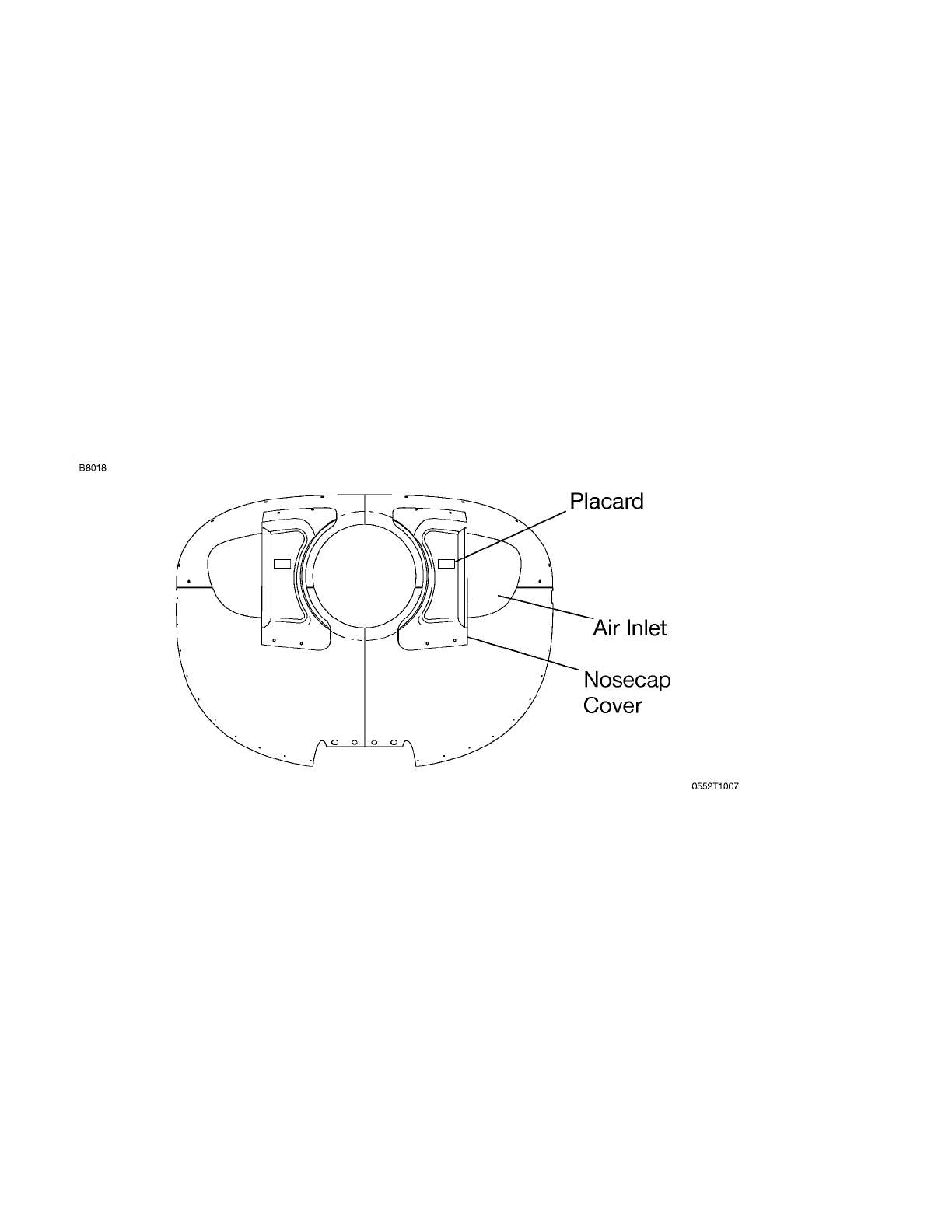

Figure S4-1
172RPHBUS-S4-00
S4-4
