TRIM REMOVAL - HOLDEN COLORADO RG

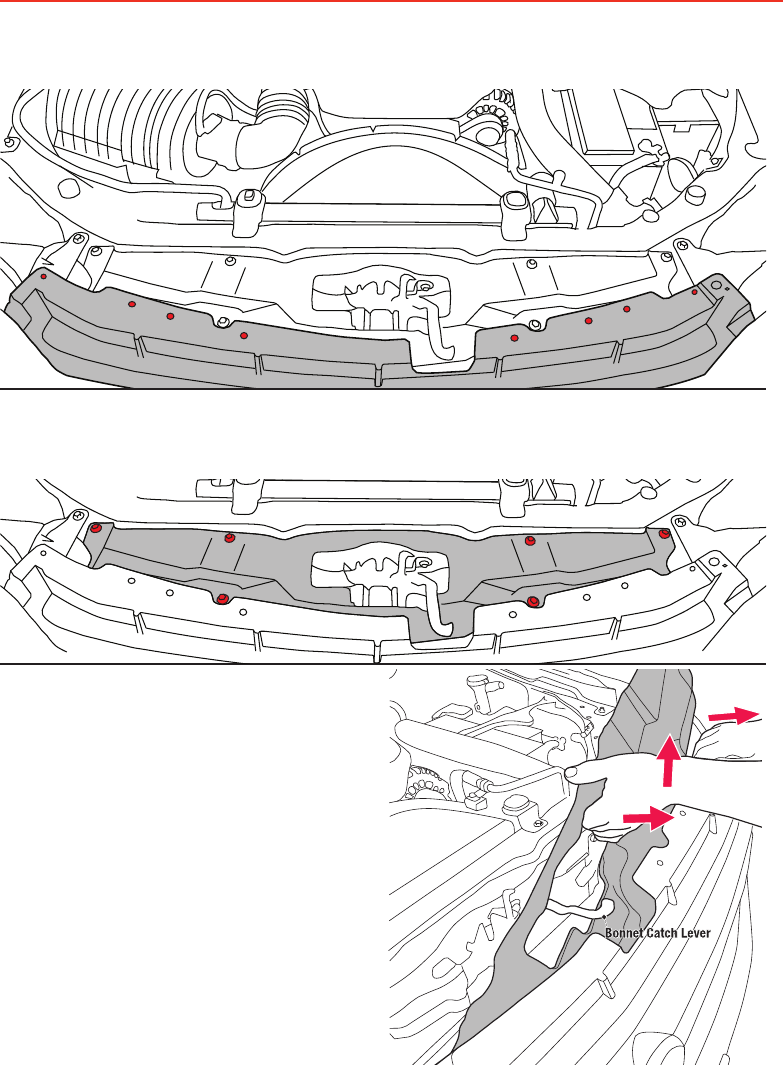

Step 1

• Remove the 8 Torx Screws from the plastic grille top using a T20 Torx tool.

Step 2

• Remove the 6 x M6 bolts from the top steel panel.

Step 3

• The steel panel can get caught

on the bonnet catch lever during

removal. Remove the top steel panel

by:

1. Gently pulling the plastic grille

forward to provide more clearance.

2. Lifting the steel panel forward to

clear the bonnet catch lever.

3. Lifting the steel panel up and out

of the vehicle.

• Proceed to Step 1 of Installation on

Page 6.
