Step 1

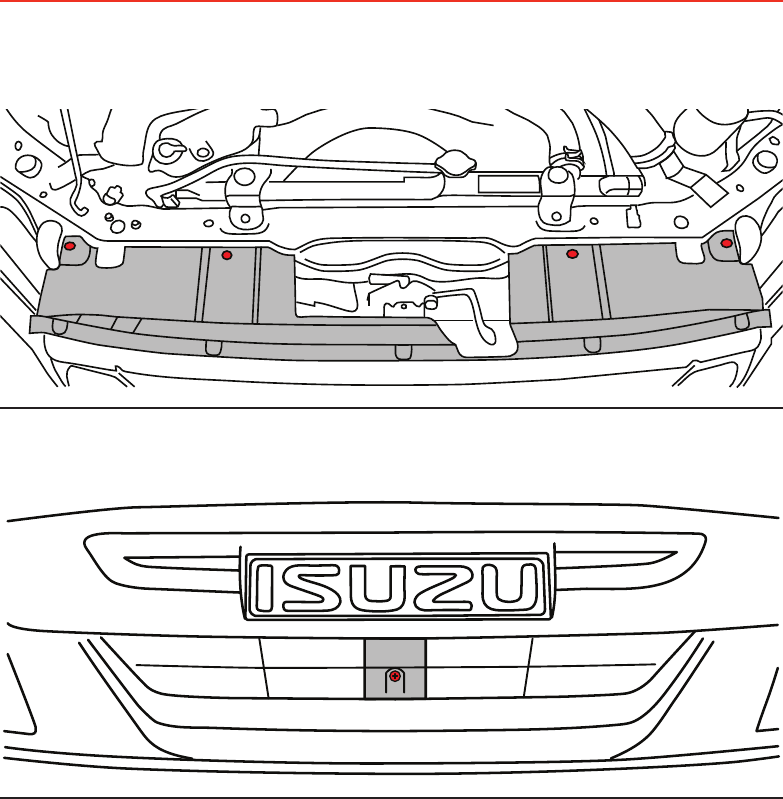

• Remove the 4 plastic clips from the top of the radiator grille.
Step 2
• Remove the Phillips head screw behind the front grille.
Step 3
• Reaching behind the grille, depress the 6 plastic retainer clips holding the
grille to the bumper while gently pulling the grille forward. Now remove the
grille completely and keep all fasteners for refitting. Note: Consult the vehicle
manufacturers instruction manual for removal instructions if you are unsure of this
step.
• Proceed to Step 1 of Installation on Page 6.
TRIM REMOVAL - ISUZU D-MAX
