Version 1.4.0 SVN 29352 BETA

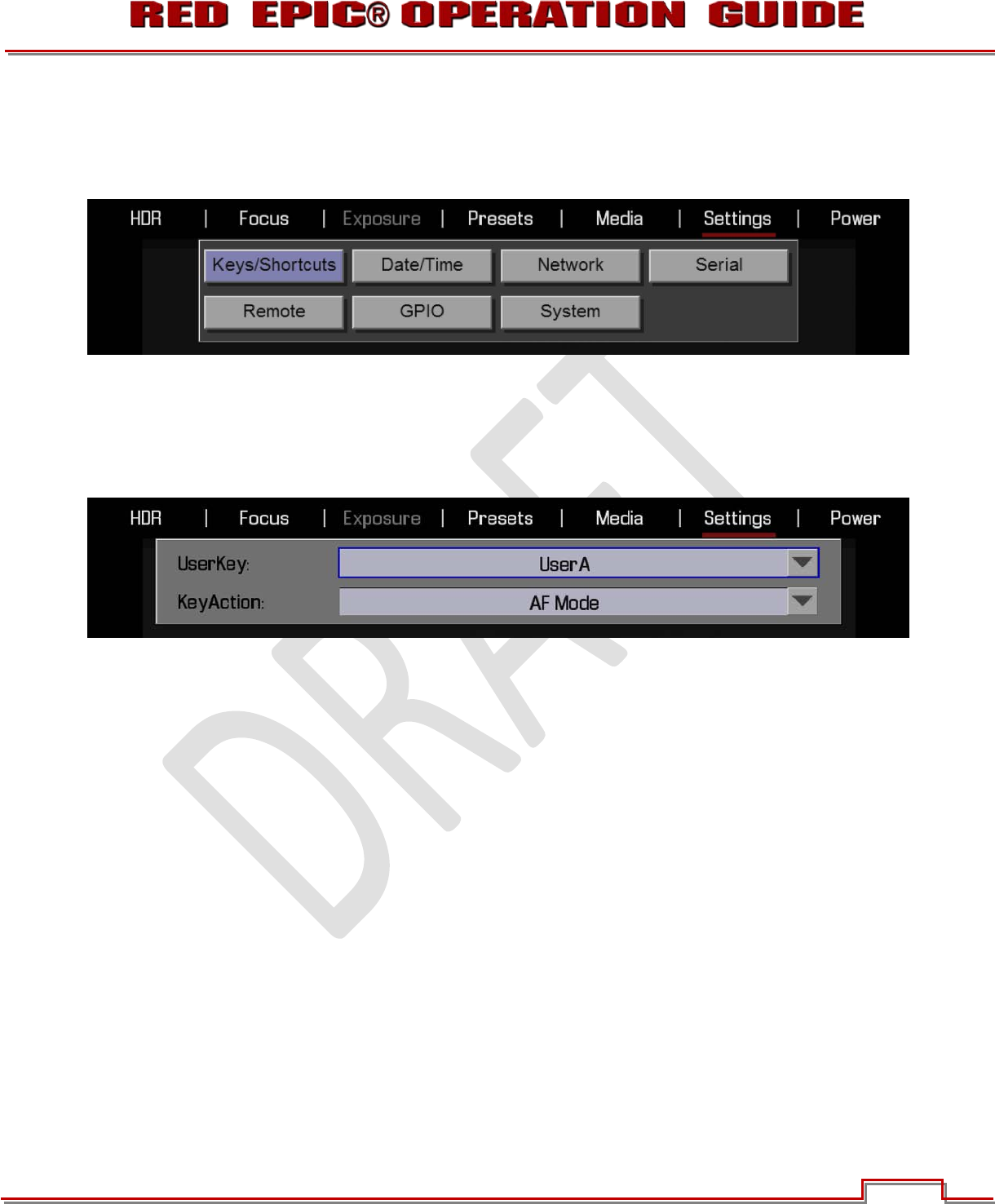

SETUP

This menu permits a variety of system setup tasks to be accomplished. Options available are KEYS /

SHORTCUTS, DATE / TIME, NETWORK, SERIAL, REMOTE, GPIO, and SYSTEM.

KEYS / SHORTCUTS

Keys / Shortcuts display the USER KEY and KEY ACTION sub-menus. These options allow selected

menus or functions to be mapped to specific User Keys on the camera body and accessories. User keys

are also referred at as Soft Keys / Buttons.

USER KEY

Use this menu to select and program the camera USER KEYS A - D.

USER A: Default is AF MODE.

USER B: Default is WB CALC.

USER C: Default is TOGGLE MAGNIFY.

USER D: Default is EXPOSURE CHECK.

NOTE: To reset keys to default settings, go to RESTORE. A reboot of the camera is necessary to

restore defaults.

NOTE: Multiple keys can be programmed to the same action.
