Version 1.4.0 SVN 29352 BETA

SHADOW

Shadow adjusts the toe value of the FLUT or in other words, the tone near Black. Range is -1.0 to +1.0.

Default is 0.0. Increasing the Shadow value raises the video level of near Blacks. Lowering the Shadow

value crushes the video level of near Blacks.

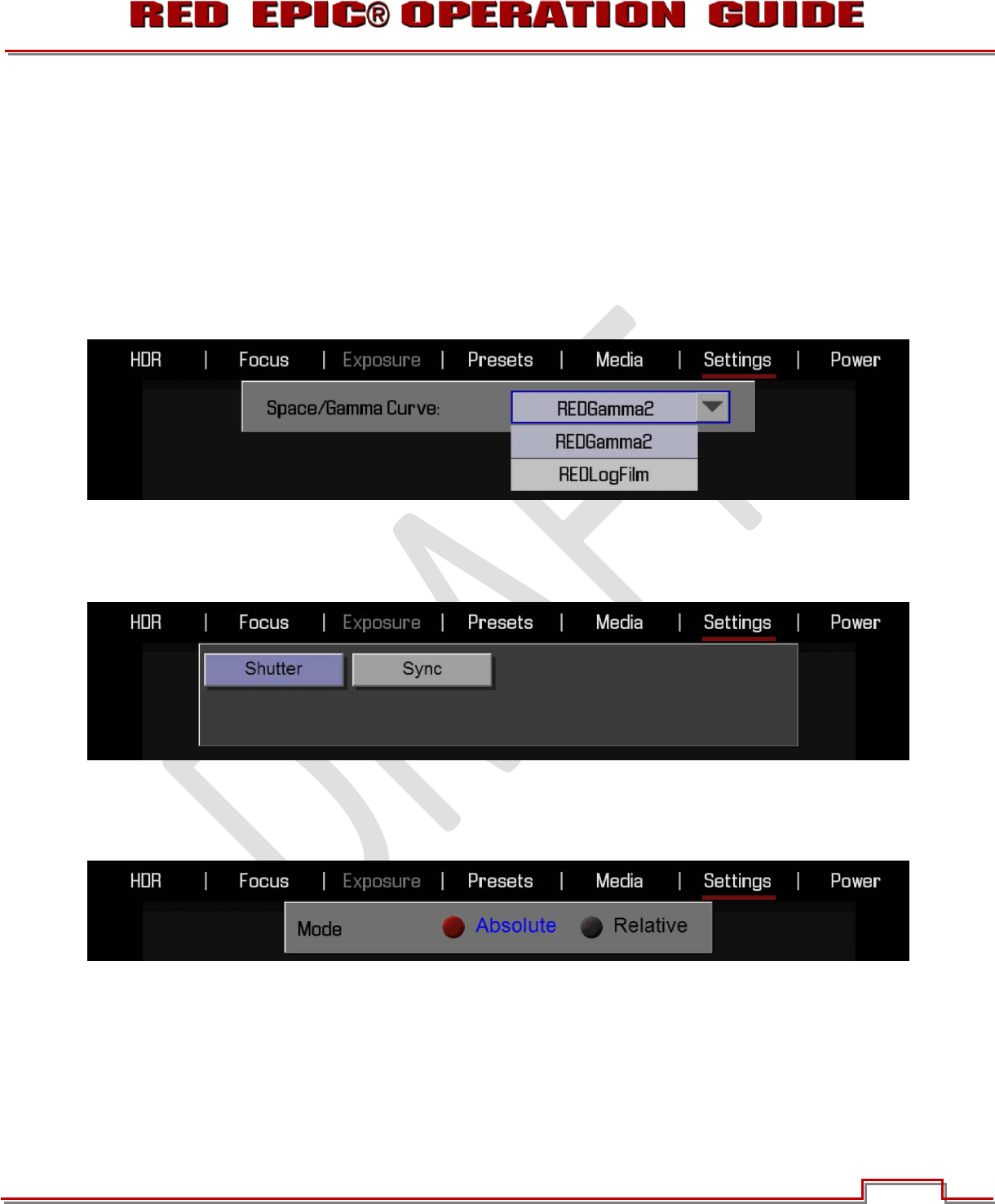

CURVE

The CURVE sub-menu permits adjustment of the monitor output Color Space and Gamma curve.

Available options are REDGamma2 and REDLogFilm.

SENSOR

Defines operational modes for the SENSOR. Available options are SHUTTER and SYNC.

SHUTTER

Enables one of two shutter timing (duration) modes: Absolute or Relative. Default selection is Absolute.

ABSOLUTE

Shutter Speed is defined exclusively by the Shutter Speed setting.
