Version 1.4.0 SVN 29352 BETA

88 88

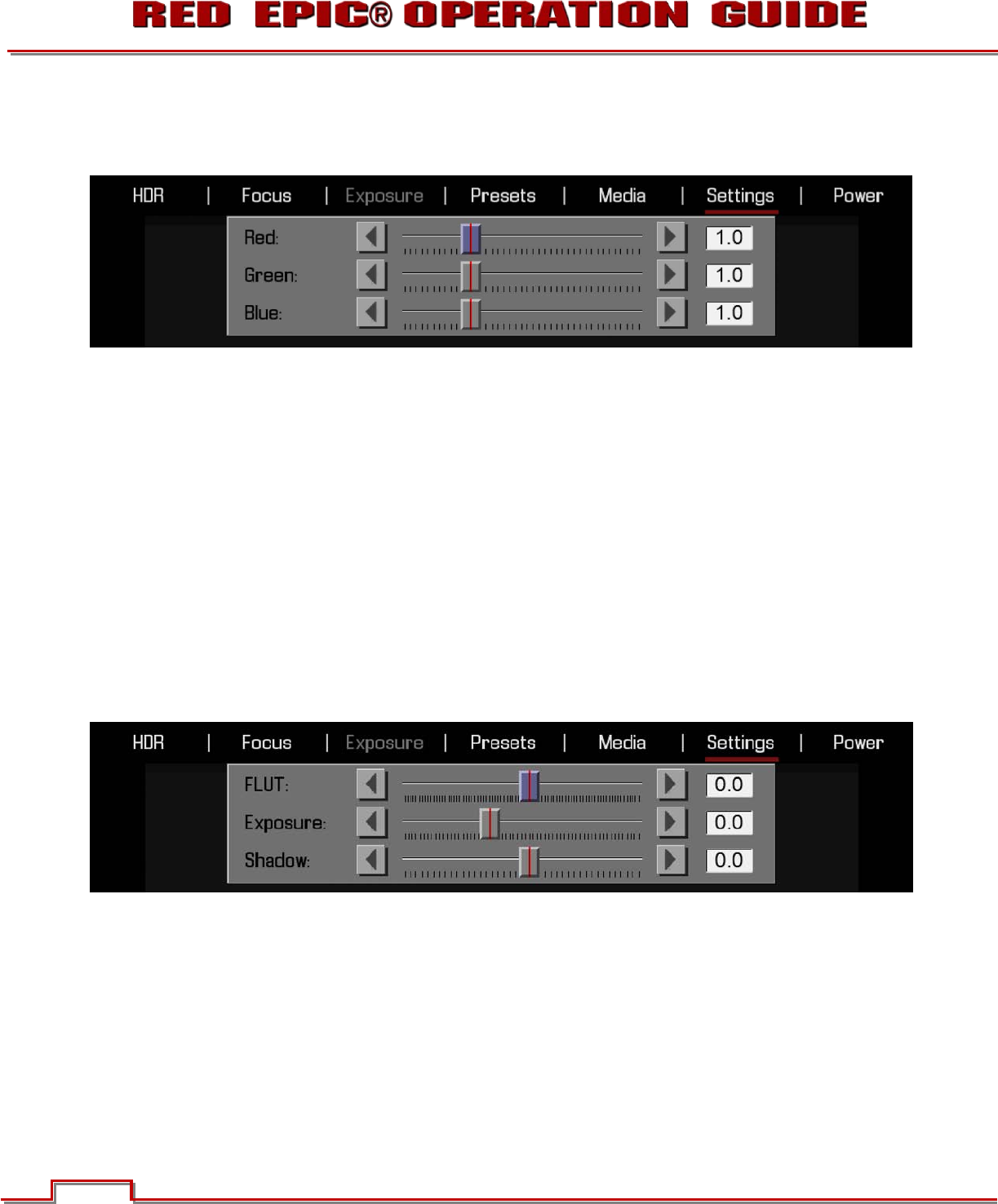

GAIN

The GAIN sub-menu permits adjustment of RED GAIN, BLUE GAIN and GREEN GAIN.

RED

Adjusts the gain of the RED channel only. Range is 0.0 (no Red) to 4.0. Default is 1.0.

BLUE

Adjusts the gain of the BLUE channel only. Range is 0.0 (no Blue) to 4.0. Default is 1.0.

GREEN

Adjusts the gain of the GREEN channel only. Range is 0.0 (no Green) to 4.0. Default is 1.0.

FLUT™

The FLUT sub-menu permits adjustment of FLUT, EXPOSURE COMPENSATION and SHADOW.

FLUT

FLUT (Floating Point Lookup Table) adjusts mid-range tone values. Range -4.0 to +4.0. Default is 0.0.

EXPOSURE

Adjusts exposure compensation. Available exposure range is – 7.0 to +7.0. Default is 0.0.
