Version 1.4.0 SVN 29352 BETA

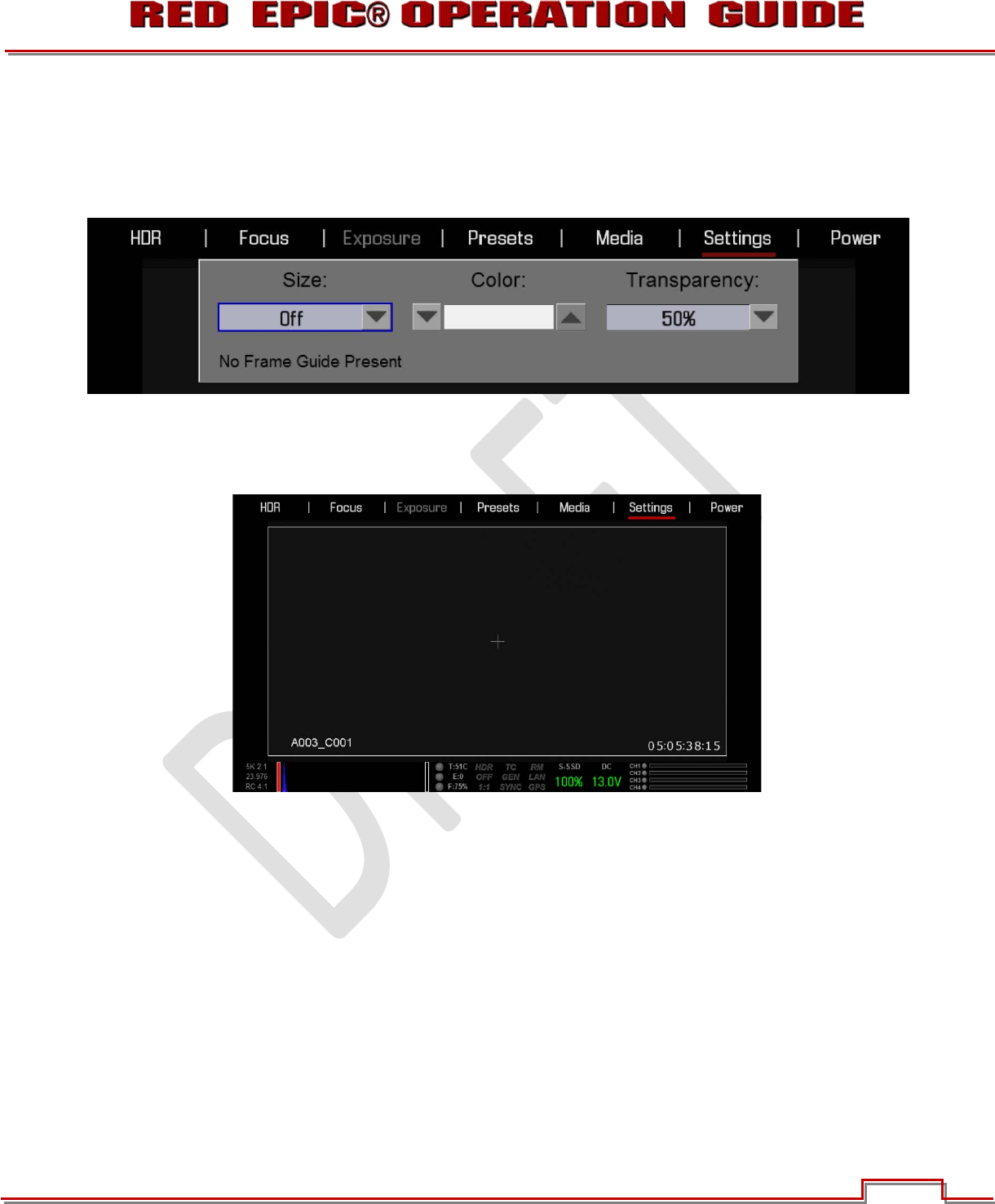

FRAME GUIDE

This sub-menu provides a selection of frame guides and safe action and safe title guides. User definable

safe action and safe title guides may be saved as a USER PREFERENCE, thereby permitting the camera

guides to be fully customized for any application. Available options are Size, Color and Transparency.

SIZE

Available options are Off, Full, 2.39:1, 1.85:1, 16:9, 4:3, 1.9:1, or User. Full is illustrated below.
