RED EPIC® OPERATION GUIDE
TABLE OF CONTENTS
- 1 of 2
- 2 of 2
DISCLAIMER
- Copyright Notice
- Trademark Disclaimer
COMPLIANCE
- Industrial Canada Emission Compliance Statements
- Federal Communications Commission (FCC) Statement
- Australia and New Zealand Statement
- Japan Statements
- European Union Compliance Statements
BEFORE YOU START
- Important Safety Instructions
THEORY OF OPERATION
- MYSTERIUM X® Sensor
- Image Processing
- HDRx™
- Magic Motion
- Audio Recording
- Microphone Level Analog Inputs
- Line Level Analog Inputs
- Video Monitoring Outputs
- RED LCD / Bomb EVF®
- REDmote®
- Digital Magazine (Media)
CAMERA OPERATIONAL CONTROLS
- Brain
- Side SSD Module
- Side Handle
- REDmote
- BOMB EVF
- RED LCD
- Touchscreen LCD
BASIC OPERATION
- Power Sources
- Graphical User Interface and Navigation
- Navigating Menus
- Using Touchscreen LCD
FIRST TIME USE – SETTING UP YOUR RED EPIC
- 1. Attach Power Source
  - Battery
  - DC Power
- 2. Power UP
- 3. Preparing to Record
- 4. Recording
  - Record Indicator
- 5. Playback
MENU CONTROLS
- Adjustments
  - Basic Setting Adjustments
    - Side Handle / REDMOTE
    - Touchscreen
  - Advanced Setting Menus
    - Side Handle / REDMOTE
    - Touchscreen
MAIN MENU
- FPS (VARISPEED)
  - Basic Settings
  - Advanced Settings
- ISO (Sensitivity)
- 1/SEC (EXPOSURE)
  - Basic Settings
  - Advanced Settings
- White Balance
  - Basic Settings
  - Advanced Settings
- Resolution
- REDcode®
SECONDARY MENUS
- HDR Menu
  - HDR ON / OFF
  - Stops
- Focus Menu
  - Mode
  - Zones
- Exposure Menu
- Presets Menu
- Media Menu
- Settings Menu
- Power Menu
APPENDIX A: UPGRADING CAMERA FIRMWARE
- Verify Current Camera Firmware
- Upgrade Procedure
APPENDIX B: MANAGING DIGITAL MEDIA
- Media
- Formatting Media
- Media Capacity Remaining Status
- Eject Media from Camera (Unmount)
- Copying Media
- Erasing Media
  - Macintosh OS X
  - Windows
APPENDIX C: CHARGING BATTERIES
- Battery LED Array
- Charging
APPENDIX D: INPUT / OUTPUT CONNECTORS
- Brain Front
  - MIC-1, MIC-2 (Microphone Audio)
- Brain Rear
- Side SSD Module
- REDmote
APPENDIX E: REDMOTE OPERATION
- Controls
- Charging / Battery Life
- Connecting / Removing
  - Physical
    - Connecting (Docking)
    - Removing (Undocking)
  - Wireless Communication
- Power Up / Down
  - Power UP
    - Connected to Camera
    - Not Connected to Camera
  - Power DOWN
    - Connected to Camera
    - Not Connected to Camera
- Recording
- Accessing Camera Controls / Settings
  - Changing Camera Settings
  - Exiting Menus to Main Screen
APPENDIX F: 3D SETUP / OPERATION
APPENDIX G: EXPOSURE – USING FALSE COLOR AND ISO
- Underexposure (~ 2 stops)
- Overexposure (~ 2 stops)
- Appropriate Exposure
- Adjusting the ISO Rating
APPENDIX H: POST PRODUCTION
- Software Tools
  - REDCINE-X®
APPENDIX I: TROUBLESHOOTING
- No Media Attached
- Camera Firmware Upgrade Hangs at Upgrading Peripherals
- Apply Calibration Failed
- Recording Halted: Record Error - Shutdown
- Preset Could Not Be Applied
- Power Spike Detected – Shutdown
APPENDIX J: MAINTENANCE
- Cleaning
APPENDIX K: TECHNICAL DATA
- Technical Specifications
- Brain Dimensions
APPENDIX L: MENU MAPS
- 1 of 4
- 2 of 4
- 3 of 4
- 4 of 4

Version 1.4.0 SVN 29352 BETA

80 80

GUI SKIN

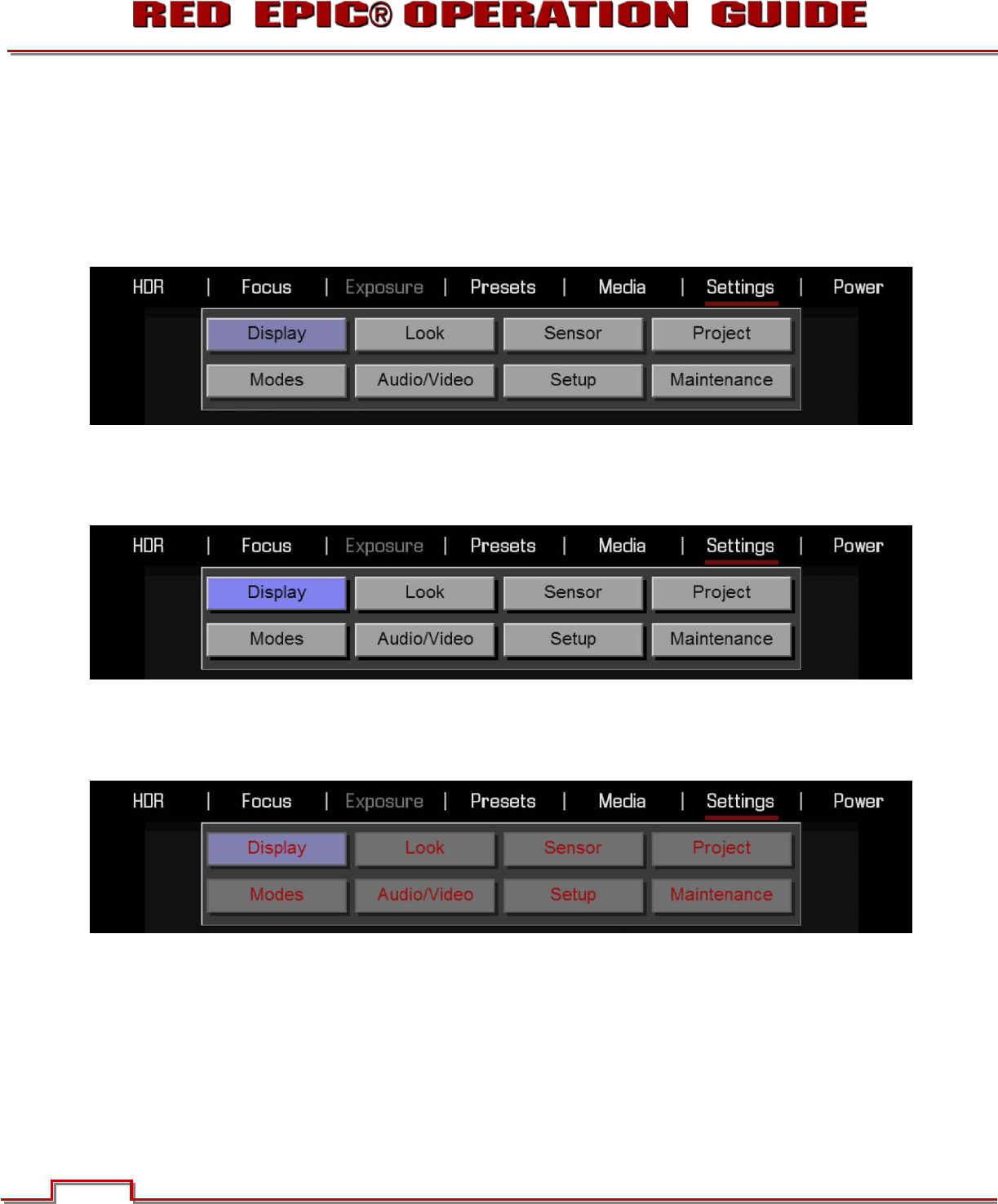

Selects GUI skin as NORMAL, OUTDOOR or NIGHT.

Normal

Normal displays the menu items in Black text over a Gray background for indoor shooting conditions.

Outdoor

Outdoor displays the menu items in Black text over a Gray background for outdoor shooting conditions.

Night

Night displays the menu items in Red text over a Gray background for nighttime shooting conditions.
