Version 1.4.0 SVN 29352 BETA

76 76

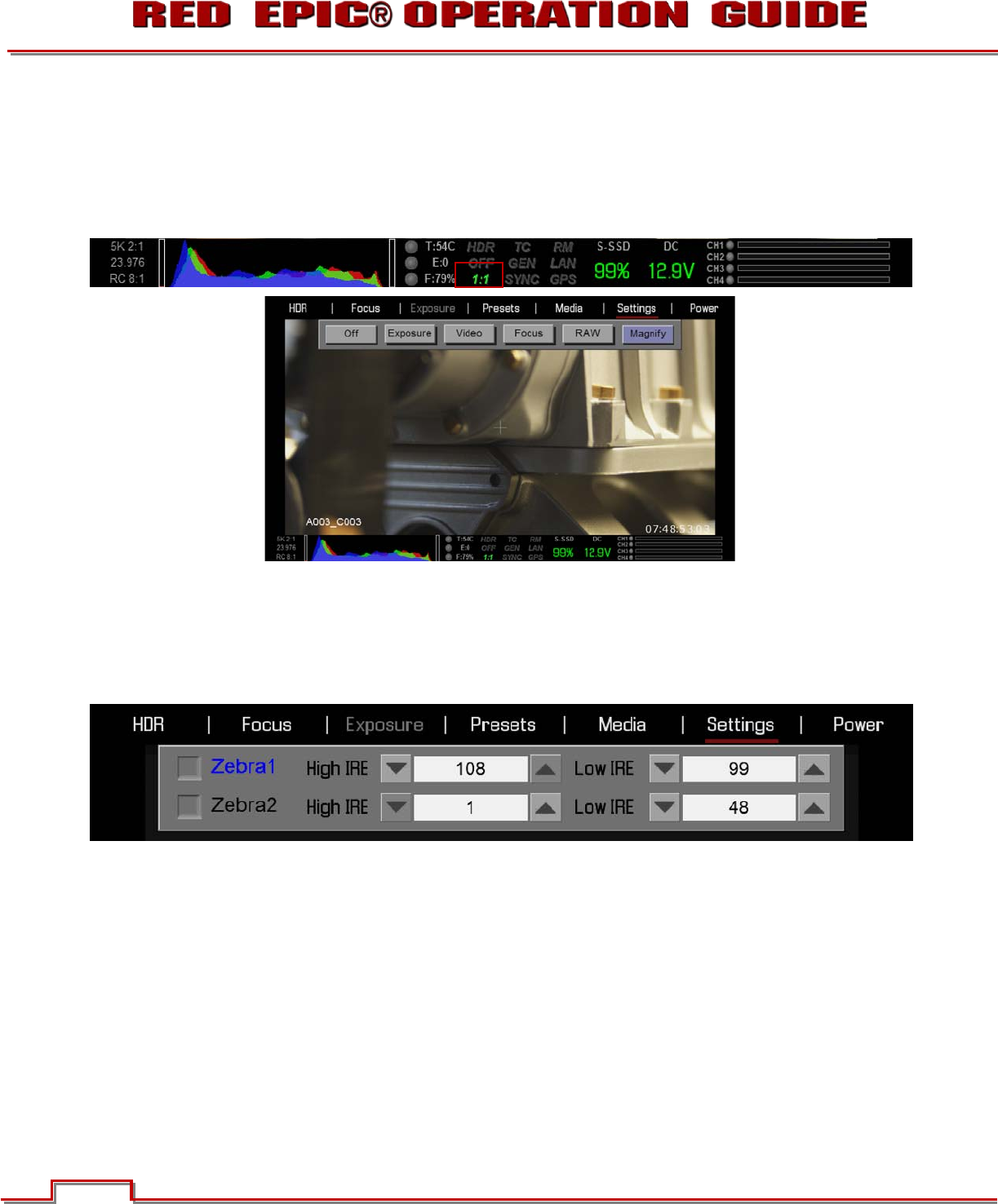

MAGNIFY

Magnify displays the central region of the sensor in 1:1 pixel resolution. When enabled, the 1:1 text in the

Lower Status Group will change to Green. If in Magnify mode, when the Record button is pressed, the

system will automatically exit this mode. When using a touchscreen you can also perform this function

by pinching your fingers together and apart.

ZEBRA

Zebras enable and adjust the upper and lower values for two independent Zebra indicators. One zebra

may be used for highlight exposure, and the other for mid tone or shadows. By default, Zebra 1 and 2

are disabled.
