Version 1.4.0 SVN 29352 BETA

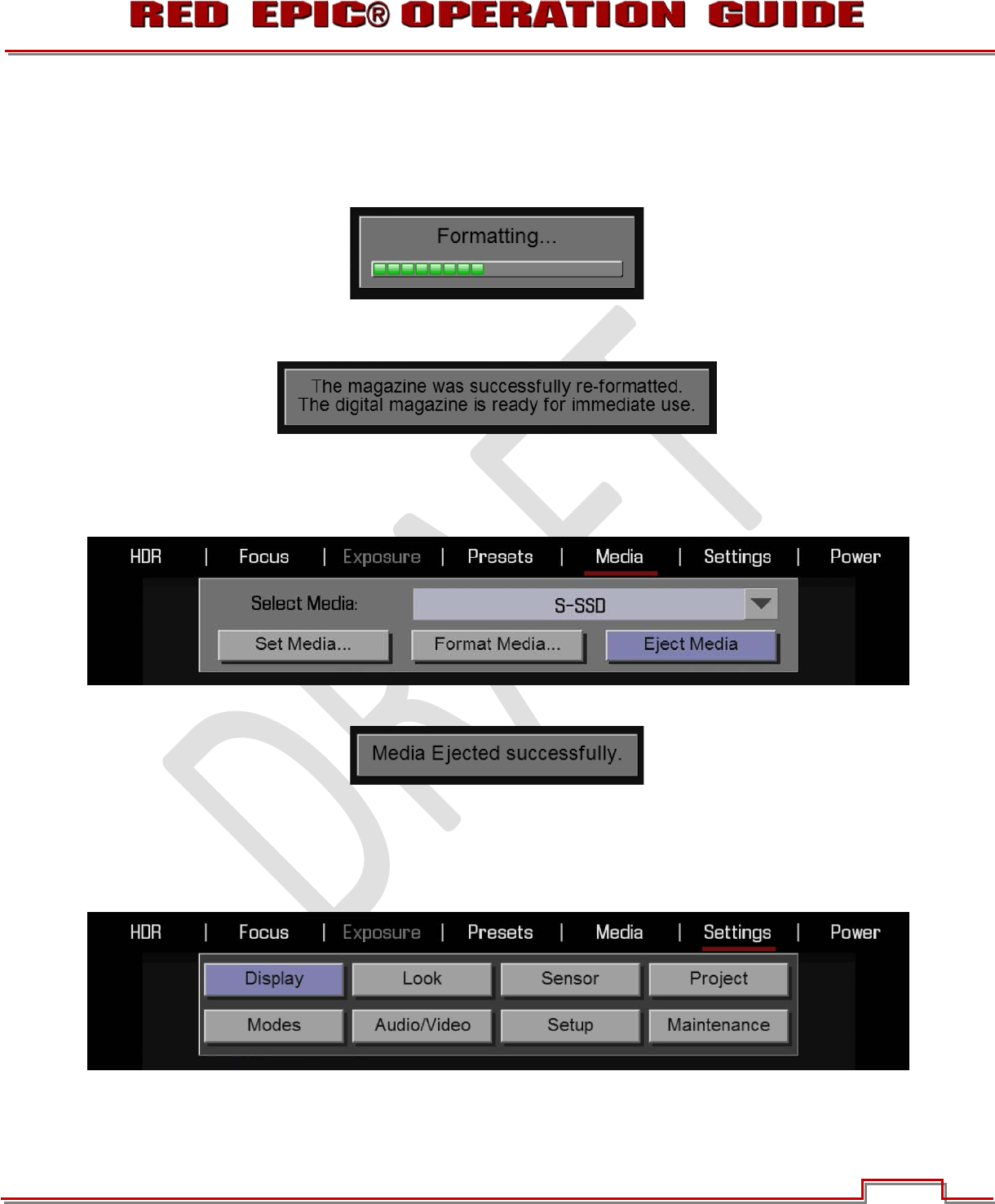

FORMAT

When selected, formats the media and adds the selected properties.

x During formatting, the camera will display “Formatting” with a Green status bar.

x When formatting is complete, camera will display “The magazine was successfully re-formatted. The

digital magazine is ready for immediate use.

EJECT MEDIA

When selected will Eject (unmount) the media highlighted in the Select Media box.

When ejected, camera will display “Media Ejected Successfully”.

SETTINGS MENU

This section describes the various secondary controls available to configure the camera. Menu options

are DISPLAY, LOOK, SENSOR, PROJECT, MODES, AUDIO/VIDEO, SETUP and MAINTENANCE.
