Version 1.4.0 SVN 29352 BETA

70 70

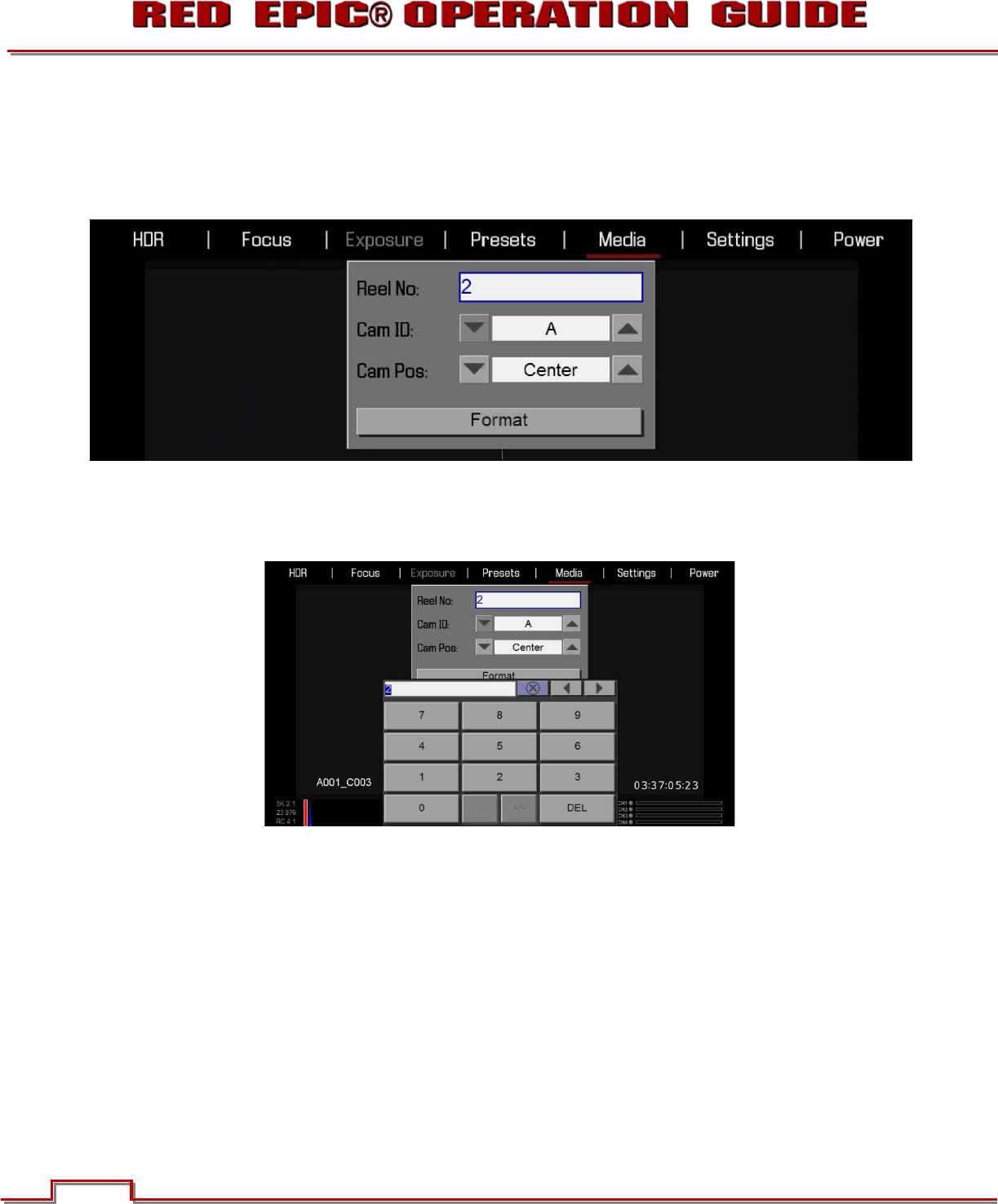

FORMAT MEDIA

When selected, a new dialog box will appear allowing you to add properties to the media highlighted in

the Current Media box when formatting. Available options are REEL NO, CAM ID, CAM POS, and

FORMAT to format the media with the values entered.

REEL NO.

When selected a keypad will appear allowing you to enter a value between 1 and 999.

CAMERA ID (SLATE)

Identifies the camera with a letter A through Z. Default is A.

CAMERA POS (POSITION)

Identifies the camera position as Right, Left or Center. Default is Center.
