RED EPIC® OPERATION GUIDE
TABLE OF CONTENTS
- 1 of 2
- 2 of 2
DISCLAIMER
- Copyright Notice
- Trademark Disclaimer
COMPLIANCE
- Industrial Canada Emission Compliance Statements
- Federal Communications Commission (FCC) Statement
- Australia and New Zealand Statement
- Japan Statements
- European Union Compliance Statements
BEFORE YOU START
- Important Safety Instructions
THEORY OF OPERATION
- MYSTERIUM X® Sensor
- Image Processing
- HDRx™
- Magic Motion
- Audio Recording
- Microphone Level Analog Inputs
- Line Level Analog Inputs
- Video Monitoring Outputs
- RED LCD / Bomb EVF®
- REDmote®
- Digital Magazine (Media)
CAMERA OPERATIONAL CONTROLS
- Brain
- Side SSD Module
- Side Handle
- REDmote
- BOMB EVF
- RED LCD
- Touchscreen LCD
BASIC OPERATION
- Power Sources
- Graphical User Interface and Navigation
- Navigating Menus
- Using Touchscreen LCD
FIRST TIME USE – SETTING UP YOUR RED EPIC
- 1. Attach Power Source
  - Battery
  - DC Power
- 2. Power UP
- 3. Preparing to Record
- 4. Recording
  - Record Indicator
- 5. Playback
MENU CONTROLS
- Adjustments
  - Basic Setting Adjustments
    - Side Handle / REDMOTE
    - Touchscreen
  - Advanced Setting Menus
    - Side Handle / REDMOTE
    - Touchscreen
MAIN MENU
- FPS (VARISPEED)
  - Basic Settings
  - Advanced Settings
- ISO (Sensitivity)
- 1/SEC (EXPOSURE)
  - Basic Settings
  - Advanced Settings
- White Balance
  - Basic Settings
  - Advanced Settings
- Resolution
- REDcode®
SECONDARY MENUS
- HDR Menu
  - HDR ON / OFF
  - Stops
- Focus Menu
  - Mode
  - Zones
- Exposure Menu
- Presets Menu
- Media Menu
- Settings Menu
- Power Menu
APPENDIX A: UPGRADING CAMERA FIRMWARE
- Verify Current Camera Firmware
- Upgrade Procedure
APPENDIX B: MANAGING DIGITAL MEDIA
- Media
- Formatting Media
- Media Capacity Remaining Status
- Eject Media from Camera (Unmount)
- Copying Media
- Erasing Media
  - Macintosh OS X
  - Windows
APPENDIX C: CHARGING BATTERIES
- Battery LED Array
- Charging
APPENDIX D: INPUT / OUTPUT CONNECTORS
- Brain Front
  - MIC-1, MIC-2 (Microphone Audio)
- Brain Rear
- Side SSD Module
- REDmote
APPENDIX E: REDMOTE OPERATION
- Controls
- Charging / Battery Life
- Connecting / Removing
  - Physical
    - Connecting (Docking)
    - Removing (Undocking)
  - Wireless Communication
- Power Up / Down
  - Power UP
    - Connected to Camera
    - Not Connected to Camera
  - Power DOWN
    - Connected to Camera
    - Not Connected to Camera
- Recording
- Accessing Camera Controls / Settings
  - Changing Camera Settings
  - Exiting Menus to Main Screen
APPENDIX F: 3D SETUP / OPERATION
APPENDIX G: EXPOSURE – USING FALSE COLOR AND ISO
- Underexposure (~ 2 stops)
- Overexposure (~ 2 stops)
- Appropriate Exposure
- Adjusting the ISO Rating
APPENDIX H: POST PRODUCTION
- Software Tools
  - REDCINE-X®
APPENDIX I: TROUBLESHOOTING
- No Media Attached
- Camera Firmware Upgrade Hangs at Upgrading Peripherals
- Apply Calibration Failed
- Recording Halted: Record Error - Shutdown
- Preset Could Not Be Applied
- Power Spike Detected – Shutdown
APPENDIX J: MAINTENANCE
- Cleaning
APPENDIX K: TECHNICAL DATA
- Technical Specifications
- Brain Dimensions
APPENDIX L: MENU MAPS
- 1 of 4
- 2 of 4
- 3 of 4
- 4 of 4

Version 1.4.0 SVN 29352 BETA

SELECT MEDIA

Allows you to select the Media location to be used by the camera. Default is the Side SSD Module.

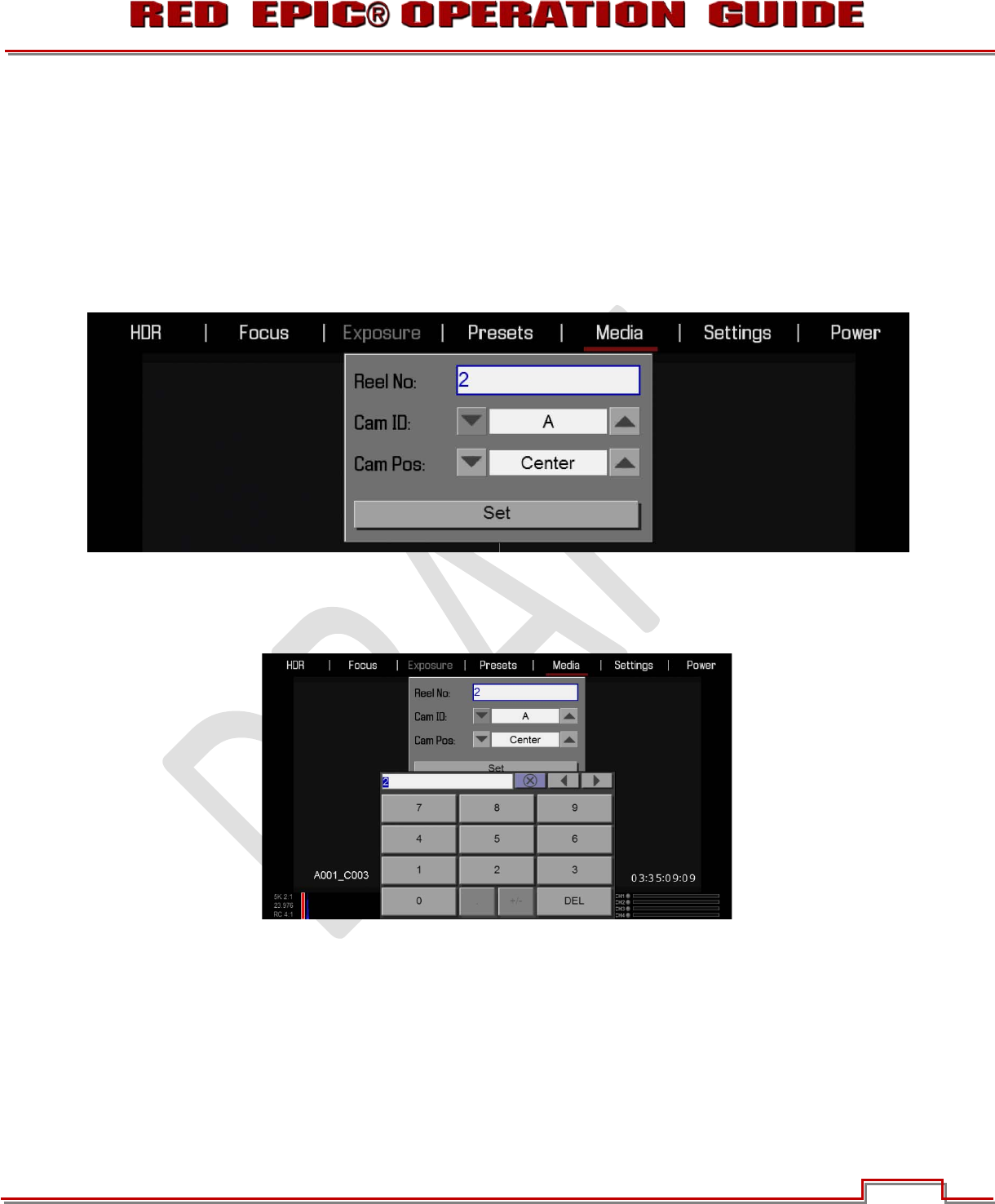

SET MEDIA

When selected, a new dialog box will appear allowing you to add properties to the media highlighted in

the Current Media box when formatting. Available options are REEL NO, CAM ID, CAM POS, and SET to

set the values entered.

REEL NO.

When selected, a keypad will appear allowing you to enter a value between 1 and 999.

CAMERA ID (SLATE)

Identifies the camera with a letter A through Z. Default is A.

CAMERA POS (POSITION)

Identifies the camera position as Right, Left or Center. Default is Center.
