Version 1.4.0 SVN 29352 BETA

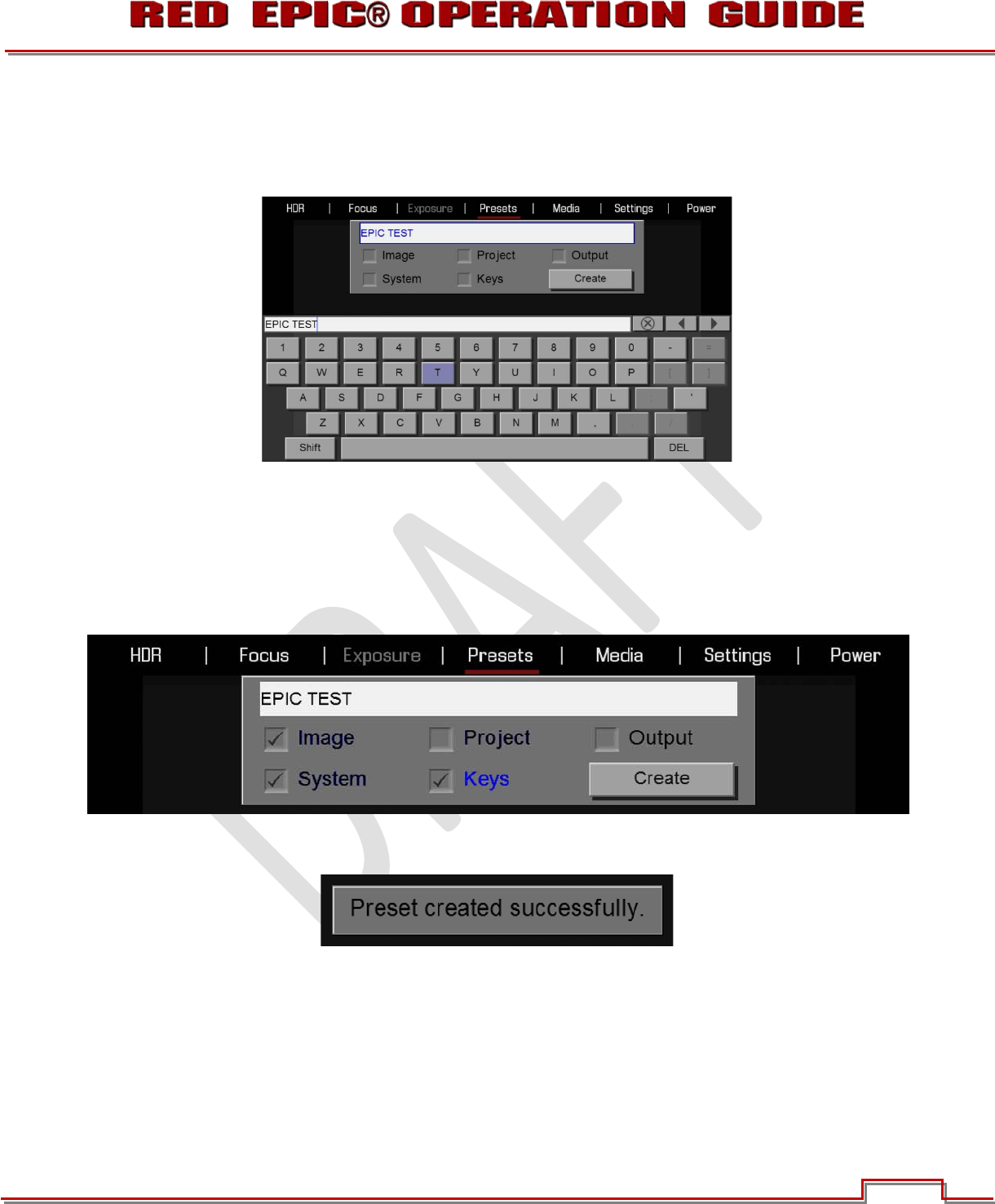

PRESET NAME

Press the Enter button on the New Name field, a keyboard will appear allowing you to enter the desired

preset name.

Use the arrow keys and Enter button, enter the desired name. When finished, press the Menu button to

close the keyboard.

PRESET INFORMATION

Use the arrow keys and Enter button to select the information you want to be stored for your preset.

Available options are IMAGE, SYSTEM, PROJECT, KEYS, and/or OUTPUT.

When creating a new preset successfully completed, “Preset Created Successfully” will appear and the

preset will be listed.
