Version 1.4.0 SVN 29352 BETA

58 58

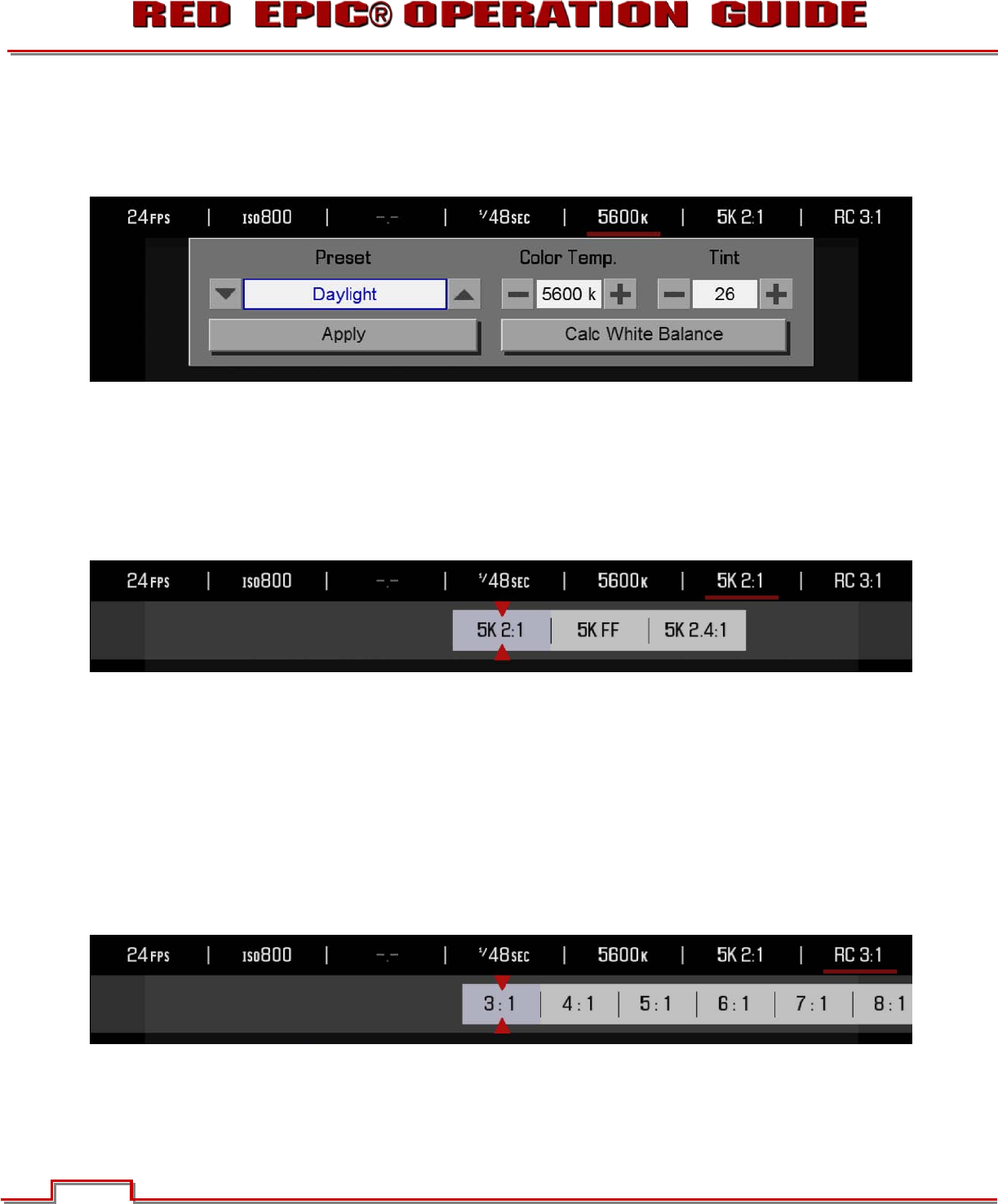

CALC WHITE BALANCE

The Calc White Balance function analyzes the central 25% of the image visible in the monitor to

calculate a Color Temperature that will render a white object as white.

To use Calc White Balance function, place a White or Gray object under the ambient light, select the

Calc White Balance function and then press the Calc White Balance function box. Calc White Balance is

also assigned to a User Key on the REDmote and Side Handle as a factory default setting.

RESOLUTION

Allows adjustment of resolution.

Default is 5K 2:1

The following Resolution options are available:

x 5K 2:1

x 5K FF

x 5K 2.4:1

REDCODE®

Allows adjustment of REDCODE settings.

Range is 2:1 to 18:1

Default is 8:1
