Version 1.4.0 SVN 29352 BETA

56 56

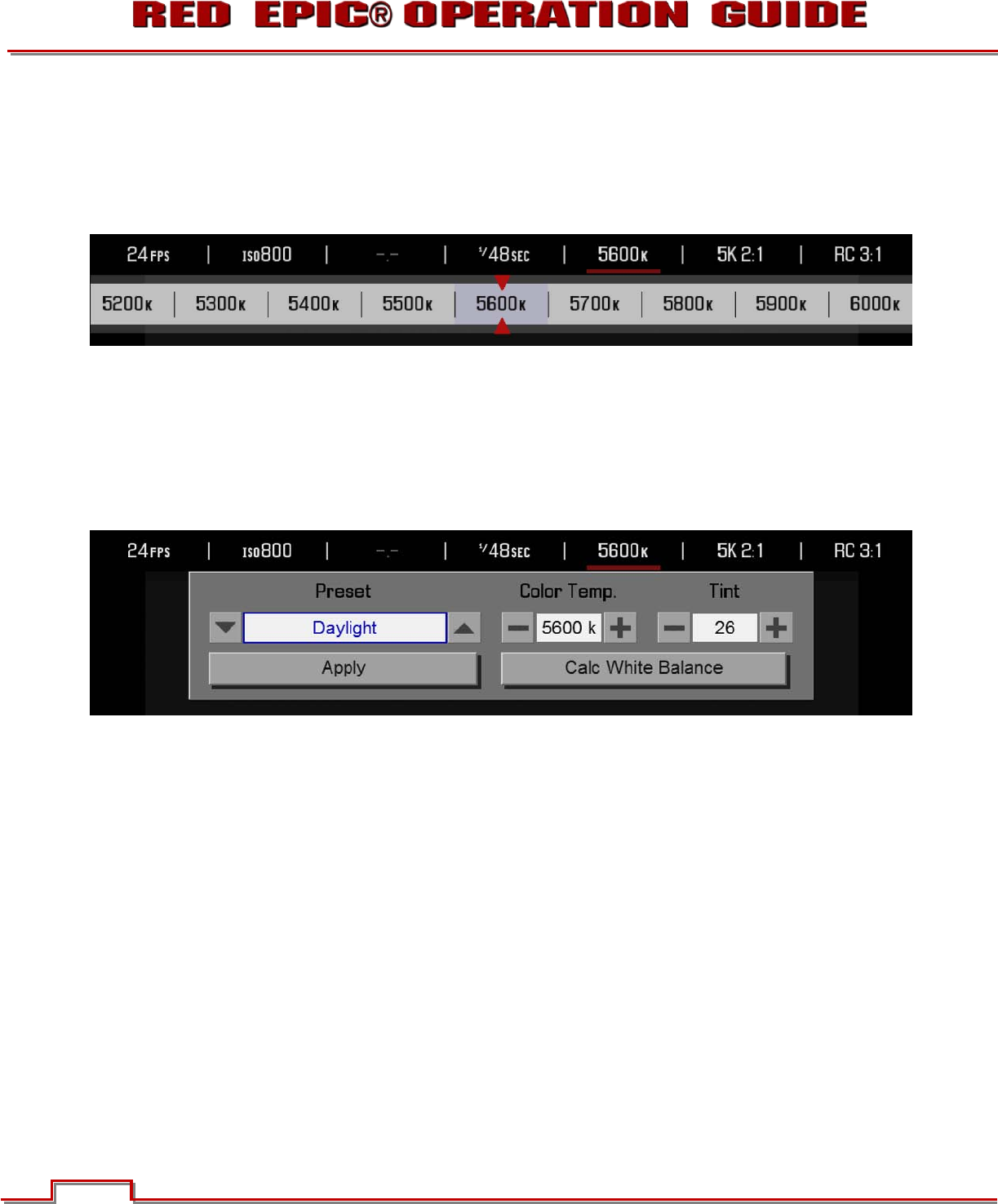

WHITE BALANCE

BASIC SETTINGS

Allows you to manually set Color Temperature in the range from 1,700 to 100,000 degrees Kelvin.

Range is 1,700 K to 10,000 K.

Default is 5600K.

ADVANCED SETTINGS

When selected, allows additional adjustment of the White Balance. Available options are PRESET,

COLOR TEMP, TINT, and CALCULATE WHITE BALANCE. Press APPLY for settings to take effect.

PRESET

Available preset options are:

SHADE

Preset to 9,000K

CLOUDY

Preset to 7,500K

DAYLIGHT

Preset to 5,600K

FLASH

Preset to 5,500K

FLOURESCENT

Preset to 4,500K

TUNGSTEN

Preset to 3,200K

INCANDECENT

Preset to 2,800K
