55

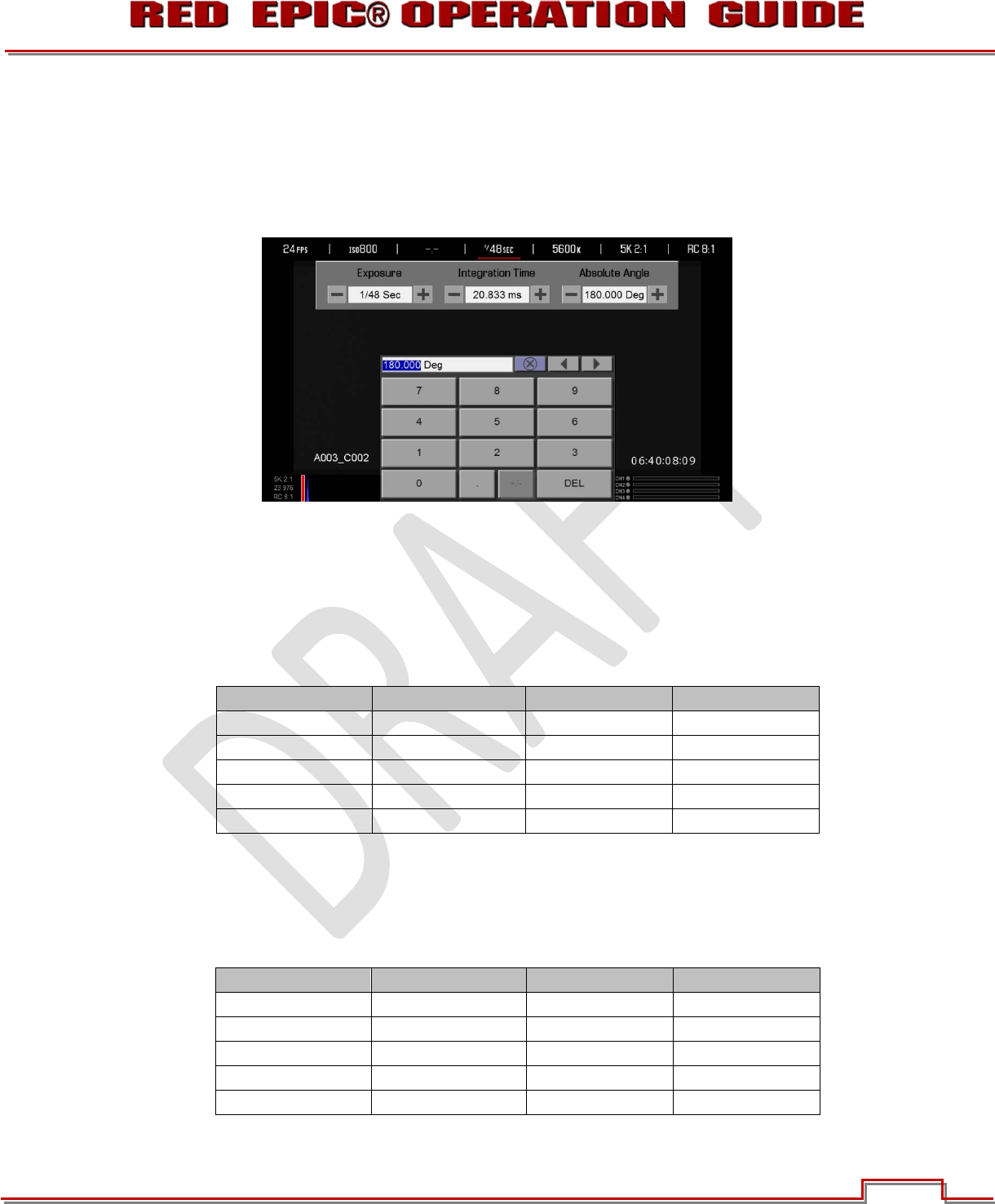

ANGLE
Provides the ability to enter the Exposure value as a Shutter Angle (xx Degrees).
Range is 4.0 to 360.0 Degrees
Default is 180.0 Degrees
As you adjust any of these three parameters, the camera will automatically calculate the equivalent value
in the other units, but as a quick reference here are some common Speeds and Angles.
To Convert Shutter Speed to Angle Equivalent:
Equivalent Degrees = (Shutter Speed x Frame Rate x 360)
E.g. = (1/48 x 24 x 360) = (8640/48) = 180
Shutter Degrees Shutter Degrees
1/32 270 1/120 72
1/48 180 1/192 45
1/50 172.8 1/348 22.5
1/60 144 1/696 11
1/96 90 1/1000 8.6
Equivalent Shutter = 1 / (Frame Rate x 360 / Angle)
E.g. = 1/ (24 x 360/180) = 1/ (8640/180) = 1/48
Degrees Shutter Degrees Shutter
270 1/32 72 1/120
180 1/48 45 1/192
172.8 1/50 22.5 1/348
144 1/60 11 1/696
90 1/96 8.6 1/1000
