ADJUSTING PROJECT SETTINGS
TIME BASE
To adjust the project TIME BASE, press the MENU button on the Side Handle or REDmote. Then use the
Scroll Wheel or Direction Keys to navigate to SETTINGS > PROJECT > PROJECT RATE and press
ENTER. Adjust to the desired value using the Scroll Wheel and press ENTER once more to confirm.
If using a Touch Screen, select > SETTINGS > PROJECT > PROJECT RATE. Adjust by sliding your
finger left / right or tapping on the desired value, and then press anywhere else on the touch screen to
confirm.
The following TIME BASES are currently available:
x 23.98 fps
x 24.00 fps
x 25.00 fps
x 29.97 fps
x 47.96 fps
x 48.00 fps
x 50.00 fps
x 59.94 fps
NOTE: A project can only support one Time Base as this defines the frame count to be used for
time code and as the clip playback and editing frame rate. It is also the primary frame rate for
acquisition, but variable speed (over-crank and under-crank) recordings can be made above and
below this base frame rate using the VARISPEED menu.

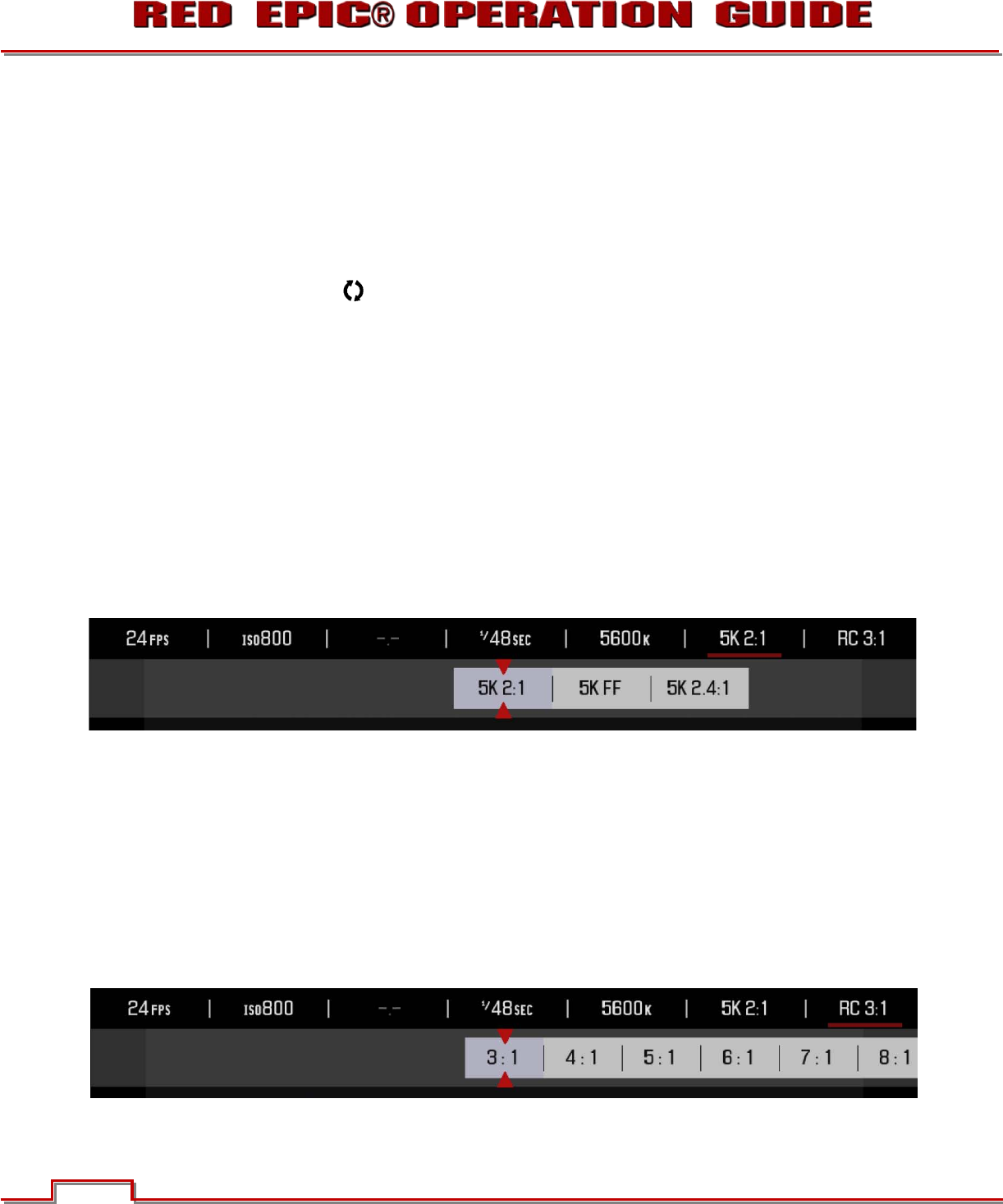

RECORD RESOLUTION
To adjust Record Resolution, navigate the Cursor to the RESOLUTION icon in the Upper Status Row and
press the Navigation Group ENTER key. Adjust to the desired value using the Scroll Wheel and press
ENTER a second time to confirm.
If using a Touch Screen, press the RESOLUTION ICON, adjust RESOLUTION by sliding your finger left /
right, or tap on the desired resolution, and then press anywhere else on the touch screen to confirm.
The following Recording Resolutions are currently available:
x 5K 2:1 x 5K 2.4:1 x 5K FF
RECORD QUALITY (REDCODE)
