Version 1.4.0 SVN 29352 BETA

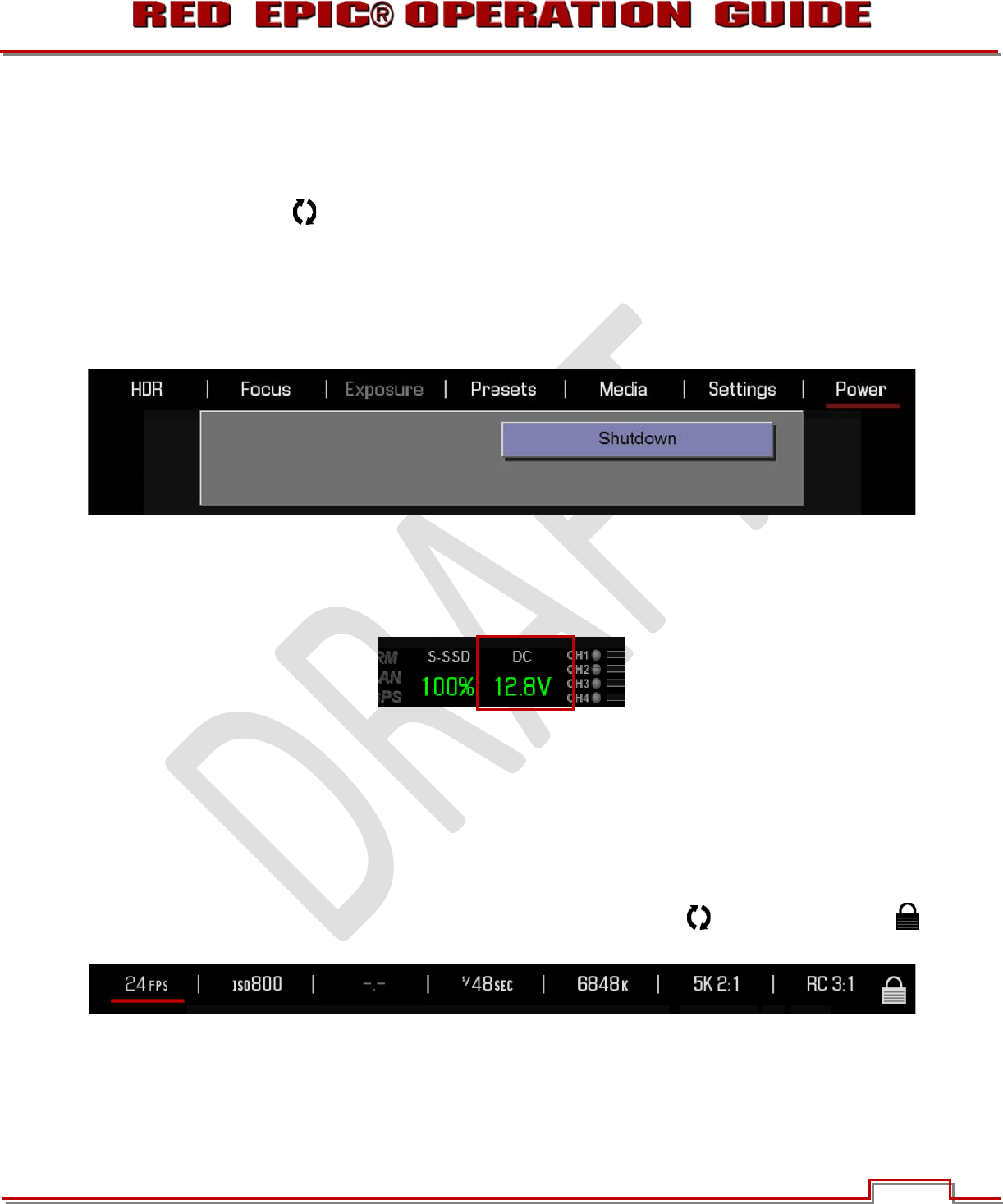

POWER DOWN

THROUGH POWER MENU

1. Select the MENU icon in the right corner of the Upper Status Bar to reveal the Secondary Menus.

2. Select POWER.

3. Select SHUTDOWN.

4. The camera will immediately power down.

USING POWER STATUS DISPLAY

1. Select the POWER status located between the audio channels and media remaining indicator, to

reveal the same menu illustrated above.

2. Select SHUTDOWN.

3. The camera will immediately power down.

LOCK / UNLOCK TOUCHSCREEN OPRERATION

LOCK

To lock out the touchscreen operation, touch and hold the MENU icon until the LOCK icon

displays; indicating the touchscreen has been locked out. When locked, the main menu will be displayed.
