Version 1.4.0 SVN 29352 BETA

32 32

BASIC OPERATION

This section describes basic operation, starting from power up, Viewfinder layout and Menu navigation.

POWER SOURCES

SIDE HANDLE

The optional Side Handle accepts one 30Wh REDVOLT™ battery, which can power the camera and

typical accessories for approximately 30 minutes when recording in 24 fps RAW 5K MOVIE mode.

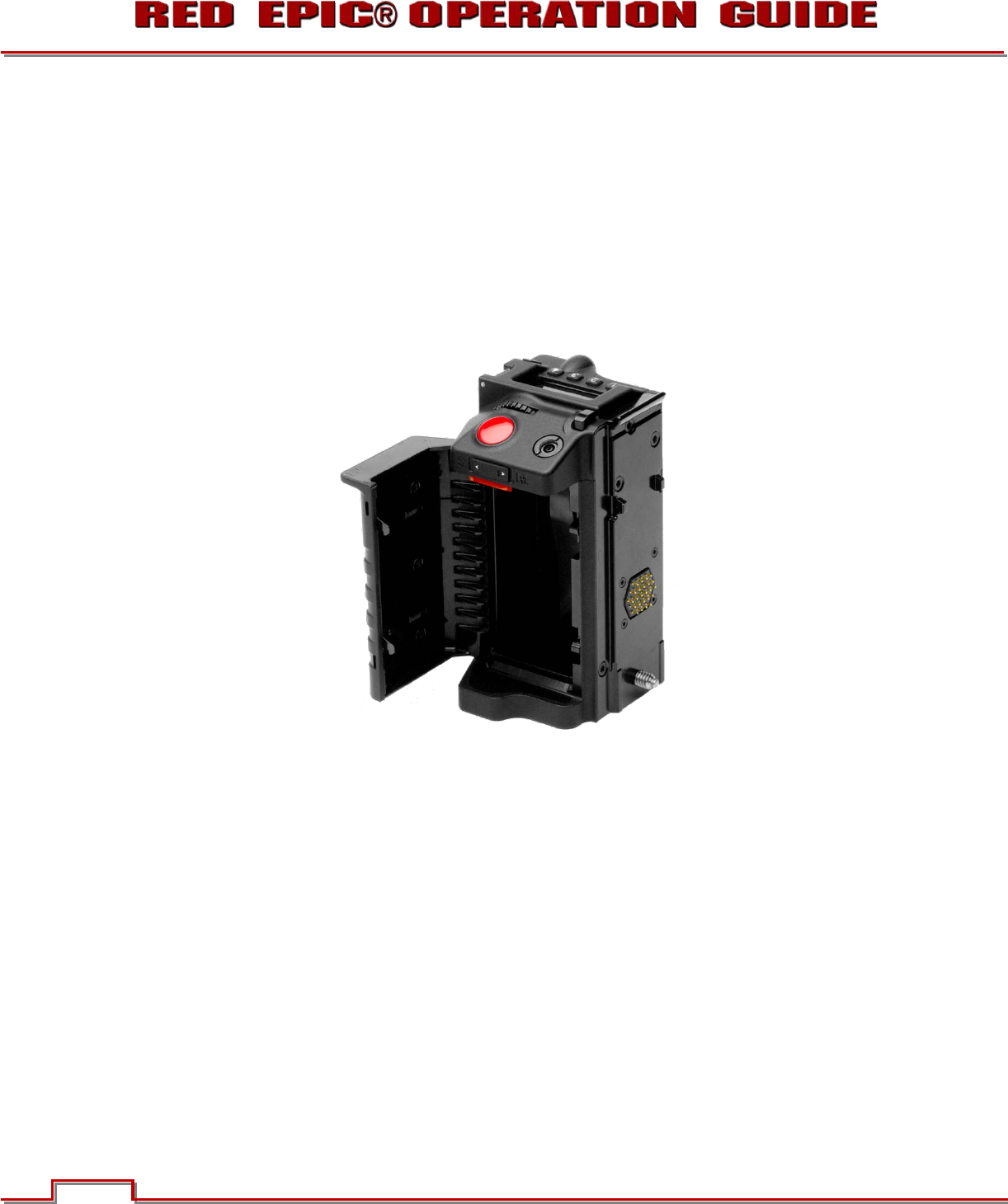

Figure 15: Side Handle Battery Compartment

EXTERNAL DC POWER

EPIC accepts input voltages between 11.5V - 17V D.C and can draw a maximum current of 12 Amps.

x An appropriate 150W supply with DC output rated at 15V 10A is available from RED Digital Cinema.

x RED BRICK™ 140Wh batteries may be used with the camera via an adaptor cable (p/n 140-0135).

x 4-pin XLR DC power sources may also be used with the camera via an adaptor cable (p/n 140-0160).
