Version 1.4.0 SVN 29352 BETA

28 28

x Soft Menus Keys 1-3: Function defined by LCD screen.

- Soft Menu 1 - Adjust ISO.

- Soft Menu 2 - Adjust Shutter Speed.

- Soft Menu 3 - Adjust White Balance.

x Navigation Group: Allows navigation through camera menus, selection of camera parameter and

adjustment of selected camera parameter.

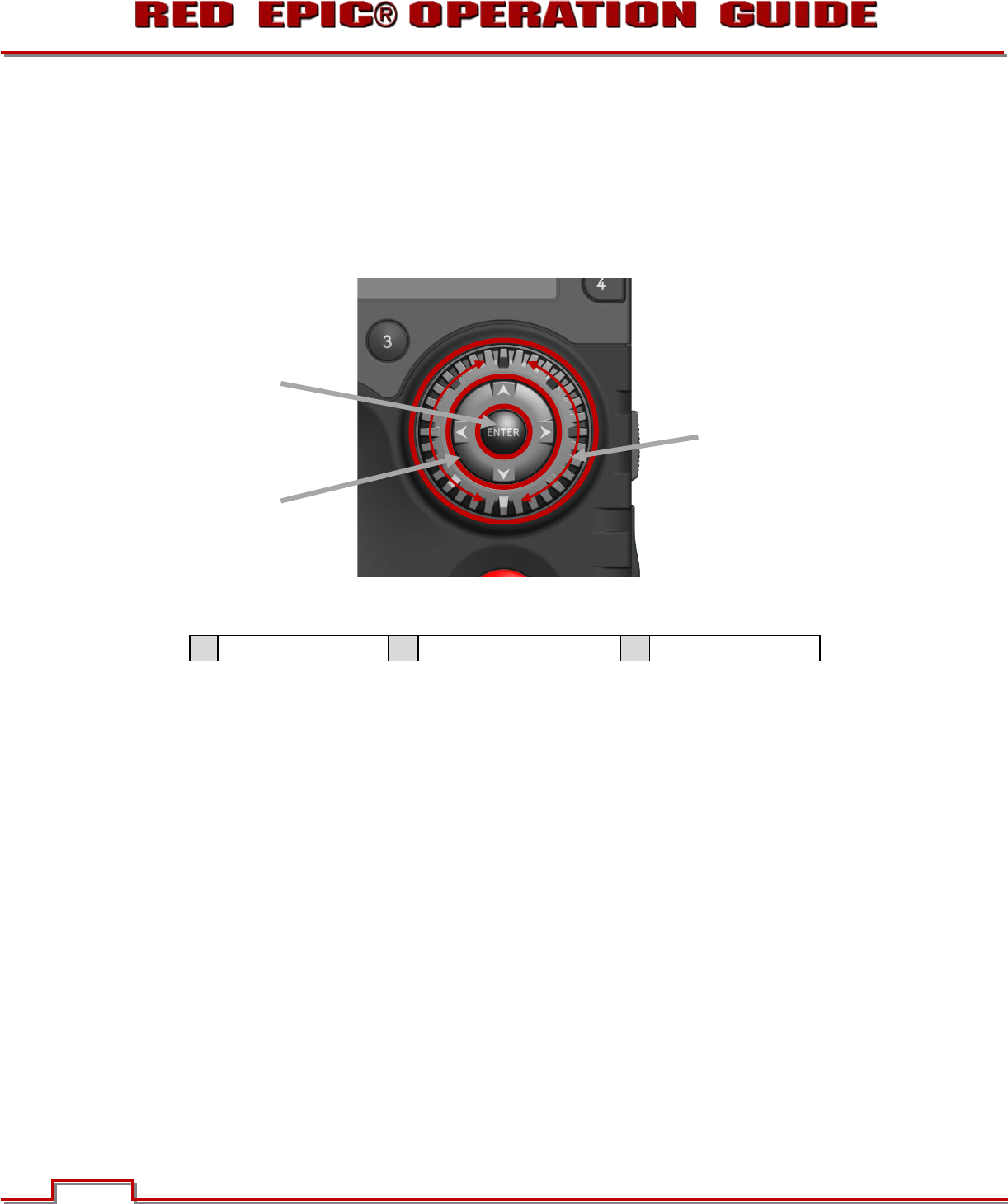

Figure 11: Side Handle Navigation Group

Scroll Wheel

Direction Keys

Enter Button

- Scroll Wheel: Selects and adjusts selected camera parameter value.

- Direction Keys: Navigates camera menus and may select parameter for adjustment.

- Enter Button: Confirms selected parameter value adjustment.

x Focus / Record Button: Touch for Auto Focus, fully depress to Start or Stop Record.

x Soft Menus Keys 4-8: Functions defined by LCD screen. Not active at this time

x Power / Lock Slider: Slide and hold down to power up / down REDmote. Slide up to lock keys.
