Operation Manual

Version 1.4.0 SVN 29352 BETA
APRIL 19, 2011 ©2011 RED.COM INC.
27
REDMOTE
This section describes the physical controls on the REDmote.

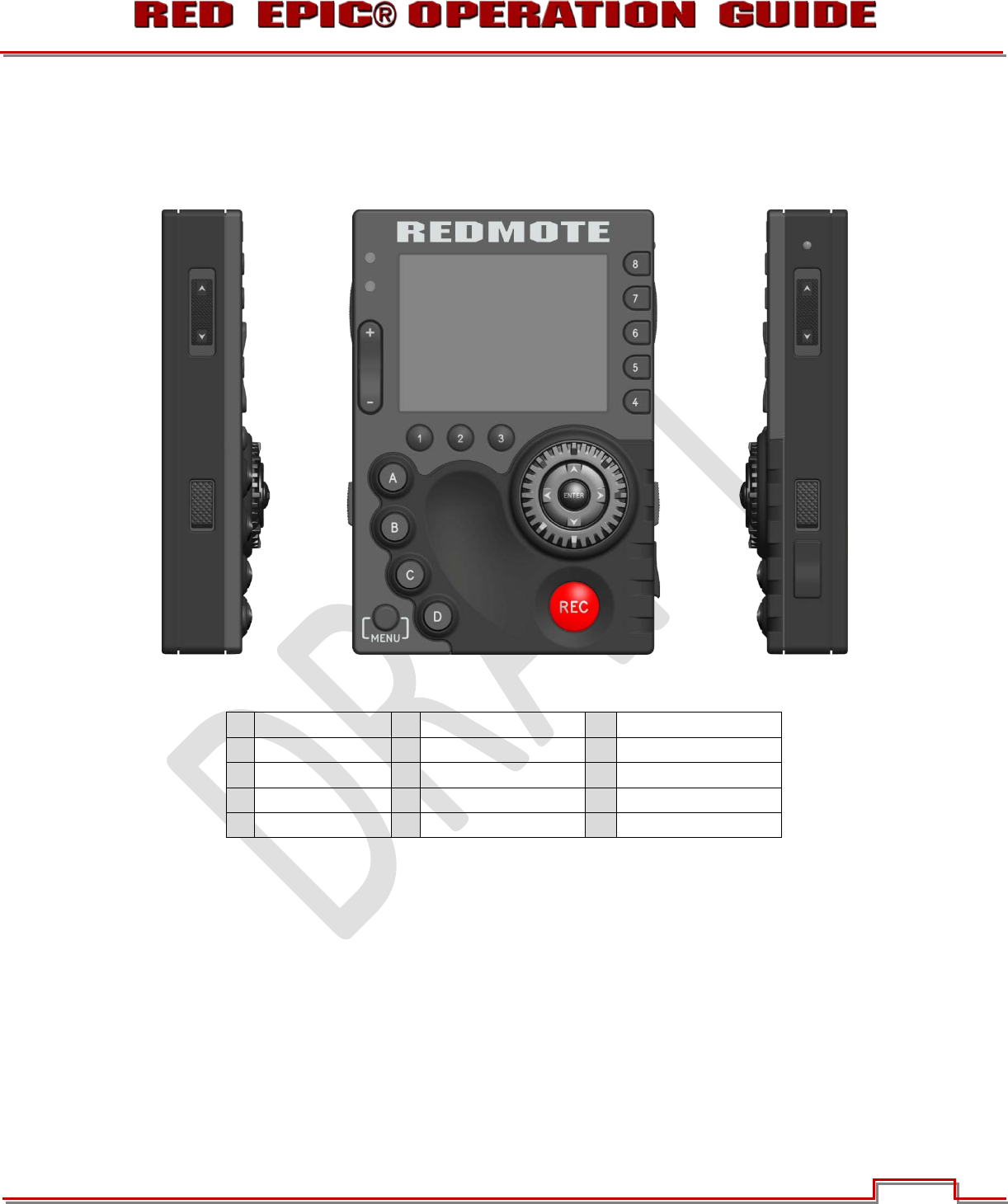

Figure 10: REDmote Controls
A
Still/Motion Slider
F
User Keys A-D
K
Soft Menu Keys 4-8
B
Release Button (L)
G
MENU Button
L
Ambient Light Sensor
C
Record LED
H
Soft Menu Keys 1-3
M
Power/Lock Slider
D
Power LED
I
Navigation Group
N
Release Button (L)
E
Rocker Switch
J
Focus / Record Button
O
USB Connector
x Stills / Motion Slider: Allows selection of STILLS or MOVIE operational modes.
x Rocker Switch: Provides continuous adjustment of parameter specified in USER KEYS menu.
x User Keys: Press to initiate camera functions as defined in USER KEY menu.
Default settings for User Function Keys A-D are as follow:
- User Key A – Enables (Auto) Focus Indicator
- User Key B – Enables White Balance calculation
- User Key C – Enables 1:1 Focus Check
- User Key D – Enables false color Exposure Check.
x Menu Button: Press to access / camera setup menus.
C
D
A
B
E
G
F
H
J
I
O
N
K
L
M
