Version 1.4.0 SVN 29352 BETA

20 20

SIDE SSD MODULE

CF or SSD Slot

User Key 1

User Key 2

Focus / Record Button

Media Indicator

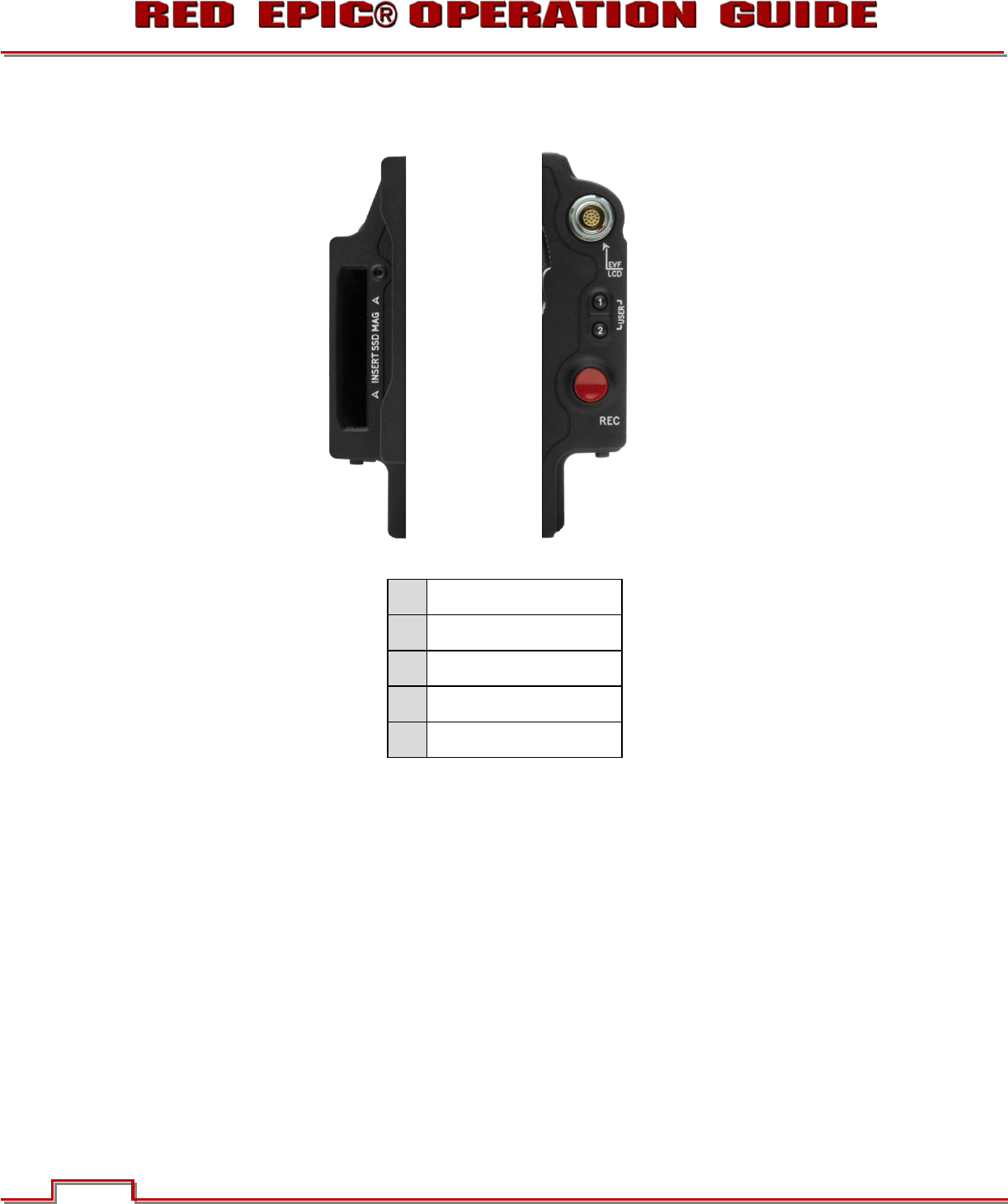

Figure 5: Side CF / SSD Controls

x CF or SSD Slot: Slot for REDFLASH CF or REDMAG 1.8” SSD Media.

x User Key 1: Initiates user defined camera function. Default: 1:1 Magnify

x User Key 2: Initiates user defined camera function. Default: False Color: Exposure.

x User Key 1 + User Key 2 : Press both keys to Eject (unmount) REDMAG 1.8” SSD Media

x Focus / Record Button: Touch for Auto Focus, fully depress to Start or Stop Record.

x Media Indicator: When media is inserted and ready to record, the LED illuminates Green. When no

media is present, the LED is off.

FRONT

REAR
