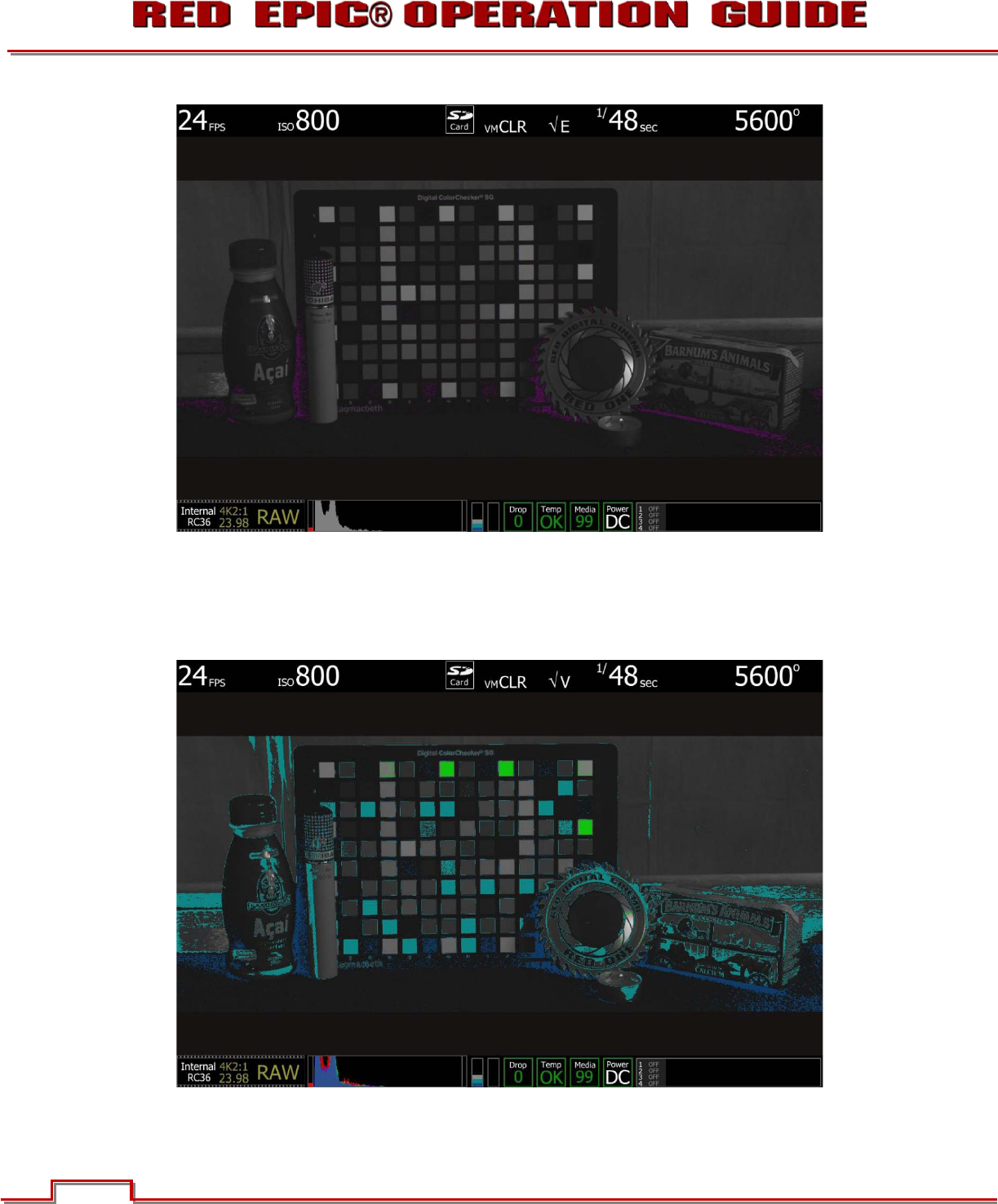

ISO 800 - False Color: Exposure

Select False Color – Exposure: note the √ E icon in the GUI when active. This mode allows us to

visualize where in the image underexposure is taking place. These areas are indicated in purple. It is

clear those areas are under the matchbox and coin, and between the bottle and cigar holder.

ISO 800 - False Color: Video
