Version 1.4.0 SVN 29352 BETA

138 138

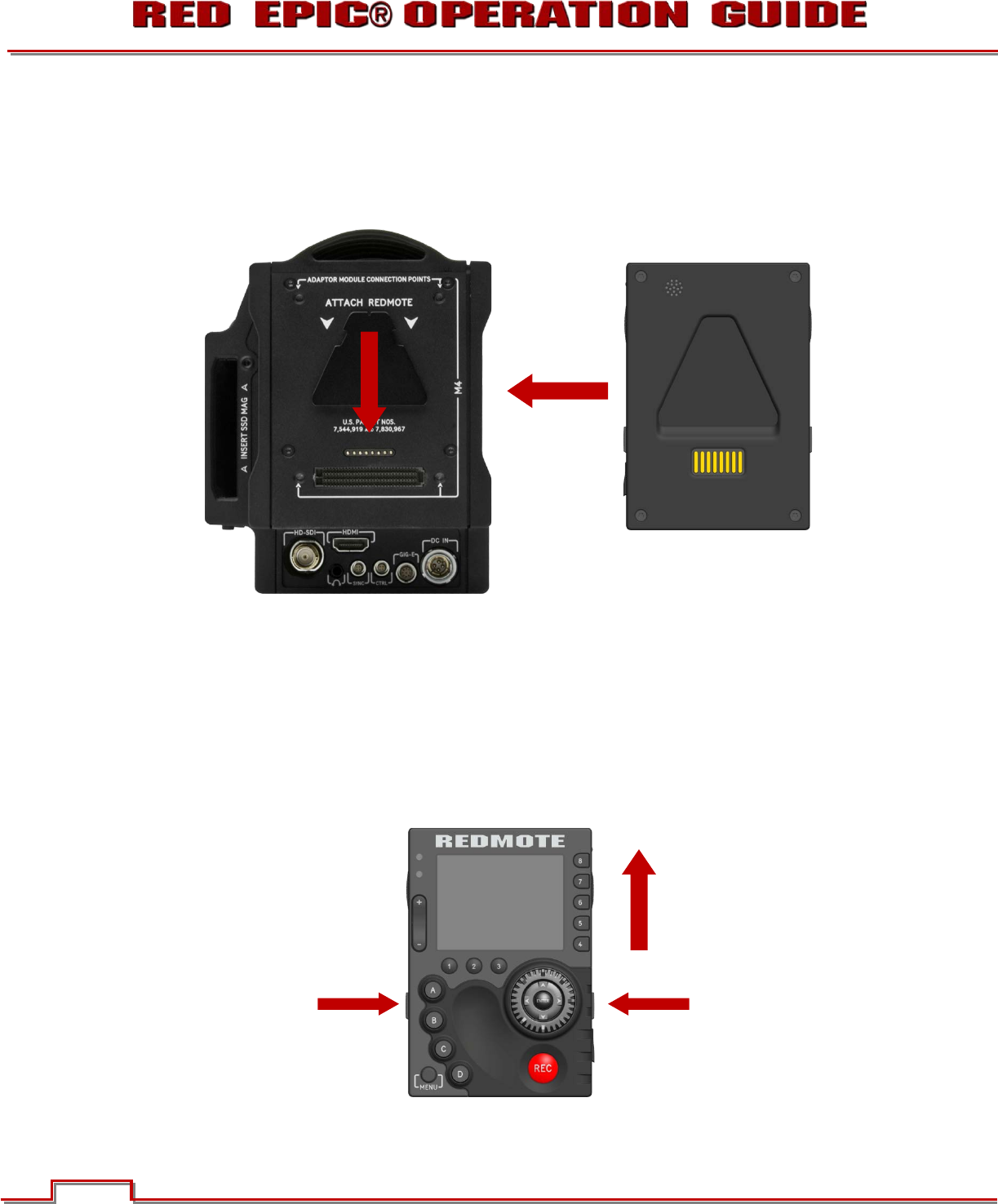

PHYSICAL

CONNECTING (DOCKING)

1. Place the female V-Mount of the REDmote over the male V-Mount of the camera/module.

2. Press down until a click is heard which indicated the REDmote is securely attached.

NOTE: If the camera is ON, the REDmote will automatically power UP when connected.

REMOVING (UNDOCKING)

1. Depress the two (2) release buttons located on the sides of the REDmote.

2. Slide the REDmote upward to release from the V-Mount of the camera/module.

3. Remove the REDmote.
