APPENDIX E: REDMOTE OPERATION

CONTROLS

This section describes the physical controls on the REDmote.

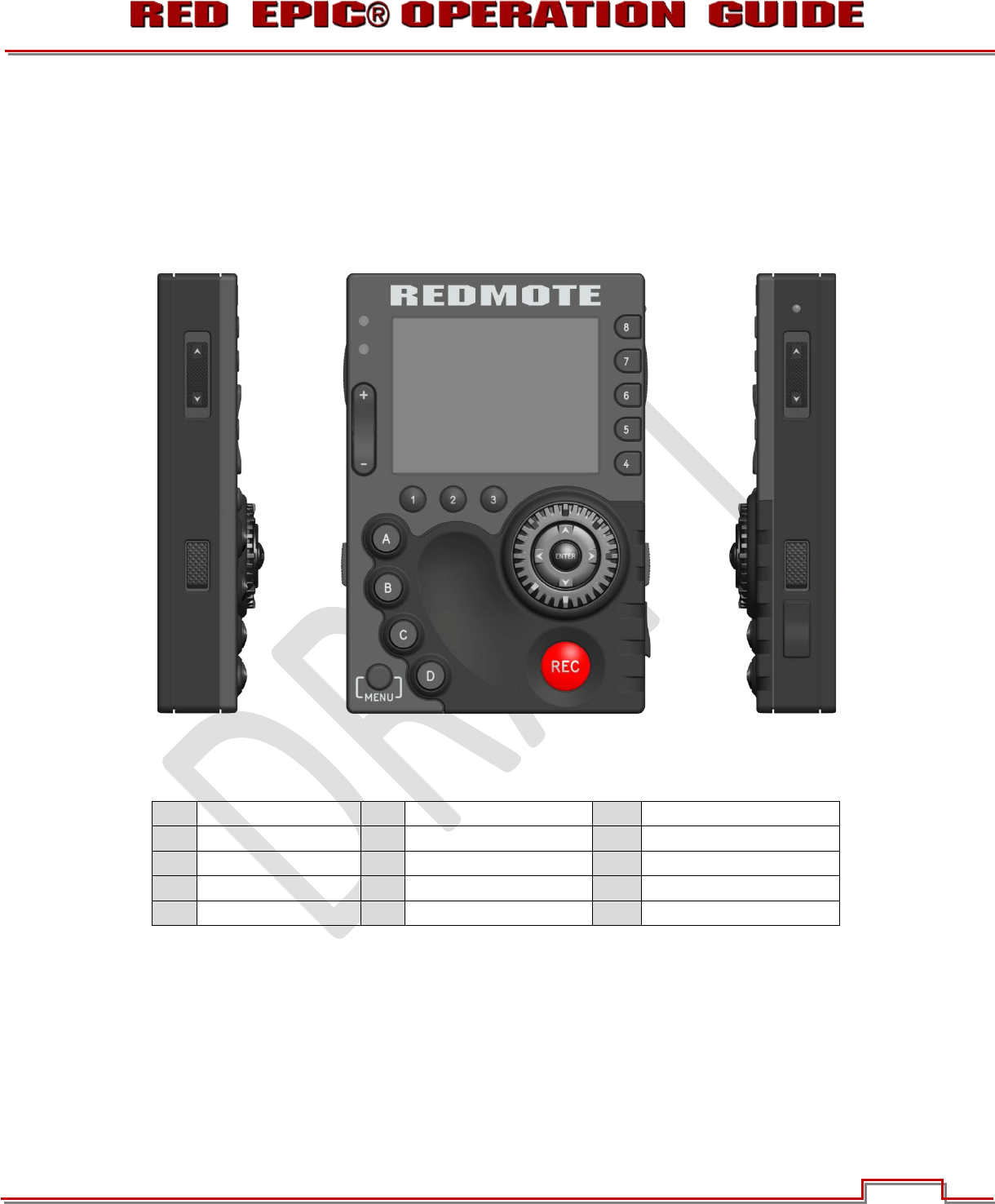

Figure 28: REDmote Controls

Still/Motion Switch

User Function Keys A-D

Soft Menu Keys 4-8

Release Button - L

MENU Button

Ambient Light Sensor

Record Status LED

Soft Menu Keys 1-3

Power/Lock Switch

Power Status LED

Navigation Group

Release Button - R

Zoom Rocker Switch

Focus / Record Button

USB Power Port

STILL / MOTION TOGGLE SWITCH

On the upper left edge of the REDmote is the STILLS/MOVIE toggle switch (A) used to switch between

STILLS operation (DOWN) and MOVIE operation (UP). The toggle switch is set to the MOVIE position,

the camera settings and defaults become movie specific. When the toggle switch is set to the STILLS

position, the camera settings and defaults become still photography specific.
