DC IN (POWER INPUT)
The 6-pin LEMO connector accepts a DC voltage between +11.5V and +17V DC. Power conditioning
circuits provide protection against reverse-polarity connection, ESD, under voltage, and over current.

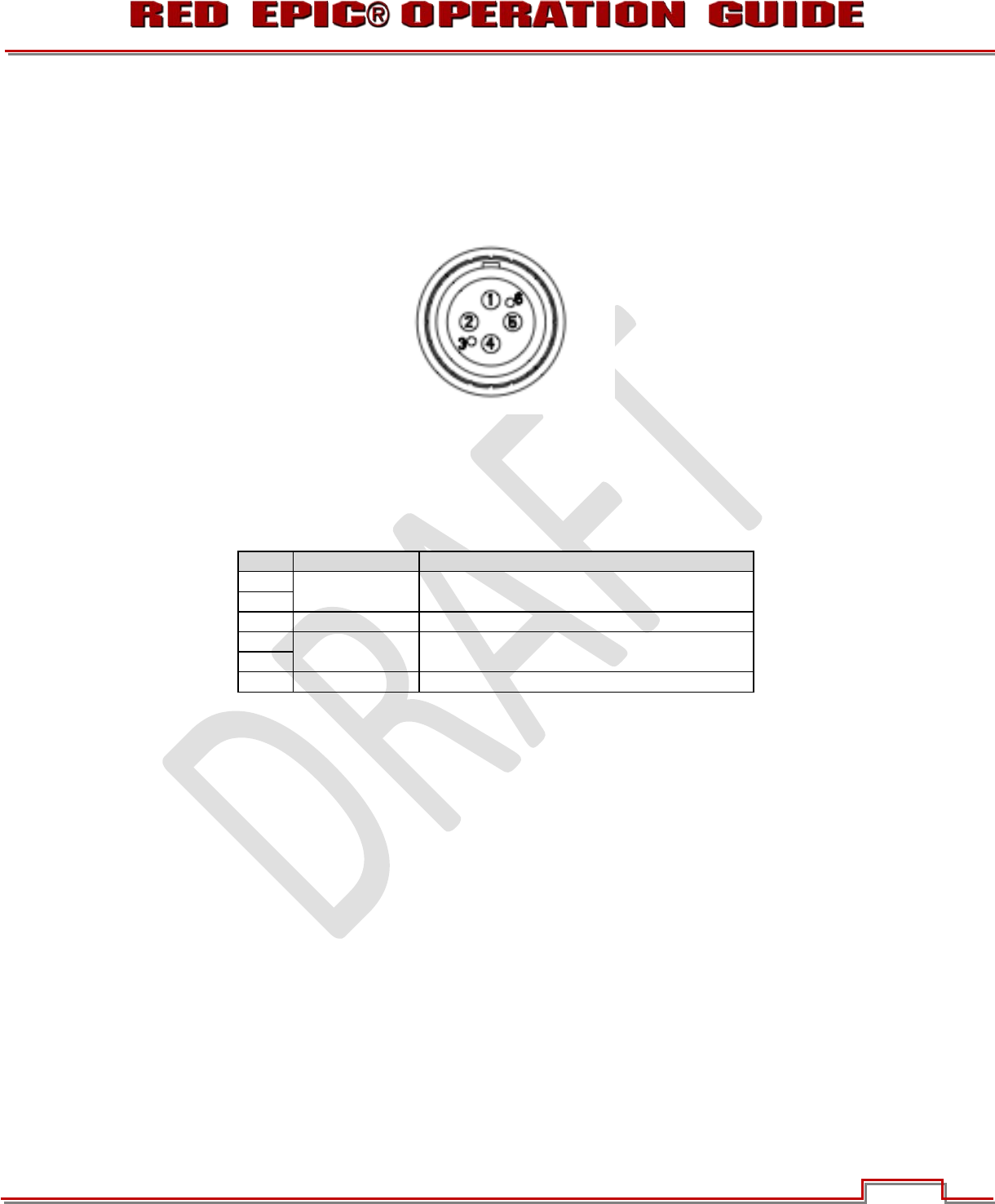

Figure 25: View into camera DC IN Power Input connector
Mating Connector: LEMO FGJ.1B.306.CWLD72Z
Pin Signal Description
1
+VBATT Power input, +11.5 to +17VDC
2
3 SCL-BATT Serial Battery Bus Clock
4
GROUND Power Return (Camera Ground)
5
6
SCA-BATT Serial Battery Bus Data
WARNING: It is very important that both pairs of +VBATT and GROUND pins are wired up. DO
NOT fabricate power cables with just one each of +VBATT and GROUND pins wired, as this may
cause damage to the camera’s power supply; this is not covered by Warranty.
NOTE: Two pre-fabricated DC Power input cables are available from RED Digital Cinema.
x Part # 140-0135 - DC Power - REDBRICK to Camera - 18 in (0.5m)
x Part # 140-0160 - DC Power - XLR to Camera - 10 ft. (3m)
