GIG-E (ETHERNET)
A 9-pin LEMO connector supports a Gigabit Ethernet port for remote camera setup, master / slave
camera-to-camera control and external metadata ingest. Supported command protocol is available on
request.

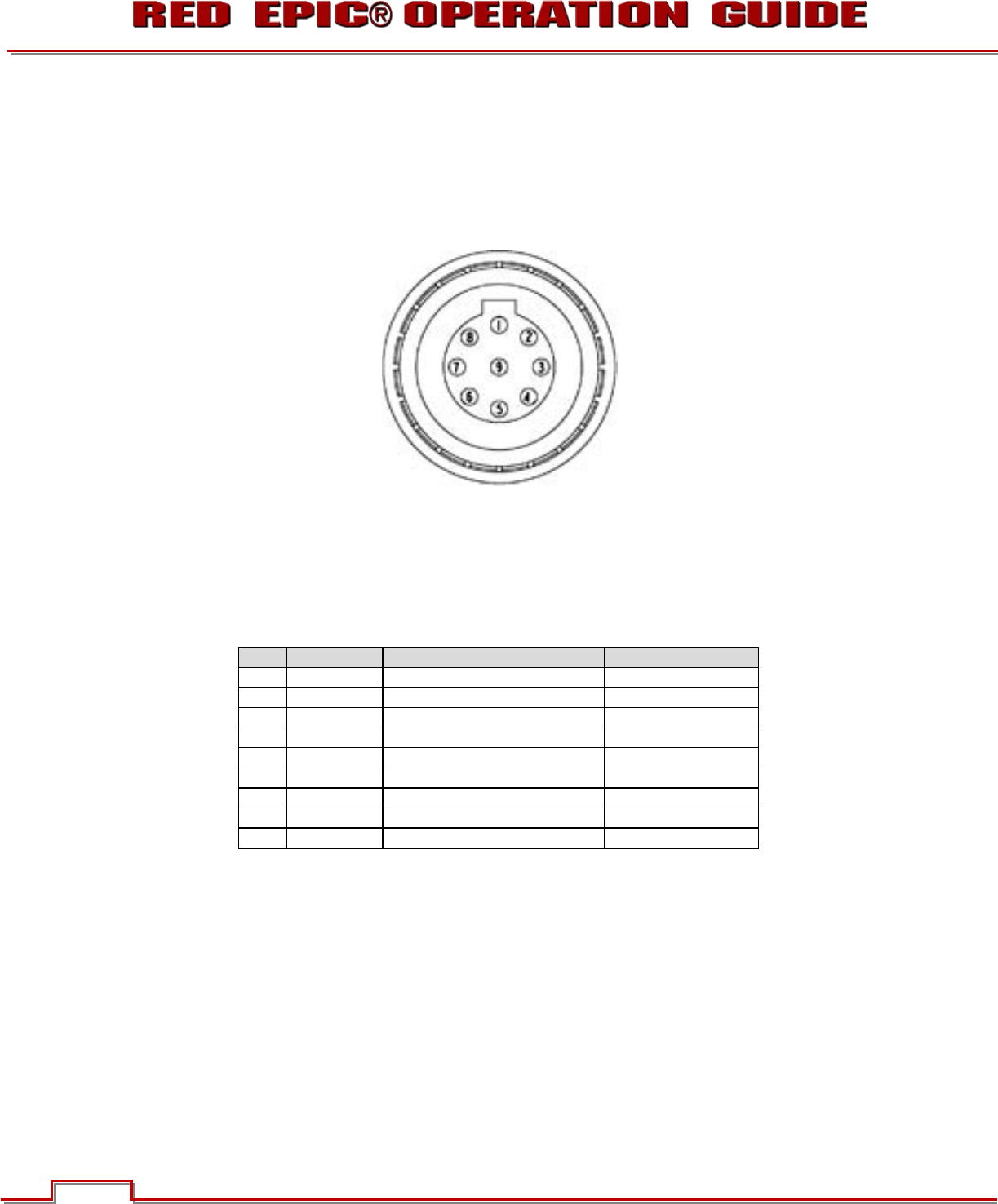

Figure 24: View into Ethernet Interface connector
Mating connector: FGG.0B.309.CLAD32Z
Pin Signal Description Direction
1
B1_DC + Data Pair C+ --
2
B1_DC - Data Pair C- --
3
B1_DD+ Data Pair D+ --
4
B1_DD - Data Pair D- --
5
B1_DA- Data Pair A- --
6
B1_DA+ Data Pair A+ --
7
B1_DB+ Data Pair B+ --
8
B1_DB- Data Pair B- --
9
- Do Not Connect --
NOTE: Two pre-fabricated Ethernet interface cables are available from RED Digital Cinema.
x Part # 140-0152 - Ethernet - Camera to Camera - 3 ft. (1m)
x Part # 140-0125 - Ethernet- Camera to RJ45 - 3 ft. (1m)
