HEADPHONE
A 3.5mm stereo jack provides two channels of adjustable level analog audio for monitor headphones.

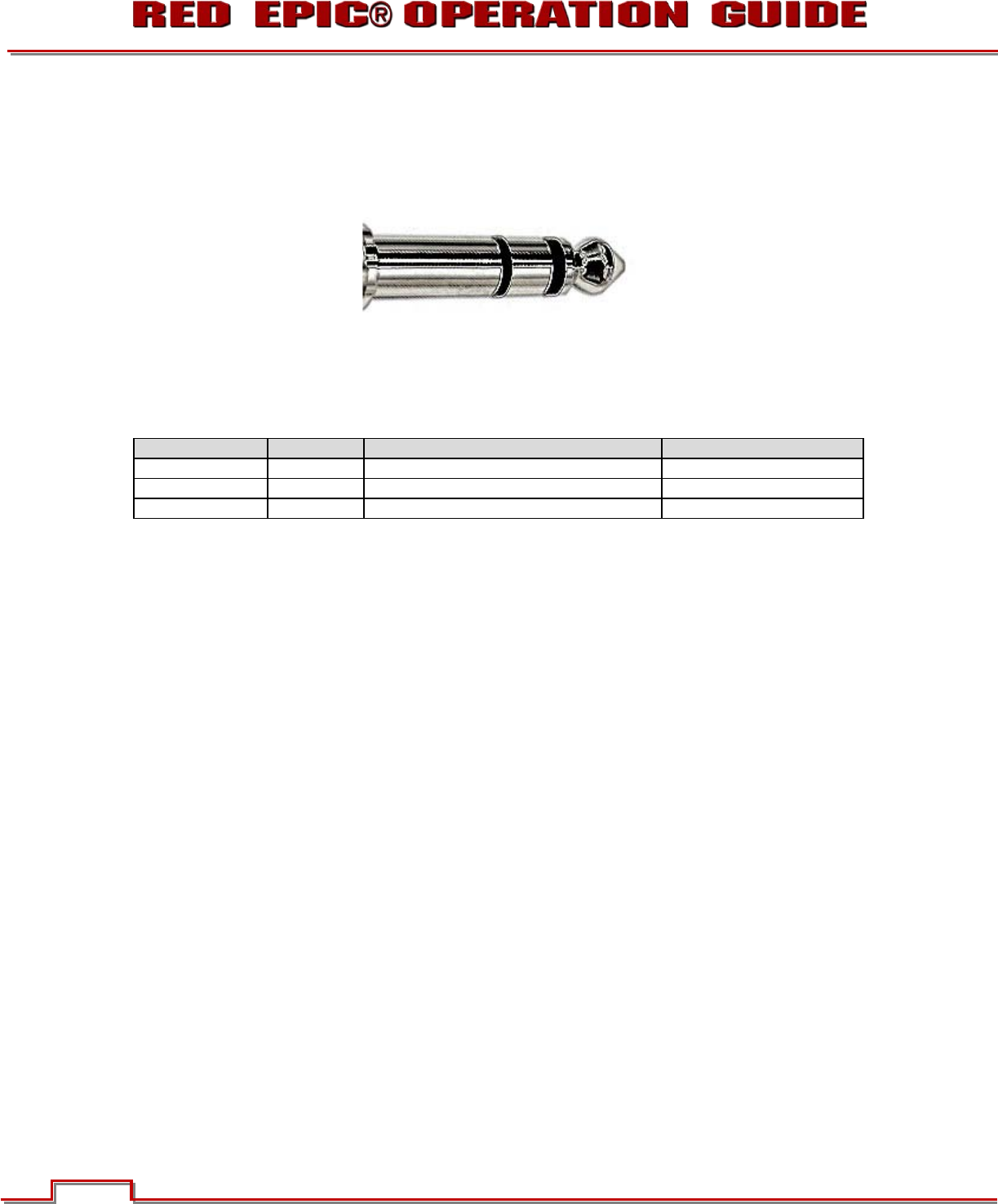

Figure 21: Headphone Output Connector
Pin Signal Description Direction
A (TIP)
LEFT Left channel audio Out
B (RING)
RIGHT Right channel audio Out
C (SLEEVE)
GND Camera ground --
The camera’s four audio channels may be monitored in pairs: either 1L - 2R or 3L - 4 R or as a quad mix
of 1+3L – 2+4R based on the MIX parameter. Default is 1L-2R.
Output volume may be adjusted as follows.
Volume: (master volume) Adjusts headphone volume equally for left and right outputs.
Range is -18dB to 0dB in 1dB steps. Default is -9dB.
NOTE: for maximum output signal quality, only use high impedance headphones.
A
B
C
