Version 1.4.0 SVN 29352 BETA

105

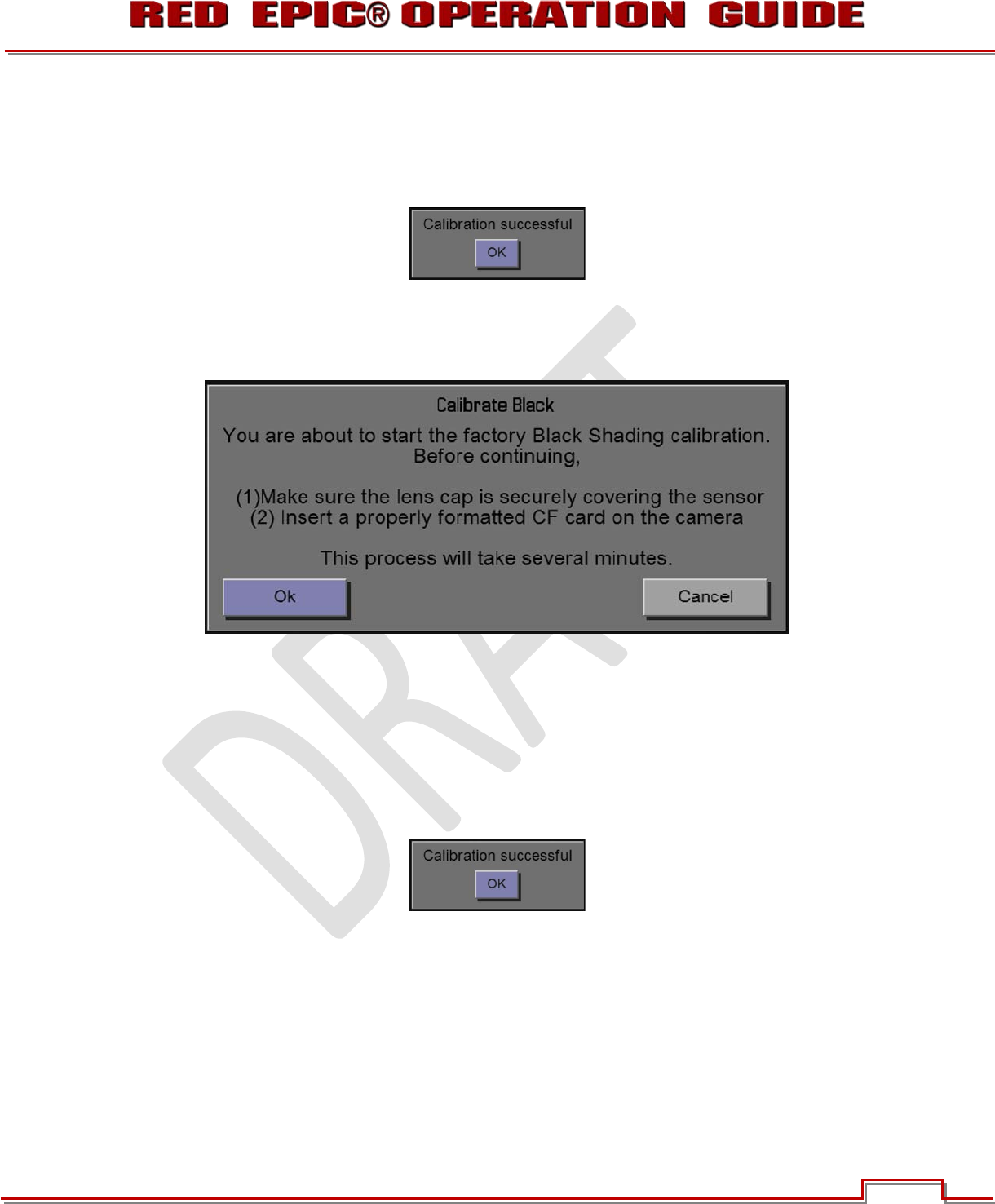

3. Select OK to perform the F24 Light Shading calibration. A status screen will appear showing

progress in percent.

4. When the F24 Light Shading calibration is complete, CALIBRATION SUCCESSFUL is displayed.

Select OK.

BLACK

When selected, a screen will appear asking if you wish to proceed with Black Shading calibration.

Black Shading calibration procedure:

1. Ensure the lens cap is securely covering the sensor, preventing entry of any light source.

2. Ensure a properly formatted SSD is attached to the camera and properly formatted.

3. Select OK to perform the Black Shading calibration. A status screen will appear showing progress in

percent.

4. When the Black Shading calibration is complete, CALIBRATION SUCCESSFUL is displayed. Select

OK.
