Version 1.4.0 SVN 29352 BETA

102 102

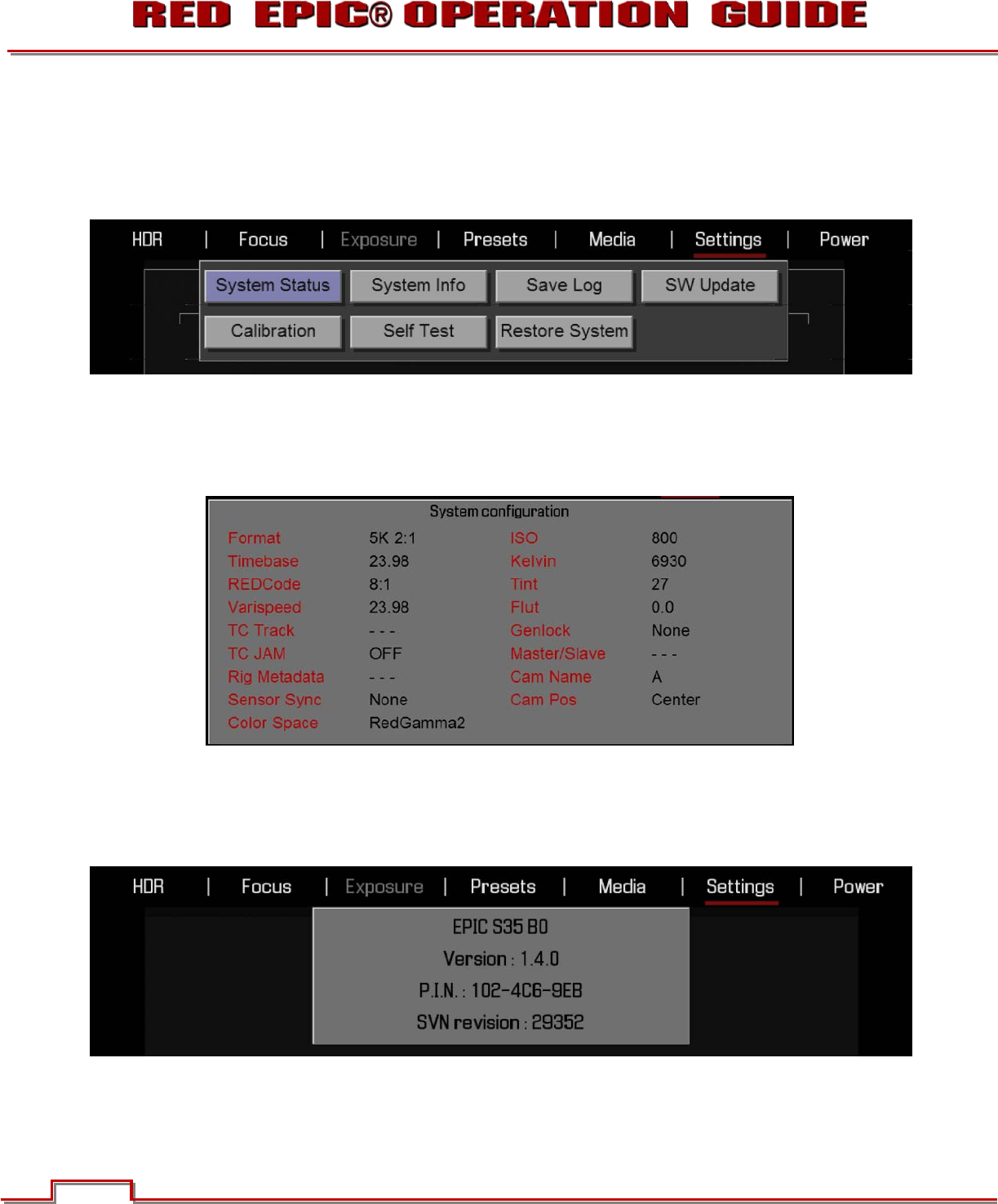

MAINTENANCE

The maintenance menu allows the user to check system status and information, save the camera

diagnostic LOG to attached media, perform a software update, calibrate the sensor, perform a camera

self test, and reset system settings to factory defaults.

SYSTEM STATUS

When selected the Viewfinder output(s) will display the System Status screen. This screen provides a

summary of all operational settings currently applied to the camera.

SYSTEM INFO

When selected the Viewfinder output(s) will display the camera Model, current firmware Version, installed

and camera P.I.N.
