User Manual

29
Line 2
Alarm n
Access
P
D
dISP
LOCS
F1
F2
P
D
Pro
NO
Pro
dISP
LOCS
Ln2
ALr
ALn
Ln2
LOC
Line 2
Band n
Access
bdn
Ln2
LOC

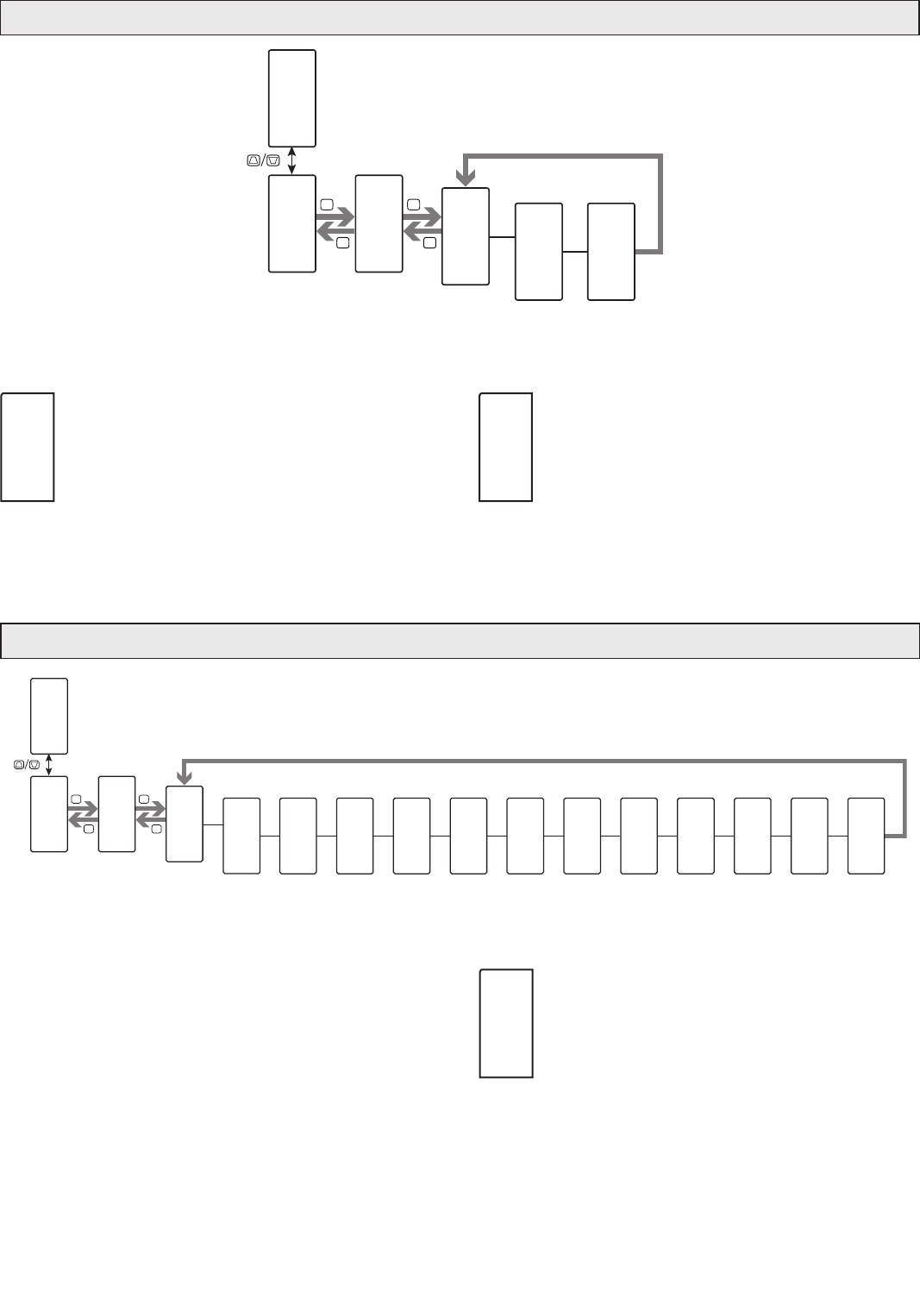

display parameTers: line 2 parameTer value aCCess - alarms (ALr)
LINE 2 ALARM ACCESS
LOC drEd dEnt PrEd PEnt HrEd HEnt
When configured for dEnt, PEnt or HEnt, the Alarm n value can be
adjusted in the selected display loop by using the ! and @ keys
while viewing ALn. When configured for dEnt, the P key must be
pressed to select the item prior to changing the value.
LINE 2 BAND/DEVIATION ACCESS
LOC drEd dEnt PrEd PEnt HrEd HEnt
When configured for dEnt, PEnt or HEnt, the Band/Deviation n
value can be adjusted in the selected display loop by using the ! and
@ keys while viewing bdn. When configured for dEnt, the P key
must be pressed to select the item prior to changing the value.
ALn
Ln2
LOC
bdn
Ln2
LOC
Line 2
Setpoint Select
Access
P
D
dISP
LOCS
F1
F2
P
D
Pro
NO
Pro
dISP
LOCS
Ln2
FNCt
SPSL
Ln2
LOC
Line 2
Manual/Auto
Access
trnF
Ln2
LOC
Line 2
PID Select
Access
PSEL
Ln2
LOC
Line 2
Setpoint
Ramping Access
SPrP
Ln2
LOC
Line 2
Integral Lock
Access
ILOC
Ln2
LOC
Line 2
Tuning Select
Access
tunE
Ln2
LOC
Line 2
Reset High
Access
r-HI
Ln2
LOC
Line 2
Reset Low
Access
r-Lo
Ln2
LOC
Line 2
Reset High-Low
Access
r-HL
Ln2
LOC
Line 2
Reset Alarm
Access
r-AL
Ln2
LOC
Line 2
List A/B
Access
LISt
Ln2
LOC
Line 2
Print
Access
Prnt
Ln2
LOC
display parameTers: line 2 user funCTiOn aCCess - funCTiOns (Fnct)
LINE 2 USER FUNCTION ACCESSIBLE ITEMS
The following list of User functions can be made available in the Display
(dEnt), Parameter (PEnt) or Hidden (HEnt) display loops. The more critical and
frequently used Functions should be first assigned to the User Inputs and User
Function keys. If more functions are needed than what can be obtained with
User Inputs, this feature will provide a means to provide that access. Please refer
to the USER INPUT / FUNCTION KEY PARAMETERS (USEr) section for a
detailed description of the available functions.
SPSL ILOC PSEL r-HI r-HL LISt*
SPrP trnF tunE r-Lo r-AL Prnt
* Also available as a read-only item in the Display (drEd), Parameter (PrEd)
or Hidden (HrEd) Display loops.
LINE 2 PARAMETER LIST A/B ACCESS
LOC drEd dEnt PrEd PEnt HrEd HEnt
When configured for dEnt, PEnt or HEnt, the Parameter list can be
selected using a front keypad sequence. To select, push the P key
while viewing LISt x”. “x” will begin to flash, press the ! key to
select “A” or “b” and then press P key. The selected Parameter List
will become active and the display will advance to the next available item or
menu loop. See User Functions “Select Parameter List” for a description of the
list function. The Line 2 Parameter List provides a means of setting or viewing
the active parameter list.
LISt
Ln2
LOC
Basic Mode: 4 alarms max
Advanced Mode: 16 alarms max
