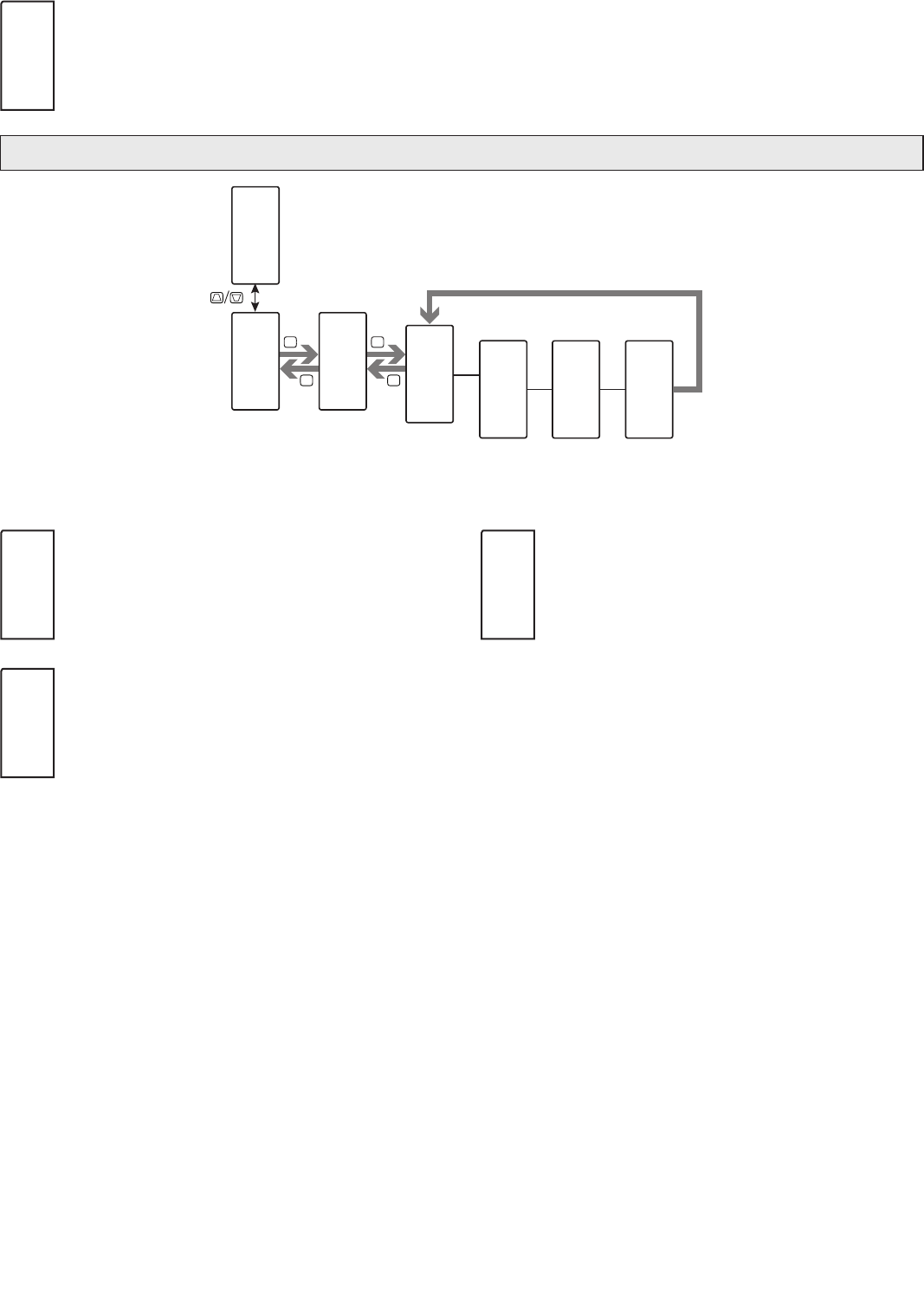

LINE 2 VALUE ACCESS PARAMETER SELECTION
INPt dISP Pid ALr FNCt
Select the display parameters to be displayed.
LOCS
Ln2
INPt
Line 2
Input Value
Access
P
D
dISP
LOCS
F1
F2
P
D
Pro
NO
Pro
dISP
LOCS
Ln2
INPt
INPt
Ln2
LOC
Line 2
MAX
Access
Line 2
MIN
Access
HI
Ln2
LOC
LO
Ln2
LOC
display parameTers: line 2 parameTer value aCCess - inpuT (INPt)
LINE 2 INPUT ACCESS
LOC drEd PrEd HrEd
Displays the controller process input reading on Line 2.
LINE 2 MAX ACCESS
LOC drEd dEnt PrEd PEnt HrEd HEnt
When configured for dEnt, PEnt or HEnt, the Max Display value can
be reset using a front keypad sequence. To reset, push the P key
while viewing the Hi value on Line 2. The display will show rHI NO.
Press the ! key to select YES and then press P key. The display will
indicate rSEt and then return to the Hi value parameter.
LINE 2 MIN ACCESS
LOC drEd dEnt PrEd PEnt HrEd HEnt
When configured for dEnt, PEnt or HEnt, the Min Display value can
be reset using a front keypad sequence. To reset, push the P key
while viewing the Lo value on Line 2. The display will show rLo NO.
Press the ! key to select YES and then press P key. The display will
indicate rSEt and then return to the Lo value parameter.
INPt
Ln2
LOC
HI
Ln2
LOC
LO
Ln2
LOC
