Network Tab
3.4.2.5 PPPoverEthernet
ThePPPoverEthernetmenuitemisusedtoconfigureaconnectionbybeingabletoconnectaDSLorcablemodem.

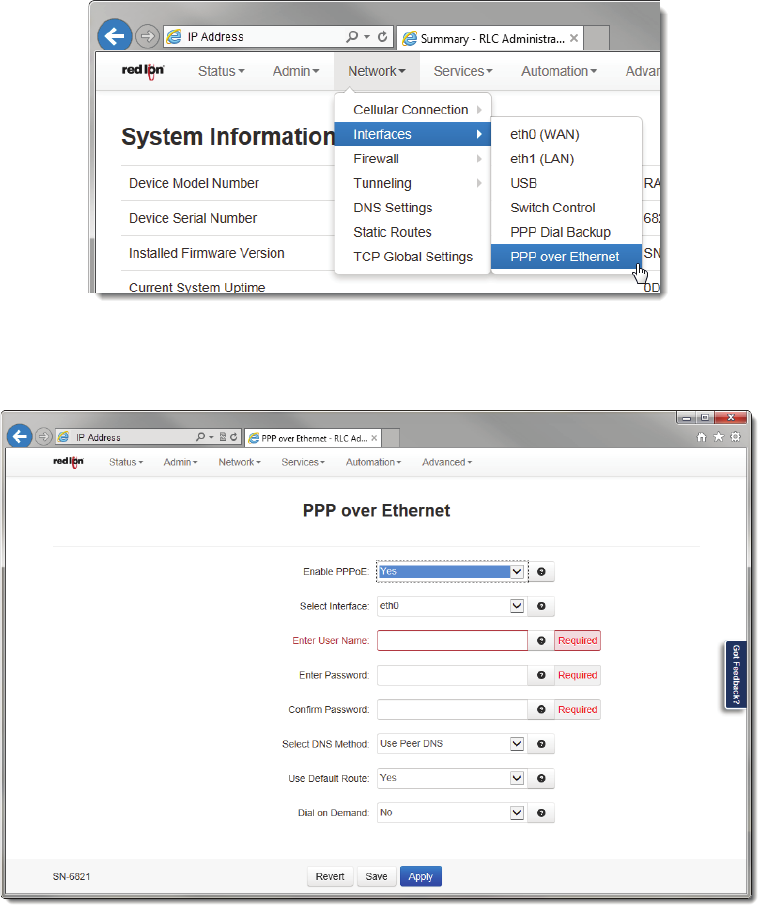

• ClickonthePPPoverEthernetmenuitemandthefollowingdialogwindowwillappear:
EnablePPPoE:SelectYestoenablethePPPoverEthernetserviceonthespecified
interfacewhentheApplybuttonis
clicked.Todisabletheservice,selectNoandclickApply.
SelectInterface:SelectthenameoftheEthernetinterfacetowhichthePPPoverEthernetserviceshouldbindby
choosingoneoftheoptionsavailableintheprovideddrop‐downlist.
EnterUserName(Required):
EntertheusernametobeusedwiththePPPoEinterfaceinthespaceprovided.Itistyp‐
icallyintheform[e-mail].
EnterPassword(Required):Enterthepasswor dtobeusedwiththePPPoEinterfaceinthespaceprovided.
ConfirmPassword(Required):Re‐inputthepasswordenteredinthe“Enter
Password”field.Thisentrymustmatch
exactlythepreviouslyenteredpassword.
