Software User Guide 4
Connect PC to Red Lion Router
Chapter 1 Accessing the Web User Interface

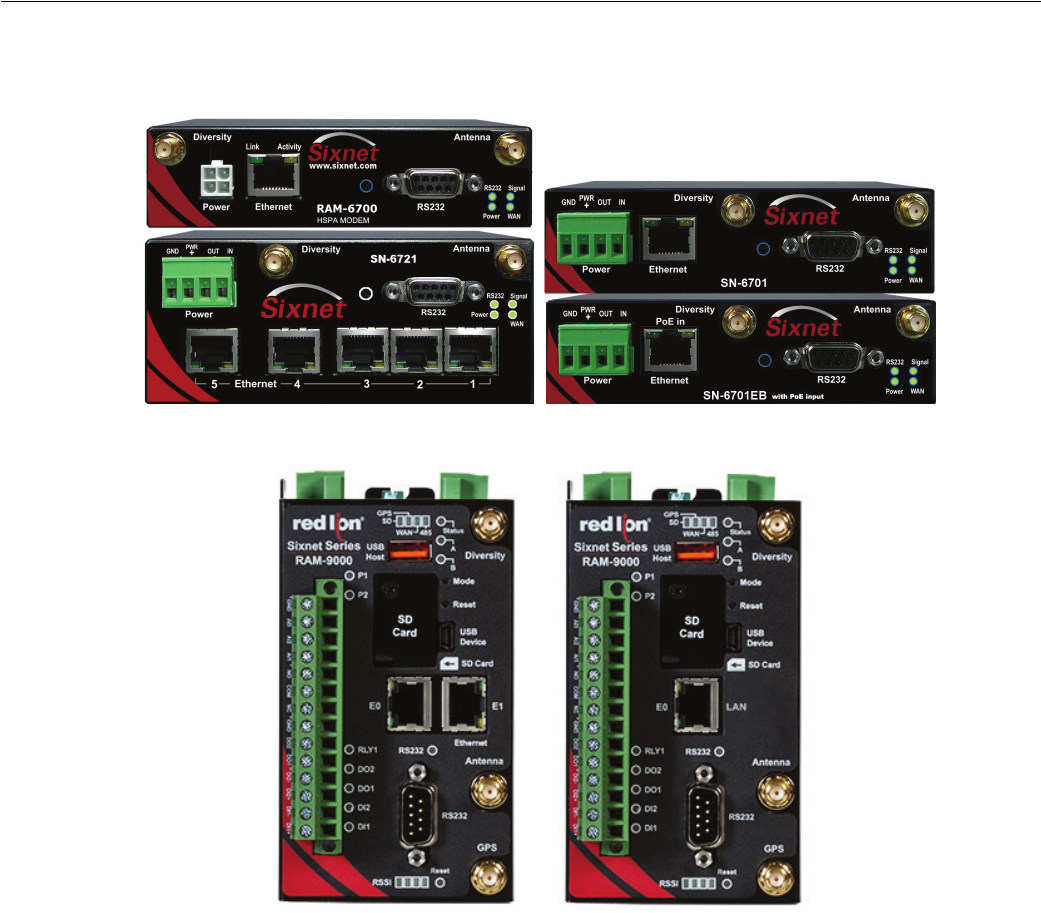

1.1 Connect PC to Red Lion Router
ConnectaCAT‐5orCAT‐6EthernetcablebetweenthelocalPCandtheRedLionrouter’sEthernetPort(s).
Note:IftheEthernetport’sgreenLEDislit,thisindicatesthattheconnectionisrunningat100Mbspeed.IftheEthernet
port’sgreenLEDisnotlit,thisindicatesthat
theconnectionisrunningat10Mbspeed.TheyellowLEDindicatesthe“link”
statusoftheconnection.
Yellowsteady=Linkestablished.Yellowflashing=Datapacketsarebeingtransferred.
