Status Tab
networks.Yourlocaldefaultgatewayisagoodtest,andthisIPcanbefoundintheyourroutingtable.Also,acom‐
monlyavailableinternetserveravailabletotestagainstis4.2.2.2

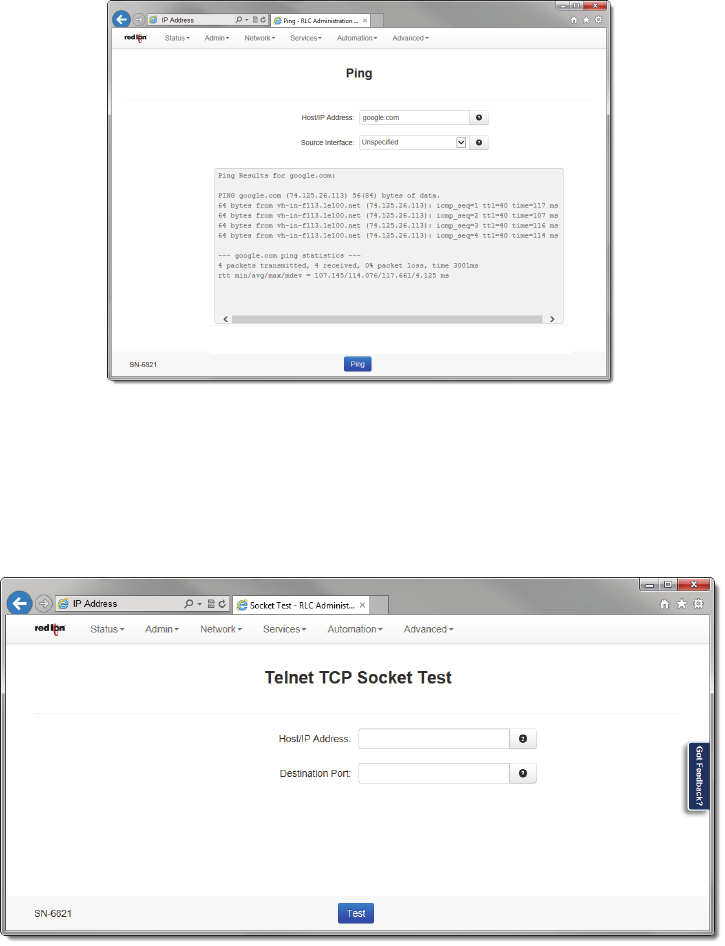

SourceInterface:TheSourceInterfaceofferstheoptionofusingdifferentinterfacestosendthePingthrough.This
is
usefulifyouhaveaVPNTunnelinplace.TestingtheconnectionthroughtheVPNTunnelisrequiredtoverifyconnec‐
tivitythroughthetunnel.
ChoosetheinterfacethattheVPNTunnelhaslistedfortheLocalSubnetend‐point,i.e.iftheLeftSubnetis
10.100.100.0/24andeth1has
10.100.100.1asitsIPAddress,thenchooseSourceInterfaceeth1.
SpecifyaHost/IPAddressatthehead‐endtoPingthroughthetunnel.
• ClickonthePingbuttontoseetheresult.
3.2.3.3 SocketTest
TheSocketTestmenuitemwi llallowyouthe“Telnet”todesireddestinationIPandPortaddressestoverifythesocket
availability.
Host/IPAddressfield:TypeintheIPAddressorURLyouwishtoconnecttoviaTelnet.
