Advanced Tab

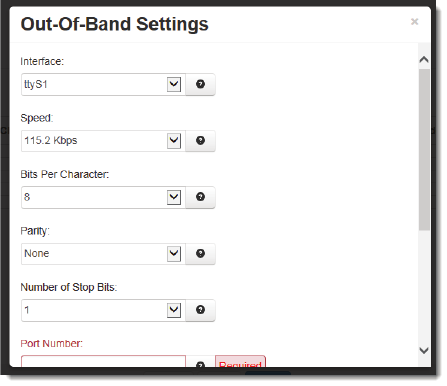

• ClickontheAddbuttontoaddaninstanceforOOBManagementandthefollowingwindowwillappear:
Interface:Selecttheinterfacetoused.
Note:ForSpeed,Bits,ParityandStopBits,consulttheconfigurationoftheremotedevicebeingattached;thissettingmustbecompatible.
Speed:Selectthedesiredinterfacespeedtobeused.
BitsperCharacter:Selectthewordlength(bitspercharacter)tobeused.
Parity:Selecttheparitytobeused.Consulttheconfigurationoftheremotedevicebeingattached,thissettingmust
becompatible.
NumberofStopBits:Selectthenumberofstop
bitstobeused.Consulttheconfigurationoftheremotedevicebeing
attached,thissettingmustbecompatible.
PortNumber(Required):Enteravalidportnumber(1‐65535)tobeusedfortheconnection.
Takecaretochooseaportnumbernotalreadyusedbyothersystemservices.ConsulttheStatus>Network>Socket
Statuses>TCPOnlymenuforalistofportscurrentlyinuse.PleasenotethataFirewallAllowrulewillneedtobe
addedforremoteaccessinNetwork>Firewall>PortAllow/ForwardingRules>ServiceAccessRules.
UseCISCOAPH:SelectYestoenabletheCISCOAPHorNotopreventit’suse.Therecommended
settingforthisfieldis
YeswhenconnectingtoaCiscoconsoleport.
UseLocalBinding:SelectYestoenableLocalBinding.LocalBindingwillpreventremoteaccesstothisport.Youwillbe
requiredtoTelnet/SSHtotheunit’scommandline,andthenTe lnettotheOOBportlocally(telnet
localhost<OOB
Port>).
TelnetServerMode:Thisoptioncontrolshowsomeoptionsnegotiationswill beperformedwithaTELNETclient.Rec‐
ommendedsettingis“Basic+dropLF&NUL”isacommonlyutilizedset ting.Thefollowingoptionsareavailable:
Disabled:NoTELNEToptionsnegotiationisperformed.
Basic:CommonTELNEToptionsnegotiationisperformed.
Basic+dropLF:Linefeedcharacters(x'0A)aredropped.
Basic+dropLF&NUL(CiscoPreferred):LFandNUL(x'00)charactersaredropped.
Basic+dropLF&NUL/HIGH:LF,NULandanycharacters>x'7F
aredropped.
