Software User Guide 148
Automation Tab
TheTestI/OinterfacehasbeenkeptsimpletomakemanagingthetestI/Oprocesseasierandkeepthescreenless
clutteredandeasiertolookatandquicklylocateyourtestvalues.
ScanRate:ThisisthetimeinwhichthescreenwillautomaticallyrefreshvaluesfromtheinternalI/ODB.
Idle
Timeout:Withthisenabled(checked),thebrowserwill stopscanningaftertwominutesofinactivity.
SelectType:Fromthedropdownlist,selectthetypeofI/Oyouwouldliketotest.ValidI/Otypesare:
StartAddress:OncetheI/Otypehasbeenselected,entertheStartAddress.
RegisterCount:Enter
theRegisterCount.
• ClickontheAddbuttontotesttheI/O.
ThemessageslogshowstherangeenteredandeachregisterthatcanbeeditedandmonitoredfortheanalogInputs.
YoumayentervalueshereandobserveyourIODBdatafromanotherdevice/locationtoseethose
valuesget
updated,oryoumayinitiateachangefromanotherdevice/inputandobservethechangespresentedhereonyour
TestI/Ointerface.
3.6.6 I/OSettings(RAM9000Series)
3.6.6.1 I/OControl

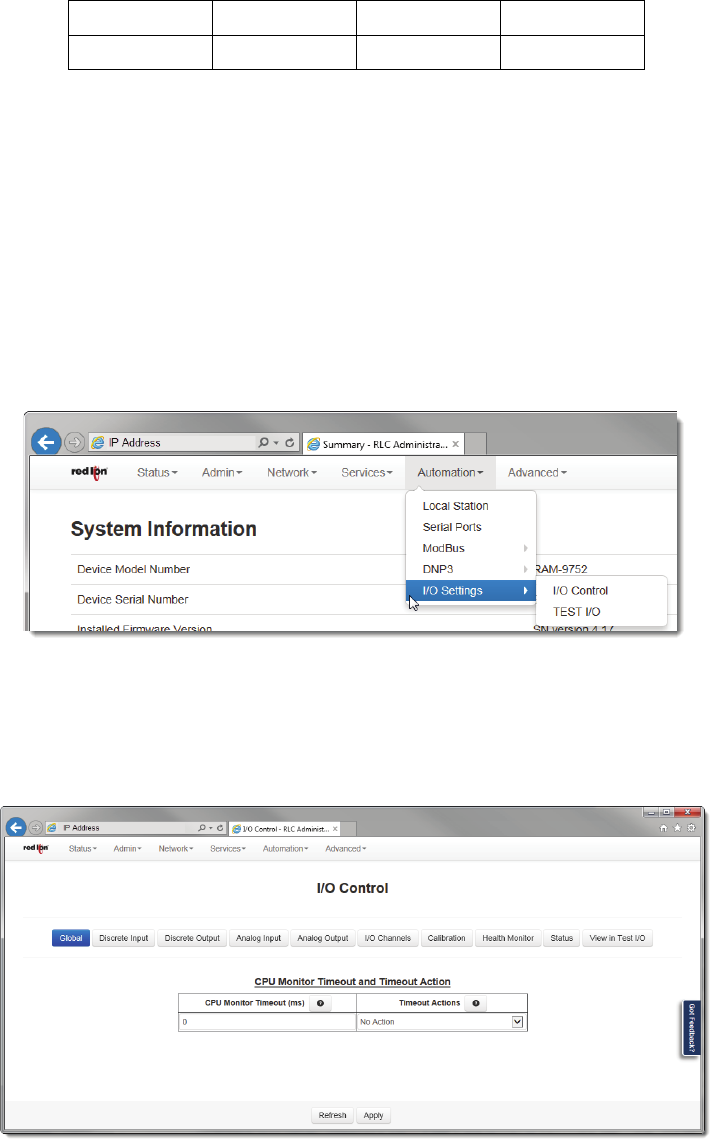

• ClickontheI/OCTRLmenuitemandthefollowingwindowwillappear:
AnalogIn DiscreteIn LongIn FloatIn
AnalogOut DiscreteOut LongOut FloatOut
