Automation Tab
Enablethisinterface:SelectYestoenabletheIO/CTRLInterface.
DigitalInputAddress:EntertheaddressofinternalIODBdatabaseforDigitalInputI/Ocontrol.Validvaluesforthis
fieldare1through65535asdefinedforspecifiedI/Otype.
DigitalInputCounterAddress:EntertheaddressofinternalIODBdatabasefor
DigitalInputCounter.Thevalidvalues
forthisfieldare1throughavalueofdefinedregisterallocationconfiguredforAnalogInputI/Otype.Theaddress
rangesaredisplayedonI/OTransferscreenunder‘DisplayofModbusDefaultSlaveAddresses’basedonconfigured
localregisterallocationforspecifiedI/Otype.
Note:
ThisaddresscannotbethesameaddressasAnalogInputAddress.Takecaretoselectauniqueaddresstobe
usedinAnalogInp u tIODBforDigitalInputCorner.
DigitalOutputAddress:Ent ertheaddressofinternalIODBdatabaseforDigitalOutputI/Ocontrol.Validvaluesforthis
fieldare1
through65535asdefinedforspecifiedI/Otype.
AnalogInputAddress:EntertheaddressofinternalIODBdatabaseforAnalogInputI/Ocontrol.Validvaluesforthis
fieldare1throughvaluedefinedregistersconfiguredforspecifiedI/Otype.TheaddressrangesaredisplayedonI/O
Transferscreenunder'DisplayOf
ModbusDefaultSlaveAddresses'basedonconfiguredlocalregisterallocationfor
specifiedI/Otype.
UpdateInterval(ms)(Re quired):Enterupdateinterval,inmilliseconds,forupdatingtheinternalIODBdatabasewith
valueofsupportedIO/CTRL.Therecommendedvalueforthisfieldis500msorhigher.
EnableAutoupdate?:SelectYestoenable
automaticupdatingoftheI/Oportsvalue.Manualupdatingisdisable
whileautoupdateisineffect.TherecommendedsettingforthisfieldisYes.
Selectupdateinterval:Selecttheupdateintervaltobeusedwhenautoupdateisenabledfromoneofthechoicesin
thedrop‐downlistprovided.
Choices(inseconds)include:3,5,10or15.
BeadvisedthatwhenconnectedviaCellularinterface,thedatacollectedwillcounttowardsyourtotaldataplan
usage.
Clickonthe“Save”buttontosavetheForwardingconfigurationinthemodbus.xmlfile.The“Apply”buttonwillsaveyour
settingsandapply
themimmediately.Toreverttothepreviousdefaults,clickonthe“Revert”button.
3.6.5.2 TestI/O

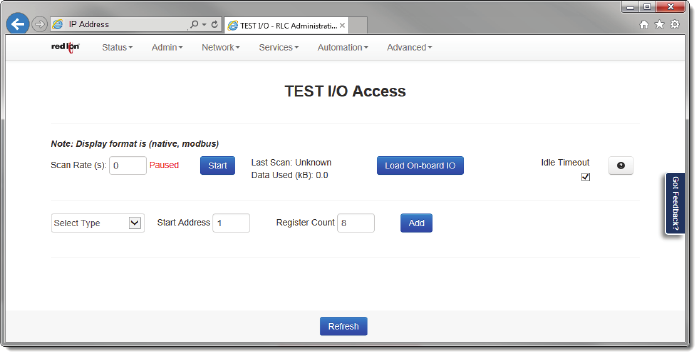

TestI/OisusedtoverifythefunctionalityofI/Ostatesingateways,RTUsandI/Omodules.
