Automation Tab

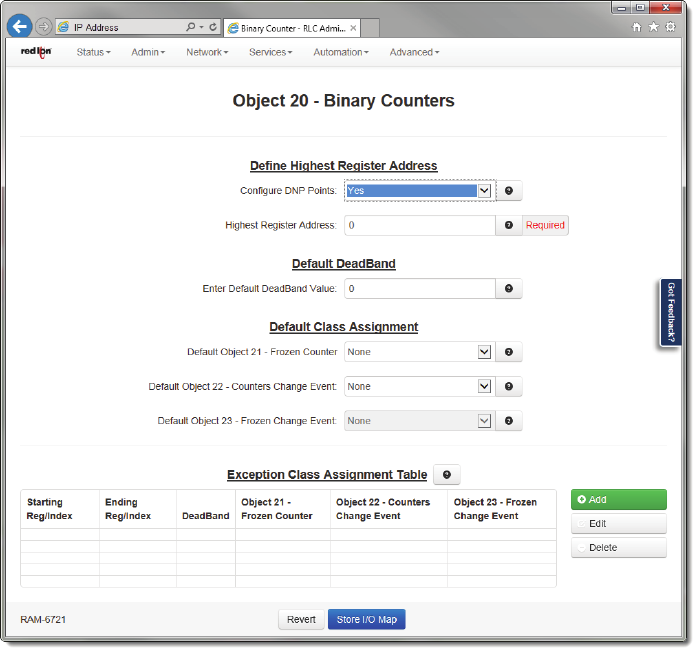

ConfigureDNPPoints:IfoptionissettoNo,thennoBinaryCountersaremappedasDNPpoints.IfsettoYes,the
HighestRegisterAddressfieldisshowntoenteraHighestRegisterAddressvalue.
HighestRegisterAddress(Required):Thisfieldisusedtoshoworsetthehighestregister
addresstomapDNPpoints.
EnterDefaultDeadBandValue:ValuesoutsidethisDeadBandgenerateevents.TheDeadBandparametersetshow
eventdataisgeneratedbyyourmoduleasaDNPslavedevice.
Forexample:TheAnalogInputDeadBandbeingsettoavalueof1000willreportallofthepointsasbeingclass3data(asset
bythe“AnalogInputClass”parameterbeingsetto3)anditwillgenerateaneventeverytimeananaloginputchangesbya
value
of1000ormore.ThisAnalogInputdead bandcanbesettoanyvaluebetween0to32767(generateanevent
DefaultObject21‐FrozenCounter:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifaDNP
pointwillgenerateevents.IncaseaDNPpointgenerate sevents(Object2BinaryChangeEvents)thenitshouldbe
associatedtoaclass(Class1,Class2or
Class3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNPPoints
don’tgenerateevents,thisfeatureshouldbemodifiedbytheuser.
DefaultObject22‐CountersChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifa
DNPpointwillgenerate
events.IncaseaDNPpointgeneratesevents(Object2BinaryChangeEvents)thenitshould
beassociatedtoaclass(Class1,Class2orClass3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNP
Pointsdon’tgenerateevents,thisfeatureshouldbemodifiedbythe
user.
DefaultObject23‐FrozenChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifa
DNPpointwillgenerateevents.IncaseaDNPpointgenerat esevents(Object2BinaryChangeEvents)thenitshould
beassociatedtoaclass(Class1,Class
2orClass3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNP
Pointsdon’tgenerateevents,thisfeatureshouldbemodifiedbytheuser.
