Automation Tab
Object32‐AnalogChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifaDNPpoint
willgenerateevents.IncaseaDNPpointgeneratesevents(Object2BinaryChangeEvents)thenitshouldbeassoci‐
atedtoaclass(Class1,Class2
orClass3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNPPointsdon't’
generateevents,thisfeatureshouldbemodifiedbytheuser.
Object33‐FrozenChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifaDNPpoint
willgenerate
events.IncaseaDNPpointgeneratesevents(Object2BinaryChangeEvents)thenitshouldbeassoci‐
atedtoaclass(Class1,Class2orClass3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNPPointsdon't’
generateevents,thisfeatureshouldbemodifiedby
theuser.
• ClickFinishtoenteryourexceptionintothetable.
• Toeditanentry,selectthestationinthetableandclickontheeditbutton.Todeleteanexistingentry,selectthe
stationinthetableandclickontheDeletebutton.
• ClickonStoreI/OMappingto
saveyourconfigurationbeforemovingtothenextproject.ClickontheObjectMap‐
pingbuttontoreturntotheDNP3ObjectMappin g Configurationdialogwindow.

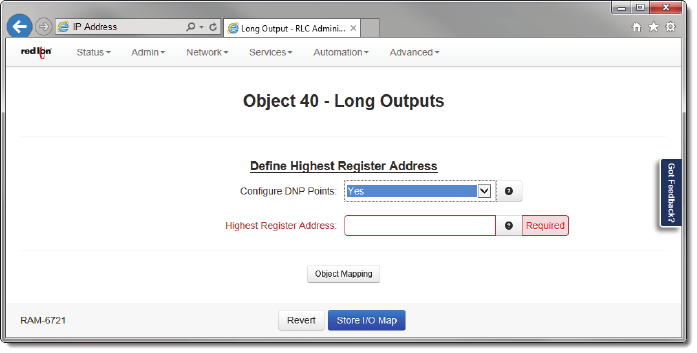

LongOutputsMapI/O:
ConfigureDNPPoints:IfoptionissettoNo,thennoLongOutputsaremappedasDNPpoints.IfsettoYes,theHighest
RegisterAddressfieldisshowntonenteraHighestregisterAddressvalue.
HighestRegisterAddress(Required):Thisfieldisusedtoshoworsetthehighestregister
addresstomapDNPpoints.
• ClickonStoreI/OMappingtosaveyourconfigurationbeforemovingtothenextproject.ClickontheObjectMap‐
pingbuttontoreturntotheDNP3ObjectMappin g Configurationdialogwindow.
BinaryCountersMapI/O:ThisoptionprovidesconfigurationofMappingBinaryCountersI/O’sReg/Indexto
DNPpointsforgeneratingeventsbasedonconfiguredDeadBandandClassAssignmentswhenthestatusofany
BinaryCounterI/O’schanges.DeadBandandClassAssignmentsareappliedtoalltheReg/Indexdefinedby
HighestRegisterAddressexceptReg/IndexentriesthataredefinedinExceptionDeadBandandClassAssign‐
mentsTable.
