Manual

Software User Guide 139
Automation Tab

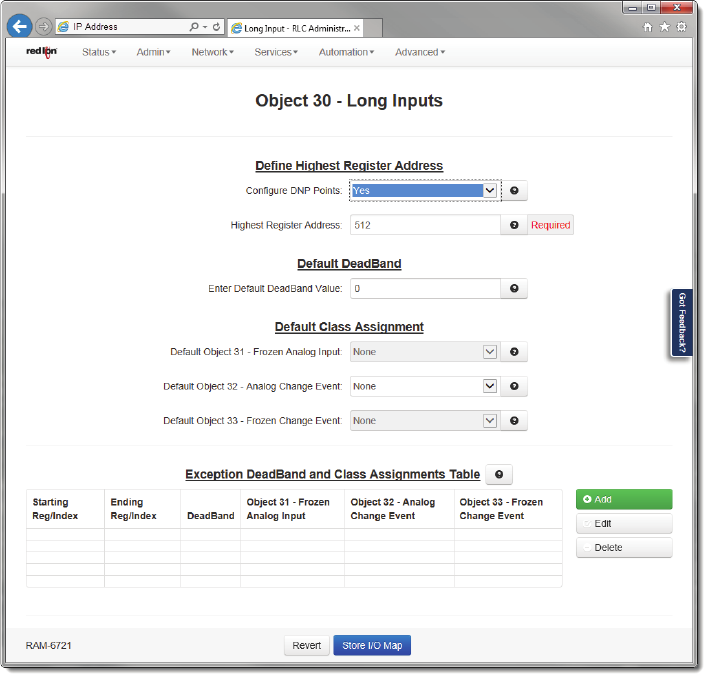

ConfigureDNPPoints:IfsettoNo,thennoBinaryInputsaremappedasDNPpoints.IfsettoYes,theHighestRegister
AddressfieldisshowntoenteraHighestRegisterAddressvalue.
HighestRegisterAddress(Required):Thisfieldisusedtoshoworsetthehighestregisteraddressto
mapDNPpoints.
EnterDefaultDeadBandValue:ValuesoutsidethisDeadBandgenerateevents.TheDeadBandparametersetshow
eventdataisgeneratedbyyourmoduleasaDNPslavedevice.
Forexample:TheAnalogInputDeadBandbeingsettoavalueof1000willreportallofthepointsasbeingclass3data(asset
bythe“AnalogInputclass”parameterbeingsetto3)anditwillgenerateaneventeverytimeananaloginputchangesbya
value
of1000ormore.ThisAnalogInputdeadbandcanbesettoanyvaluebetween0to32767(generateaneventwhenthe
valuechangesby32767).
DefaultObject31‐FrozenAnalogInput:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifaDNP
pointwillgenerateevents.IncaseaDNPpointgenerate sevents(Object2BinaryChangeEvents)thenitshouldbe
associatedtoaclass(Class1,Class2
orClass3),other w iseit shouldbeassociatedtoNone.BydefaultallDNPPoints
don’tgenerateevents,thisfeatureshouldbemodifiedbytheuser.
DefaultObject32‐AnalogChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifa
DNPpointwill
generateevents.IncaseaDNPpointgeneratesevents(Object2BinaryChangeEvents)thenitshould
beassociatedtoaclass(Class1,Class2orClass3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNP
Pointsdon’tgenerateevents,thisfeatureshouldbemodifiedby
theuser.
DefaultObject33‐FrozenChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifa
DNPpointwillgenerateevents.IncaseaDNPpointgenerat esevents(Object2BinaryChangeEvents)thenitshould
