Automation Tab
• ClickonStoreI/OMappingtosaveyourconfigurationbeforemovingtothenextproject.ClickontheObjectMap‐
pingbuttontoreturntotheDNP3ObjectMappin g Configurationdialogwindow.

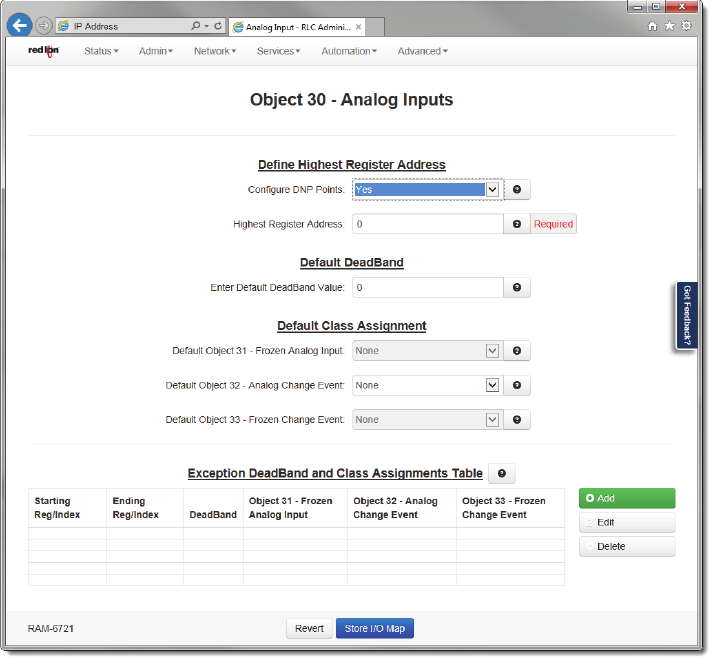

AnalogInputsMapI/O:ThissectionprovidesconfigurationofMappingAnalogInputI/O’sReg/IndextoDNP
pointsforgeneratingeventsbasedonconfiguredDeadBandandClassAssignmentswhenthestatusofanyAna‐
logInputI/O’schanges.
DefaultDeadBandandClassAssignmentsareappliedtoalltheReg/IndexdefinedbyHighestRegisterAddressexceptReg/
IndexentriesthataredefinedinExceptionDeadBandandClassAssignmentsTable.
ConfigureDNPPoints:IfoptionissettoNo,thennoAnalogInputsaremappedasDNPpoints.IfsettoYes,
theHigh‐
estRegisterAddressfieldisshowntoenteraHighestRegisterAddressvalue.
HighestRegisterAddress(Required):ThisfieldisusedtoshoworsetthehighestregisteraddresstomapDNPpoints.
EnterDefaultDeadbandValue:Valuesoutsidethisdeadbandgenerateevents.Thedeadbandparametersetshow
even
dataisgeneratedbyyourmoduleasaDNPslavedevice.
Forexample,theAnalogInputdeadbandbeingsettoavalueof1000willreportallofthepointsasbeingclass3data
(assetbythe“AnalogInputClass”parameterbeingsetto3)anditwillgenerate
aneventeverytimeananaloginput
changesbyavalueof1000ormore.ThisAnalogInputdeadbandcanbesettoanyvaluebetween0to32767(gener‐
ateaneventwhenthevaluechangesby32767).
DefaultObject31‐FrozenAnalogInput:Thisfieldisactivatedonboth
Levels2and2+.It’susedtodetermineifaDNP
pointwillgenerateevents.IncaseaDNPpointgenerate sevents(Object2BinaryChangeEvents)thenitshouldbe
