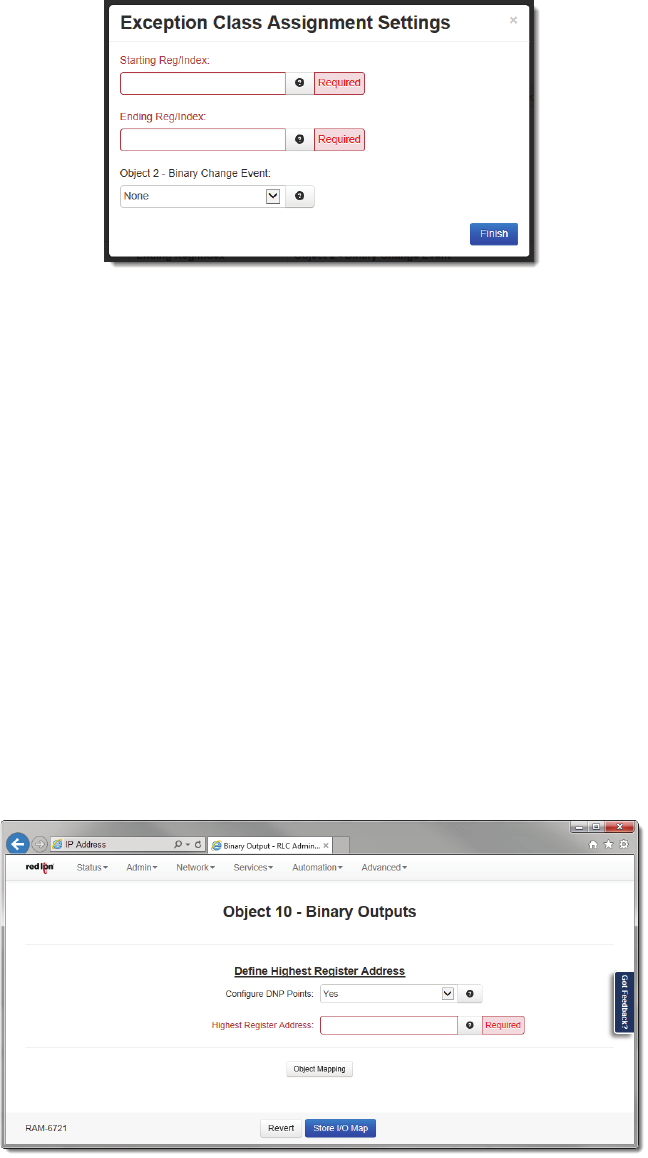

StartingReg/Index(Required):Ent ertheStartingRegisterforexceptionclassassignments.Thevalidrangesare0to
yourconfiguredhighestregister,andmustbelessthanorequaltoEndingRegister.
EndingRegister(Required):EntertheEndingRegisterforexceptionclassassignments.Thevalidrangesare0toyour
configuredhighest
register,andmustbegreaterthanorequaltoStartingRegister.
Object2‐BinaryChangeEvent:ThisfieldisactivatedonbothLevels2and2+.It’susedtodetermineifaDNPpoint
willgenerateevents.IncaseaDNPpointgeneratesevents(Object2BinaryChangeEvents)thenitshould
beassoci‐
atedtoaclass(Class1,Class2orClass3),otherwiseitshouldbeassociatedtoNone.BydefaultallDNPPointsdon’t
generateevents,thisfeatureshouldbemodifiedbytheuser.
• ClickFinishtoenteryourexclusionintothetable.
• Toeditanentry,selectthe
stationinthetableandclickontheeditbutton.Todeleteanexistingentry,selectthe
stationinthetableandclickontheDeletebutton.
• ClickonStoreI/OMappingtosaveyourconfigurationbeforemovingtothenextproject.ClickontheObjectMap‐
pingbuttonto
returntotheDNP3ObjectMappingConfigurationdialogwindow.
BinaryOutputsMapI/O:
ConfigureDNPPoints:IfoptionisNo,thennoBinaryOutputsaremappedasDNPpoints.
HighestRegisterAddress(Required):ThisfieldisusedtoshoworsetthehighestregisteraddresstomapDNPpoints.
IfConfigureDNPPointsoptionissettoYes,theHighestRegisterAddressfieldis
showntoenteraHighestRegister
Addressvalue.
