Automation Tab
EnableApplicationLayerConfirmation:TheDNPV3.00SlaveDrivercanbeconfiguredtoretryunconfirmedapplica‐
tionlinkprimaryframes.Thenumberofretriesthedriversendsandtheretrytimeoutareconfigurable.Thisserviceis
disabledunlessApplicationLinkConfirmationscheckboxisselected.
ApplicationLayerRetries:ThenumberofRetriesisconfigurablebetween0(ApplicationLinkRetriesdisabled)and255.
ApplicationLayerTimeouts(ms):TheRetryTimeoutisconfigurablebetween0(ApplicationLinkRetriesdisabled)and
5,000ms
UsedifferentSEQnumbersforCONFIRMandRESPONSE:Checktoenable
• Clickonthe“Save”buttontosaveyourconfiguration.The“Apply”buttonwillsaveyoursettingsandapplythem
immediately.Toreverttothepreviousdefaults,clickonthe“Revert”button.

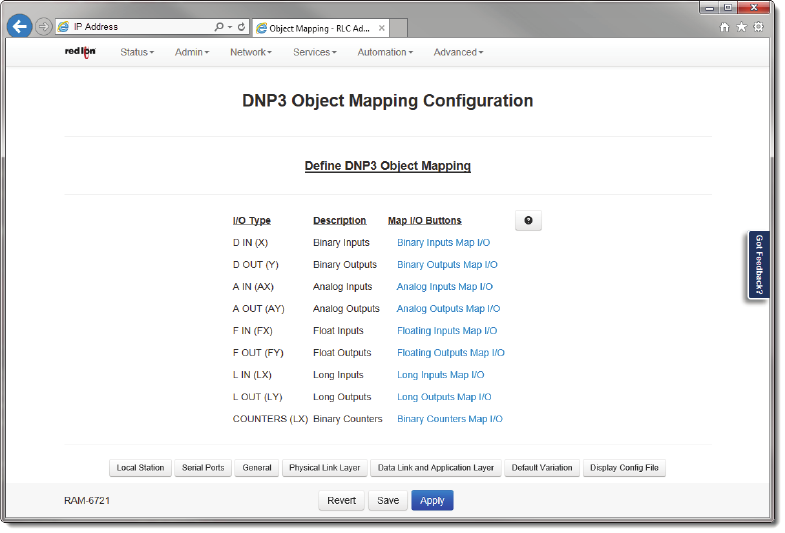

3.6.4.4 ObjectMapping
ObjectMapping:Whenclickingoneachlinkadialogwindowappears.Thedialogwindowisusedtoconfigureand
mapeveryDNPpointtoaspecificI/O.Note:EachtypeofI/OmusthaveitscorrespondingObjectMappingWindow
openedatleastonce,orelsetheI/Owon’tbemapped.
