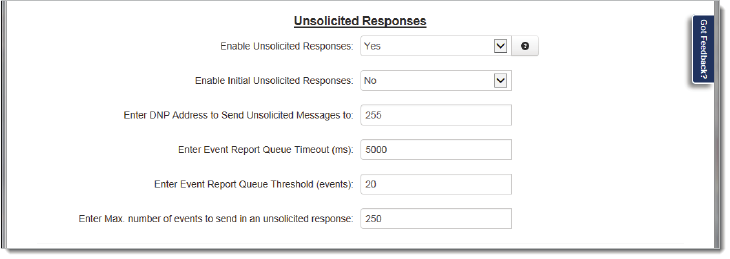

EnableUnsolicitedResponses:SelectiftheDNPSlaveshouldsendunsolicitedmessagestotheDNPMaster.Ifthis
selectionischecked,thentheusershouldalsoconfigurethefollowing:
DNPAddresstoSendUnsolicitedMessagesto:TheaddressofthestationtowhichDNPSlavewillsendunsolicitedmes‐
sagesintheDNPAddresstoSendUnsolicitedMessagesfield.
EventReportQueueTimeout(ms):Theamountoftimeinmillisecondsanyeventwillbeallowedtoremainintheevent
queuebeforebei ngreportedintheEventReportQueueTimeoutfield.Minimumvalue:1,000ms(1second),maximum
value:3,600,00 0ms(1hour).
EventReportQueueThreshold(events):Theminimumnumberofeventsintheeventqueuerequiredtotriggerthegen‐
erationofanunsolicitedevenreportmessageinthe
EventReportQueueThresholdfield.
Max.numberofeventstosendinanunsolicitedresponse:Themaximumnumberofeventstosendineveryunsolicited
message.
Note:Whenplan ningonusingunsolicitedresponses,theremustbeatleastoneDNPobjectconfiguredtogenerate
eventsonanyofthethreeDNPev ent
classes,orelse,noeventswillbegeneratedandthusnounsolicitedresponsesatall
willbegeneratedbythestation.
EnableAutoDetectionRate:Checkthisboxtoautomaticallysetthedetectionrate.
EnableMax.timeeventsinqueueafterdisconnect(TCPServeronly):Clicktoenable.
EnableRealTimeDataTrace:TheDNPV3.00SlaveDrivercanbeconfiguredtogenerat erealtimetracesofeveryMas‐
ter‐SlaveDNPV3.00
transactionfordiagnosisanddebuggingpurposes.Therealtimecommunicationdatatracescan
beenabled/disabledatanytimefromtheDNPconfigurationAdd‐OnanditsASCIIoutputcanberedirectedeithertoa
textfilewithinthefilesystemforlaterupload,toadumbterminalattachedtoan
unassignedserialportofthestation,
oreventoaremoteTelnetterminalsessionovertheTCP /IPnetworkbyenteringthecorresponding/dev/ttyp(/dev/
ttyp0to/dev/ttyp3)telnetdevice.
TimeSynchronization:ThestationcanbeconfiguredtorequestTimeSynchronizationfromtheDNPV3.00Master.
Requestscanbeconfiguredtobemade
atintervalsofonceperminute,onceperhour,onceperdayornever.
• Clickonthe“Save”buttontosaveyourconfiguration.The“Apply”buttonwillsaveyoursettingsandapplythem
immediately.Toreverttothepreviousdefaults,clickonthe“Revert”button.
(NavigationbuttonsacrossthebottomoftheDNP3screenmatchtheselectionsmadefromthedropdowntabmenu.)
