Software User Guide 124

Automation Tab

3.6.3.3 Forwards

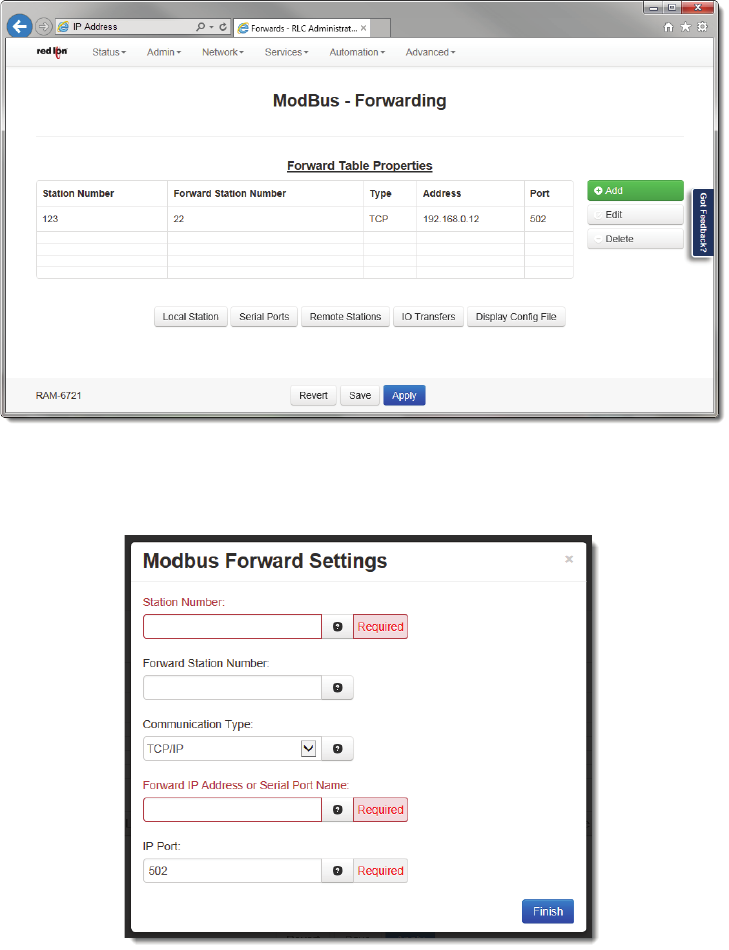

• ClickontheForwardingmenuitemandthefollowingdialogwindowwillappear:

• ClickontheAddbuttontoconfiguretheForwardingandthefollowingpop‐upwindowwi llappear:

StationNumber(Required):Stationnumbertobeforwarded.Validvaluesare1‐247.

ForwardStationNumber:Ifsupplied,replacesthestation

numberintherequestwiththisvalue.Validvaluesare1‐

247.

CommunicationType:Selecttheforwardingmethod.ValidoptionsareTCP/IP,UDP/IPorSerial(Serialtypecanbeset

innextdialog).

ForwardIPAddressorSerialPortName:Theaddresstoforwardthemodbusrequestif forwardingonwith

IP,orthe

serialdevicenameifforwardingtherequestontheserialport.
